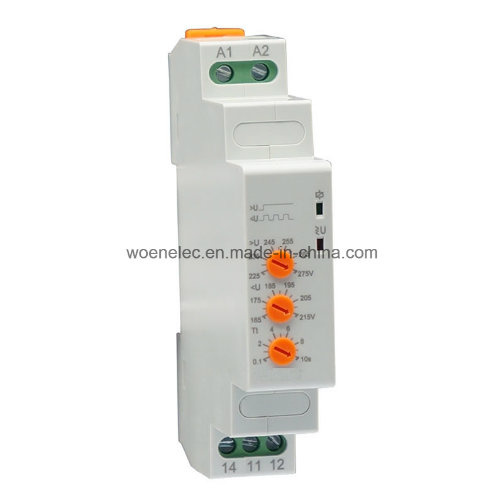

Single Phase Overvoltage/Undervoltage Relay

Name: Single Phase Overvoltage/Undervoltage Relay
Brand: all-electronics-online.com
SKU: 714049842
Availability: InStock
Rating: 4.6 (74 reviews)

Price:	US $ 7.5/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	SR-MV13

Product Description

Introduction
The relay is used to protect different types of electrical machines and equipments especially the electrical motors against the harm caused by high and low voltage

Features
1. Microprocessor control technology
2. One modules, 18mm wide
3. Supply voltage measurement(True RMS)
4. Overvoltage and undervoltage
5. Threshold value and delay adjustment by knobs
6. LED indication for power supply and relay status
7. Din-rail mounting

Technical data

Supply terminals	A1,A2
Rated supply voltage	AC 220V
Voltage operation range	AC 150-275V
Umax setting	AC 225-275V
Umin setting	AC 165-215V
Trip delay	0.1-10s
Measurement error	1%
Insulation voltage	250V
Hysteresis	3%
Output contact	1NO/NC
Current rating	10A/250V
Mechanical life	10000000
Electrical life	1000000
Protection degree	IP20
Pollution degree	3
Altitude	≤2000m
Mounting	TH-35 Rail

Founded by engineers who worked in the field of electronic, mechanical and industrial design for over 10 several years, Reletek is a professional manufacturer of electronic modular devices, which bring new possibilities for home and office controlling, monitoring and security, as well as for industrial process control.

Development and modern technology are the pillars of our work, which is highly appreciated by our customers, because all products and services can be customized according to individual requirements - you get not just a product, but a long-term solution.

Thanks to high quality production and service on customers, Reletek had partners from Spain, Australia, Russia, Ukraine, Algeria and Egypt etc.
