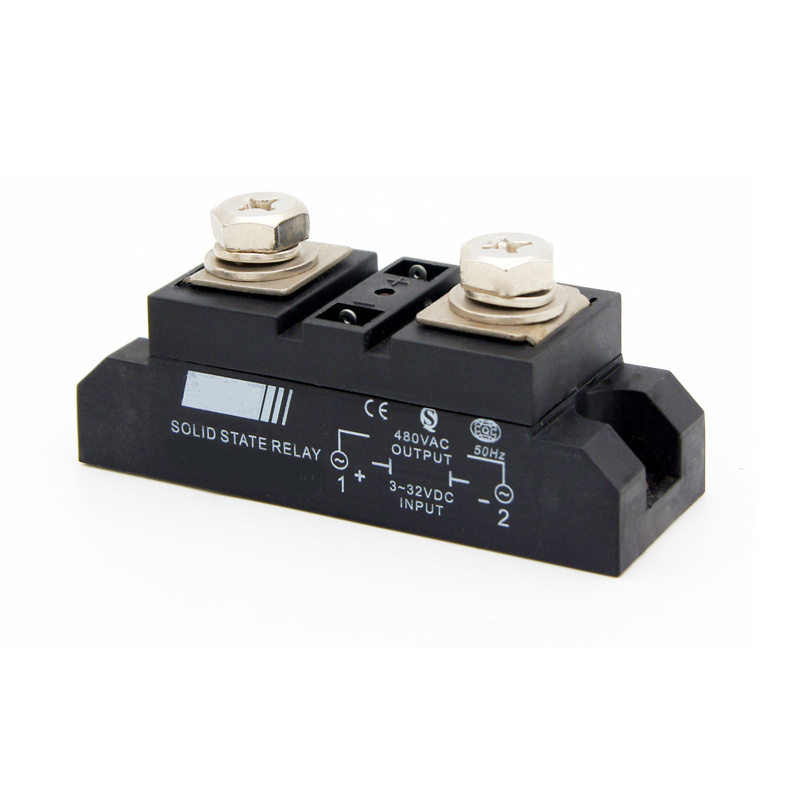

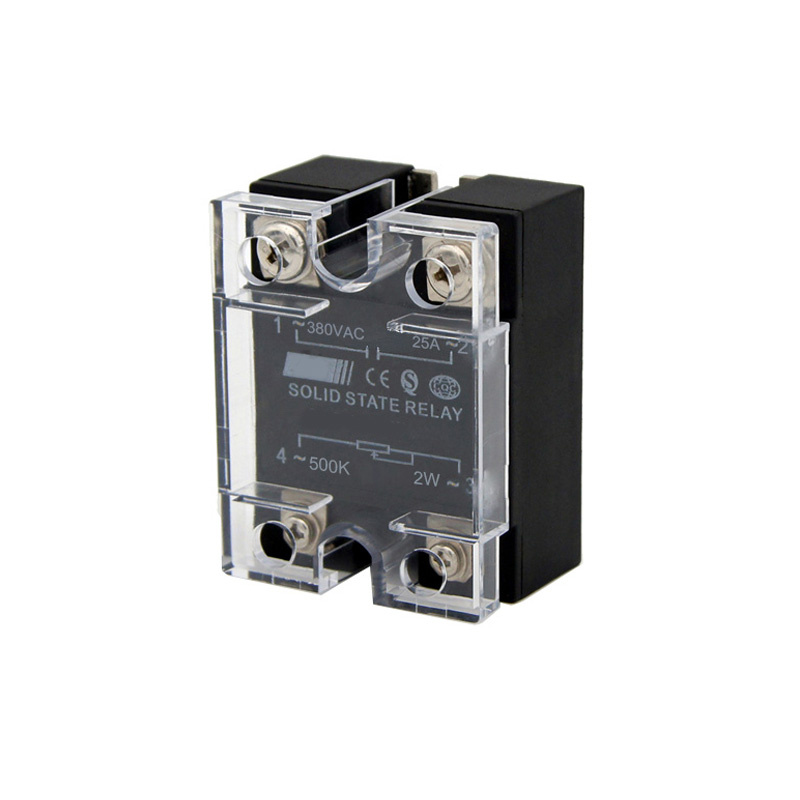

Name: Single Phase Solid State Relays Hdh10-120A
Brand: all-electronics-online.com
SKU: 835738085
Availability: InStock
Rating: 4.8 (139 reviews)

Price:	US $ 1/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	HDH10-120A
Rated Voltage:	240V or 480V
Input Voltage:	4 to 16 VDC,3 to 32 VDC or 90 to 250 VAC
Control:	Zero Control Random Control

Product Description

Solid state relays (triacs output)

Series HDH Solid State Relays are AC relays,Triac Output. The triac version of the zero switching relay is an inexpensive solution for resistive loads. The zero switching relay switches on when the AC sine voltage just crosses zero,and switches off when the current crosses zero.

Features

Rated operational current 10 to 40 Amps.

Rated operational voltage 240V or 440 V.

Input Voltage Range 4 to 16 Vdc,3 to 32 Vdc or 90 to 250 Vac.

4000 Vrms Optical Isolation.(input/output)

Both "Zero Voltage" & phase controllable "Random Switching" versions.

LED-indication for control input.

Symbol	Meaning
HDH	Company
D	Single phase
*	10-10A, 25-25A, 40-40A
*	24-240V,48-480V
*	Z-zero control, R-random control
*	D1-4-16Vdc, D3-3-32Vdc, A2-90-250Vac
For example:	HDH4048ZD3, single phase, 40A,480Vac,3-32Vdc control

Voltage	Control voltage	Rated operational current
		10 Amp	15 Amp	25 Amp	40 Amp	60 Amp	80 Amp	100 Amp	120 Amp
280VAC "Zero Voltage"	4 to 16 Vdc	HDH1028ZD1	HDH1528ZD1	HDH2528ZD1	HDH4028ZD1	HDH6028RD1	HDH8028RD1	HDH10028RD1	HDH12028RD1
	3 to 32 Vdc	HDH1028ZD3	HDH1528ZD3	HDH2528ZD3	HDH4028ZD3	HDH6028RD3	HDH8028RD3	HDH10028RD3	HDH12028RD3
	90 to 280Vac	HDH1028ZA4	HDH1528ZA4	HDH2528ZA4	HDH4028ZA4	HDH6028RA4	HDH8028RA4	HDH10028RA4	HDH12028RA4
480VAC "Zero Voltage"	4 to 16 Vdc	HDH1048ZD1	HDH1548ZD1	HDH2548ZD1	HDH4048ZD1	HDH6048RD1	HDH8048RD1	HDH10048RD1	HDH12048RD1
	3 to 32 Vdc	HDH1048ZD3	HDH1548ZD3	HDH2548ZD3	HDH4048ZD3	HDH6048RD3	HDH8048RD3	HDH10048RD3	HDH12048RD3
	90 to 280Vac	HDH1048ZA4	HDH1548ZA4	HDH2548ZA4	HDH4048ZA4	HDH6048RA4	HDH8048RA4	HDH10048RA4	HDH12048RA4
Outline		D-1,6,7	D-1,6,7	D-1,6,7	D-1,6,7	D-1,6,7	D-1,6,7	D-1,6,7	D-1,2,6,7

HDH 10 to 120A Single Phase SSR
Selection Guide

Voltage	Control voltage	Rated operational current
		10 Amp	25 Amp	40 Amp	60 Amp	80 Amp	100 Amp	120 Amp	150 Amp
280VAC "Zero Voltage"	4 to 16 Vdc	HDH1028ZD1B	HDH2528ZD1B	HDH4028ZD1B	HDH6028ZD1B	HDH8028ZD1B	HDH10028ZD1B	HDH12028ZD1B	HDH15028ZD1B
280VAC "Zero Voltage"	3 to 32 Vdc	HDH1028ZD3B	HDH2528ZD3B	HDH4028ZD3B	HDH6028ZD3B	HDH8028ZD2B	HDH10028ZD3B	HDH12028ZD3B	HDH15028ZD1B
280VAC "Random Swithing"	4 to 16 Vdc	HDH1028RD1B	HDH2528RD1B	HDH4028RD1B	HDH6028RD1B	HDH8028RD1B	HDH10028RD1B	HDH12028RD1B	HDH15028RD1B
280VAC "Random Swithing"	3 to 32 Vdc	HDH1028RD3B	HDH2528RD3B	HDH4028RD3B	HDH6028RD3B	HDH8028RD3B	HDH10028RD3B	HDH12028RD3B	HDH15028RD3B
480VAC "Zero Voltage"	4 to 16 Vdc	HDH1048ZD1B	HDH2548ZD1B	HDH4048ZD1B	HDH6048ZD1B	HDH8048ZD1B	HDH10048ZD1B	HDH12048ZD1B	HDH15048ZD1B
480VAC "Zero Voltage"	3 to 32 Vdc	HDH1048ZD3B	HDH2548ZD3B	HDH4048ZD3B	HDH6048ZD3B	HDH8048ZD3B	HDH10048ZD3B	HDH12048ZD3B	HDH15048ZD1B
480VAC "Random Swithing"	4 to 16 Vdc	HDH1048RD1	HDH2548RD1B	HDH4048RD1B	HDH6048RD1B	HDH8048RD1B	HDH10048RD1B	HDH12048RD1B	HDH15048RD1B
480VAC "Random Swithing"	3 to 32 Vdc	HDH1048RD1	HDH2548RD3B	HDH4048RD3B	HDH6048RD3B	HDH8048RD3B	HDH10048RD3B	HDH12048RD3B	HDH15048RD3B
Outline		D-1,6,7	D-1,6,7	D-1,6,7	D-1,6,7	D-1,6,7	D-1,6,7	D-1,2,6,7	D-1,2,6,7

HDH are power line relays allowing 10~120 Amps.switching power,with Voltage ratings from 280 to 480VAC.
Features
· High performance / low cost circuit design
· Logic compatible current regulated input
· 2500 Vrms optical isolation
· Both "Zero Voltage" & phase controllable "Random Switching" versions
· High voltage (1200 Vpk)versions for 480 Vrms service
· LED-indicaton for control input
· Control voltage range: 4 to 16 Vdc,3 to 32 Vdc or 90 to 280Vac

Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
