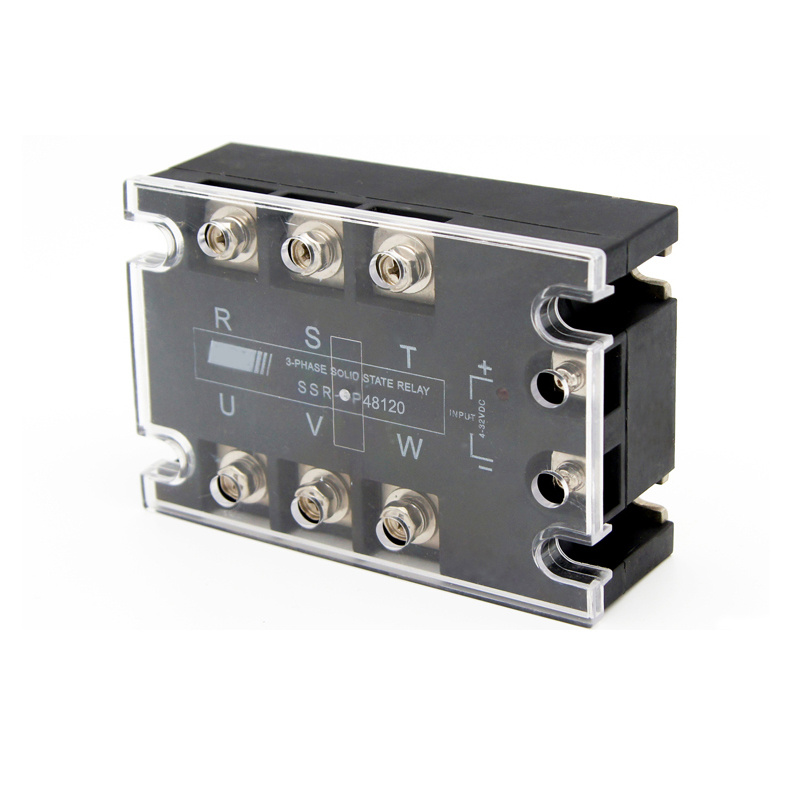

Three Phase Solid State Relays Hth10-300A

Name: Three Phase Solid State Relays Hth10-300A
Brand: all-electronics-online.com
SKU: 835743515
Availability: InStock
Rating: 4.8 (66 reviews)

Price:	US $ 1/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	HTH10-300A
Rated Voltage:	440V or 580V
Input Voltage:	4 to 16 VDC,3 to 32 VDC
Control:	Zero Control Random Control

Product Description

3 phase solid state relays (SCR output 10A to 40A)
HTH
series three phase Solid State Relays is used three phase loads. triacs output. HTH series is Dual triacs Power Hybrid technology provides highly efficient thermal management for greatly increased cyclic life.

Feature:
- Rated operational current 3X10, 3X15, 3X25, 3X40A.
- Both "Zero Voltage" & phase controllable "Random Switching" versions.
- Input Voltage Range 4 to 16 Vdc, 3 to 32 Vdc.
- 2500 Vrms Optical Isolation.(input/output)

- LED-indication for control input.

Symbol	Meaning
H	Company
T	Three phase
*	10-10A, 15-15A, 25-25A, 40-40A
*	44-440V
*	Z-zero control, R-random control
*	D1-4-16Vdc, D3-3-32Vdc
For example:	GT4048ZD3, 3 phase, 40A, 480Vac, 3-32Vdc control

Voltage	Control voltage	Rated operational current
		10 Amp	25 Amp	40 Amp	60 Amp	80 Amp	100 Amp	120 Amp	150 Amp	200 Amp	300 Amp
480VAC "Zero Voltage"	4 to 16 Vdc	HTH1048ZD1	HTH2548ZD1	HTH4048ZD1	HTH6048ZD1	HTH8048ZD1	HTH10048ZD1	HTH12048ZD1	HTH15048ZD1	HTH1048ZD1	HTH1048ZD1
	3 to 32 Vdc	HTH1048ZD3	HTH2548ZD3	HTH4048ZD3	HTH6048ZD3	HTH8048ZD3	HTH10048ZD3	HTH12048ZD3	HTH15048ZD3	HTH1048ZD3	HTH1048ZD3
	90 to 280 Vac	HTH1048ZA4	HTH2548ZA4	HTH4048ZA4	HTH6048ZA4	HTH8048ZA4	HTH10048ZA4	HTH12048ZA4	HTH15048ZA4	HTH1048ZA4	HTH1048ZA4
530VAC "Zero Voltage"	4 to 16 Vdc	HTH1053ZD1	HTH2553ZD1	HTH4053ZD1	HTH6053ZD1	HTH8053ZD1	HTH10053ZD1	HTH12053ZD1	HTH15053ZD1	HTH1053ZD1	HTH1053ZD1
	3 to 32 Vdc	HTH1053ZD3	HTH2553ZD3	HTH4053ZD3	HTH6053ZD3	HTH8053ZD3	HTH10053ZD3	HTH12053ZD3	HTH15053ZD3	HTH1053ZD3	HTH1053ZD3
	90 to 280 Vac	HTH1053ZA4	HTH2553ZA4	HTH4053ZA4	HTH6053ZA4	HTH8053ZA4	HTH10053ZA4	HTH12053ZA4	HTH15053ZA4	HTH1053ZA4	HTH1053ZA4
480VAC "Random"	4 to 16 Vdc	HTH1048RD1	HTH2548RD1	HTH4048RD1	HTH6048RD1	HTH8048RD1	HTH10048RD1	HTH12048RD1	HTH15048RD1	HTH1048RD1	HTH1048RD1
	3 to 32 Vdc	HTH1048RD3	HTH2548RD3	HTH4048RD3	HTH6048RD3	HTH8048RD3	HTH10048RD3	HTH12048RD3	HTH15048RD3	HTH1048RD3	HTH1048RD3
	90 to 280 Vac	HTH1048RA4	HTH2548RA4	HTH4048RA4	HTH6048RA4	HTH8048RA4	HTH10048RA4	HTH12048RA4	HTH15048RA4	HTH1048RA4	HTH1048RA4
530VAC "Random"	4 to 16 Vdc	HTH1053RD1	HTH2553RD1	HTH4053RD1	HTH6053RD1	HTH8053RD1	HTH10053RD1	HTH12053RD1	HTH15053RD1	HTH1053RD1	HTH1053RD1
	3 to 32 Vdc	HTH1053RD3	HTH2553RD3	HTH4053RD3	HTH6053RD3	HTH8053RD3	HTH10053RD3	HTH12053RD3	HTH15053RD3	HTH1053RD3	HTH1053RD3
	90 to 280 Vac	HTH1053RA4	HTH2553RA4	HTH4053RA4	HTH6053RA4	HTH8053RA4	HTH10053RA4	HTH12053RA4	HTH15053RA4	HTH1053RA4	HTH1053RA4

HTH series three phase Solid State Relays is used three phase loads,SCR Output. HTH series is Dual SCR Power Hybrid technology provides efficient thermal management for greatly increased cyclic life.
Feature
· Rated operational current 3 × 10,3 × 15,3 × 25,3 × 40,3 × 40,3 × 60,3 × 80,3 × 100 and 3 × 120Amps.
· High voltage (1400Vpk) versions for 530 Vrms service.2500 Vrms Optical Isolation.(input/output)
· Both "Zero Voltage" & phase controllable "Random Switching" versions
· Intput Voltage Range 4 to 16 Vdc,3 to 32 Vdc,90 to 280Vac.
· LED-indication for control input.
