Single Phase Toroidal Current Transformer

Name: Single Phase Toroidal Current Transformer
Brand: all-electronics-online.com
SKU: 704857105
Availability: InStock
Rating: 4.7 (72 reviews)

Price:	US $ 1.49-1.67/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MSQ-60
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output:	Analog Sensor
Primary Current:	5A~5000A
Theory:	Shock Sensor
Class:	0.5/1.0
Type:	Current Transformer

Product Description

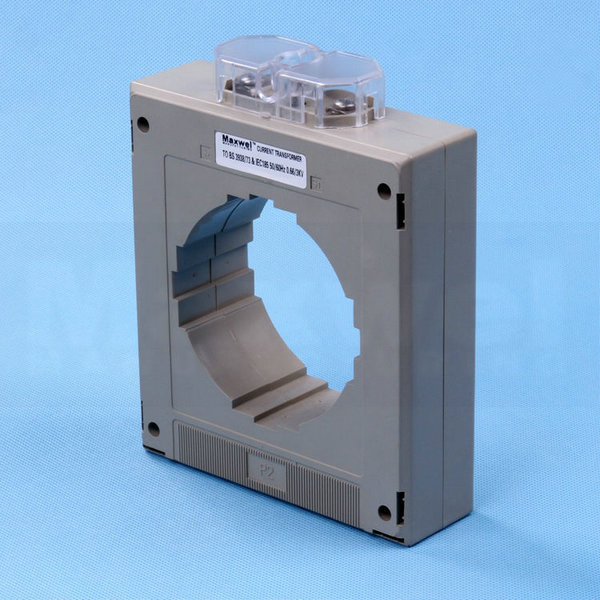

Window type current transformer MSQ-60

Description of MSQ current transformers:
Can be applied to test, control display and record the running of the electrical equipment
Protects the equipment against the damage in the AC circuit with the rated voltage value below 720V and the frequency of 50 to 60Hz
Can also be applied to form complete set of mine transformer
Comply with VDE 0414, BS7626 and IEC 44-1 standards
Sell very well in Greece,Italy,Russian,South African,Egypt etc.
Specification:

Primary current: 5A-5000A

Secondary current: 5A,1A

Standard appoval: VDE0414,BS7626,IEC44-1

Maximum voltage: 720V/AC

Freguency :50-60HZ

Rate load: 5VA-10VA

Class:0.5,1.0

Rated security coefficient: FS<5

Current Transformers Data Sheet

Type	Rated current (A)	Rated power (VA)		Weight (kg)
Type	Rated current (A)	Class: 0.5	Class: 1	Weight (kg)
MSQ-60	250/5	5	5	0.6
	300/5	5	5	0.6
	400/5	5-10	5-10	0.6
	500/5	5-10	5-10	0.6
	600/5	10-15	5-10	0.6
	750/5	10-15	10-15	0.6
	800/5	10-15	10-15	0.6
	1000/5	15	15	0.6

Product Details:

FAQ
1: When to get the price?
A: We usually quote within 24 hours after getting your inquiry.
if you are very urgent to get the price, please contact us with emails or calls so that we will regard your inquiry priority.

2: Is sample available and free?
A: Sample is available, but sample should be paid in advance. The cost of sample will be refund after further order.

3. How to pay?
A: T/T will be more appreciated. Parpal or Wester Union
30% deposit before producing, 70% balance before loading by T/T.

4. What is the delivery time?
A: It depends on the order quantity and the season you place the order. Generally, one month after the receipt of the 1st payment.

5. What about the Package?
A: Standard export package and we can make special designed for you if need.
