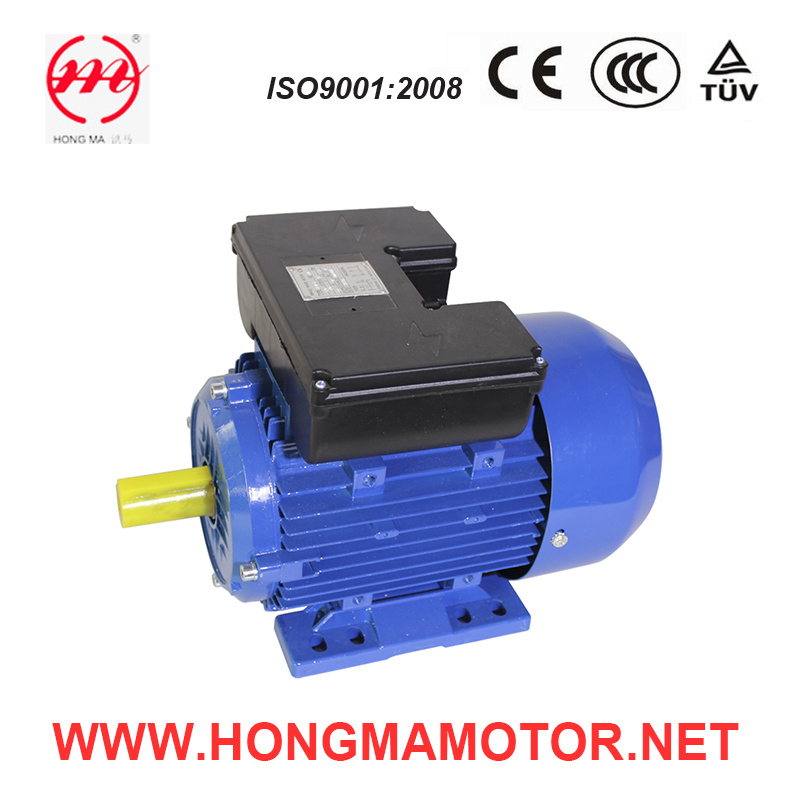

Single Phase Two Value Capacitor Induction Motor
| Price: |
US $ 30-200/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
YL/ML |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frame Size: |
H71-132 |
| Rated Power: |
0.37-5.5kw |
| Rated Voltage: |
220V, 230V, 240V |
| Frequency: |
50Hz, 60Hz |
| Protection Class: |
IP44, IP54, IP55 |
| Insulation Class: |
B\F\H |
| Mounting Type: |
B3, B5, B14, B35multi and Pad Mounting |
| Ambient Temperature: |
-20~+40 °c |
| Altitude: |
≤1000m |
| Efficiency Class: |
Ie1 |
| Application: |
Industrial |
| Operating Speed: |
Constant Speed |
| Number Of Stator: |
Single-Phase |
| Rotor Structure: |
Squirrel-Cage |
| Casing Protection: |
Closed Type |
| Starting Mode: |
y-δ Starting |
| Brand: |
Hongma |
| Species: |
Single Phase |
| Certification: |
CE |
| Number Of Poles: |
2, 4 |
Product Description
Product DescriptionML/YL series aluminum housing single-phase dual-capacitor asynchronous motors, with latest design in entirety, are made of selected quality materials andconforming to the IEC standard. ML motors have good performance, safety and reliable operation, nice appearance and can be maintained very conveniently, while with low noises, little vibration and at the same time of lightweight and simple construction. The compositive performance is good, and the multiple of starting torque is 1.8~2.5.Technical Date | TYPE | POWER | VOLTAGE | FREQUENC | CURRENT | SPEED | EFF | POWER | Ts/Tn |
| KW | V | HZ | A | RPM | % | COSΦ |
|
|
| ML80M1-2 | 0.75 | 220 | 50 | 4.9 | 2800 | 73 | 0.95 | 1.8 |
| ML80M2-2 | 1.1 | 220 | 50 | 7 | 2800 | 75 | 0.95 | 1.8 |
| ML80M1-4 | 0.55 | 220 | 50 | 3.9 | 1400 | 69 | 0.92 | 1.7 |
| ML80M2-4 | 0.75 | 220 | 50 | 5 | 1400 | 71 | 0.95 | 1.7 |
| ML90S-2 | 1.5 | 220 | 50 | 9.1 | 2800 | 76 | 0.98 | 1.8 |
| ML90L-2 | 2.2 | 220 | 50 | 13.2 | 2800 | 77 | 0.98 | 1.7 |
| ML90S-4 | 1.1 | 220 | 50 | 7.2 | 1400 | 73 | 0.95 | 1.7 |
| ML90L-4 | 1.5 | 220 | 50 | 9.6 | 1400 | 75 | 0.95 | 1.7 |
| ML100L-2 | 3 | 220 | 50 | 18.1 | 2800 | 79 | 0.95 | 1.7 |
| ML100L1-4 | 2.2 | 220 | 50 | 13.85 | 1400 | 76 | 0.95 | 1.7 |
| ML100L2-4 | 3 | 220 | 50 | 18.6 | 1400 | 77 | 0.95 | 1.7 |
| ML112M-2 | 3.7 | 220 | 50 | 22.1 | 2800 | 80 | 0.95 | 1.7 |
| ML112M-4 | 3.7 | 220 | 50 | 22.4 | 1400 | 79 | 0.95 | 1.7 |
| ML132S-2 | 5.5 | 220 | 50 | 32.5 | 2800 | 81 | 0.95 | 1.7 |
| ML132S-4 | 5.5 | 220 | 50 | 32.9 | 1400 | 80 | 0.95 | 1.7 |

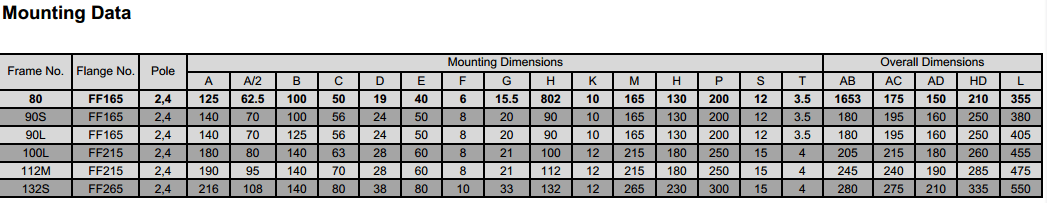

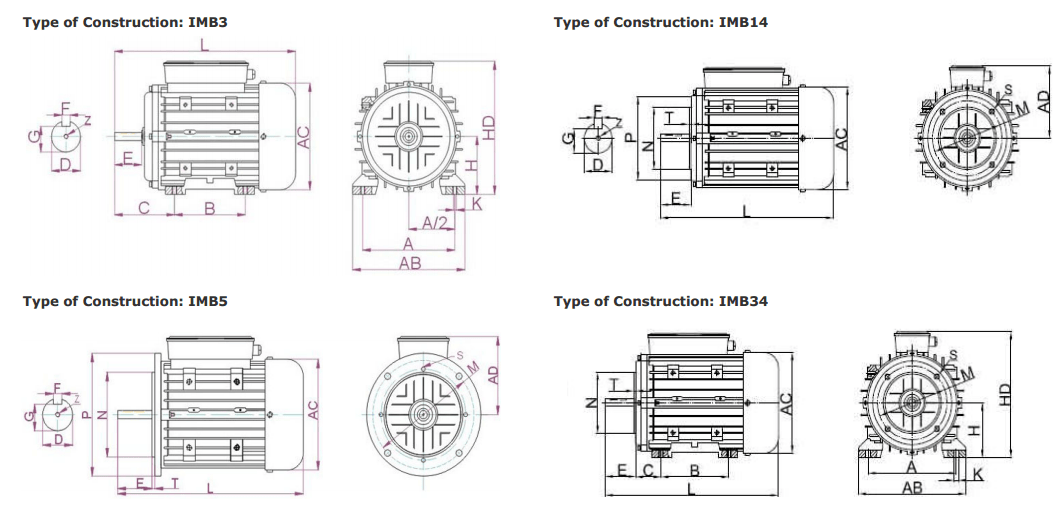

Installation Method & Dimensions
Connection: Power under 3KW selects Star connection;Power up 3KW selects Delta connectionPackage Frame NO. 80--132 :Package by carton box and then packed by wooden box
Frame NO.160 and above:one wooden box per setOur Certifiction
For further informations,pls visit our web page without hesitate!Contact Information:Evan Zhou
Cellphone:0086+15158307112www.hongmamotor.com
Located in Ningbo City, an open seaport of China, we are one of the main manufacturer specialized in the manufacture of small & medium size electrical machinery in China. With a powerful scientific and technical force, advanced developing mode, high efficiency production facilities, complete testing conditions and consummate modernized management system, our company manufacture all the products in conformity with the IEC standards and the products have been reached the advanced level of the same products in the world. It has obtained the quality license for export electrical machinery, the ISO 9001: 2008 Quality Management Certificate, CE conformity and China CCC authentication. What's more, we have obtained direct importing and exporting rights which are approved by Chinese government.
Company's main products are: 1HM Series Three Phase Asynchronous Electric Motor, 2HM Series High Efficiency Electric Motor, 3HM Series Premium Efficiency Electric motor, HM Series Large Power Electric Motor, ML/MU/MY/MB Series Singe Phase Asynchronous Motor, HMD Variable Speed Motor, HMEJ(AC) Series Self-Braking Electric Motor (AC), HMEJ(DC) Series Self-Braking Electric Motor (DC), HMVP Series Integrated Frequency Inverter Motor, ST Series Servo Motor, HMG Series Screw Compressor Motor, HMP Series Pump Motor, GOST R standard Motor and UL NEMA Standard Motor.
We are looking for new distributors and agents in the whole worldwide to expand our sales network. Welcomes contact us to build business relationship and friendship.
