| Prod Model: |
QL-53 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
88mm*20mm*20mm |
| Capacity: |
0.3kg to 60 |
| Type: |
Aluminum Parallel Beam |
| Cable Length: |
0.45 M |
| Pattern: |
Mini Load Cell |
Product Description

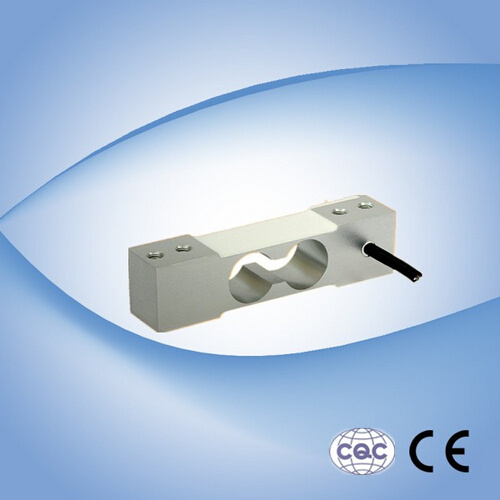

Single Point Counting Scale Load Cell (QL-53) Product Discription:
QL-53 miniature sensor are available in the capacities from 3kg to 60kg.
Aluminum construction, silicon adhesive sealed, surface anodized and anti-corrosion.
Integral structure and easy installation.
Suitable for electronic balance, electronic price computing scale and other electronic weighing devices.
Features: Capacity :3, 5,10,15,20,25,30,50,60
Defend grade: IP65
High accuracy.
Aluminum parallel beam
Integral installation, Low profile and nice exterior.
Recommended platform size:250x350mm

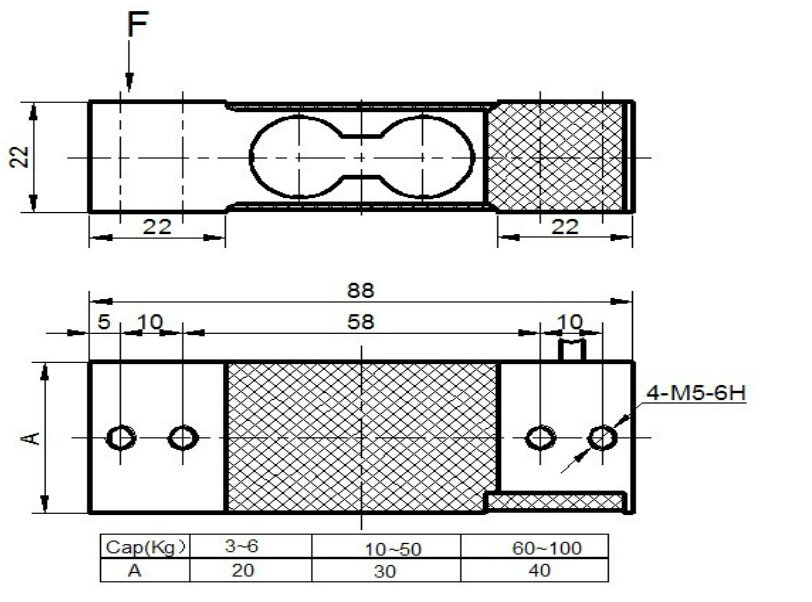

Dimensions:
Specifications:
Specifications: |
capacity |
kg |
3, 5,10,15,20,25,30,50,60 |
safe overload |
%FS |
120 |
ultimate overload |
%FS |
150 |
rated output |
mV/V |
1.0 ± 0.1 |
2.0 ± 0.2 |
excitation voltage |
Vdc |
9 ~ 12 |
combined error |
%FS |
± 0.03 |
0.017 |
zero unbalance |
%FS |
± 2 |
non-linearity |
%FS |
± 0.03 |
± 0.017 |
hysteresis |
%FS |
± 0.03 |
± 0.02 |
repeatability |
%FS |
± 0.01 |
creep |
%FS/30min |
± 0.02 |
input resistance |
Ω |
405 ± 6 |
output resistance |
Ω |
350 ± 5 |
insulation resistance |
M Ω |
≥ 5000 @ 100 Vdc |
operating temperature range |
ºC |
-35 ~ +65 |
compensated temperature range |
ºC |
-10 ~ +40 |
temperature coefficient of SPAN |
%FS/10ºC |
± 0.02 |
± 0.014 |
temperature coefficient of ZERO |
%FS/10ºC |
± 0.03 |
± 0.017 |
Electrical connection: Excitation+ red Excitation- black Signal+ green Signal- white.
Four-core shielded cable with polyethylene. Cable is not connected with elastomer.
Cable diameter :¢4mm Cable length:450mm.
The cable length could be chose by customer's application.
