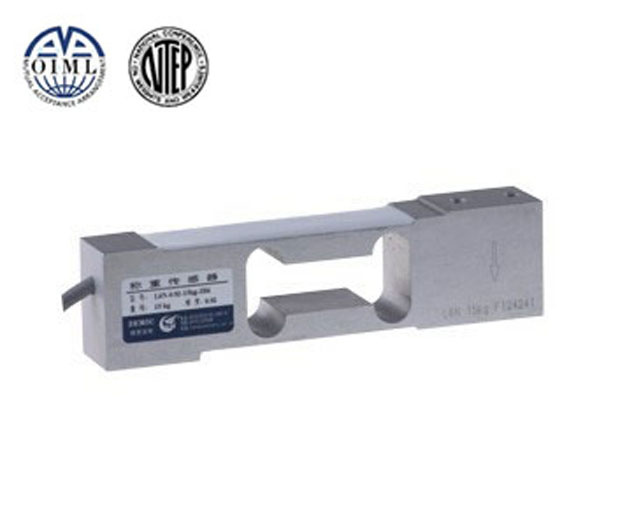

Single Point Weighing Load Cell

Name: Single Point Weighing Load Cell
Brand: all-electronics-online.com
SKU: 678355462
Availability: InStock
Rating: 4.7 (27 reviews)

Price:	US $ 10-15/Piece
Trade Terms:	FOB,EXW,CIF
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	L6N
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
1:	1/3" Sony CMOS Sensor/1.4MP/720p/960h
2:	with IR-Cut WDR
3:	WDR, 3D Nr, Sense-up, OSD
4:	Imx238+2430h (Ahd)
5:	IR LED: 42X4PCS
6:	IR Range: 80m
7:	Board Lens 12mm/F2.0
8:	Water Resistance: IP66
9:	Anti-Cut 3-Axis Bracket
10:	Size: 148(W) X 65(H) X 63(D)Mm Weight: 500g
Material:	Aluminum

Product Description

Name: Load cell
Modl: L6N
Capacity:3kg to 100kg .
High accuracy.
Max. platform size: 400x400mm.
With OIML approval.
L6N load cells are available in the capacities 3kg to 100kg.
Alumium construction with parallel beam.
Silicon adhesive sealed, surface anodized and anti-corrosion.
Intergral structure and easy installation.
Suitable for electronic balance and other electronic weighing devices.

Specifications

Capacity	(kg)	3/5/8/10/15/20/30/50/75/100
Accuracy		C3
Approvals		OIML R60 C3
Maximum number of verification intervals	n max	3000
Minimum load cell verification interval	v min	Emax/7000
Combined error	(%FS)	≤±0.020
Creep	(%FS/30min)	≤±0.0167
Temperature effect on sensitivity	(%FS/10ºC)	≤±0.0175
Temperature effect on zero	(%FS/10ºC)	≤±0.020
Output sensitivity	(mv/v)	2.0±0.2
Input resistance	(Ω)	394±6
Output resistance	(Ω)	350±3
Insulation resistance	(MΩ)	≥5000(50VDC)
Zero balance	(%FS)	2
Temperature,compensated	(ºC)	-10~+40
Temperature,operating	(ºC)	-35~+65
Excitation, Recommended	(V)	5~12(DC)
Excitation,Max	(V)	18(DC)
Safe overload	(%FS)	150
Ultimate overload	(%FS)	300
Corner correction		0.02% load value/100mm

Hangzhou Gongheng Weighing Equipment Co., Ltd is a Hi-tech enterprise specialized in producing, researching, developing, and selling the electronic scales, crane scale, floor scale, platform scale, pallet truck scale, truck scale and weighing accessories and so on. We have a number of experienced and capable technical personnel and advanced technology, innovated designs, superior production equipment and self-contained QC system, and provides high quality products, best price and service.
We produces the products that are characterized by variety, complete specification, quick delivery, high quality, best price and have been widely praised by many users and distributors. In addition to the standard scales for common use, the company can design and produce products required by different users and meet their special demand. We have set up a well-managed network of in-sale and after-sale service as well as a complete mechanism for service supervision and hope to co-operate with the distributors by supplying the high quality crane scale, floor scale, platform scales at competitive price and on the principle of mutual benefit. Sincerely look forward to cooperating with you, welcome you into our HZGH.
