Single Shear Beam Load Cell 0.5t 1t 2t 3t 5t 10t 20t

Name: Single Shear Beam Load Cell 0.5t 1t 2t 3t 5t 10t 20t
Brand: all-electronics-online.com
SKU: 680502401
Availability: InStock
Rating: 4.4 (120 reviews)

Price:	US $ 62/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QH-21B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Electronic Platform Scales
Capacity:	0.5t, 1t, 2t, 3t, 5t
10t Size:	222.5mm101.6mm25.4mm
Excitation Voltage:	9-12 VDC

Product Description

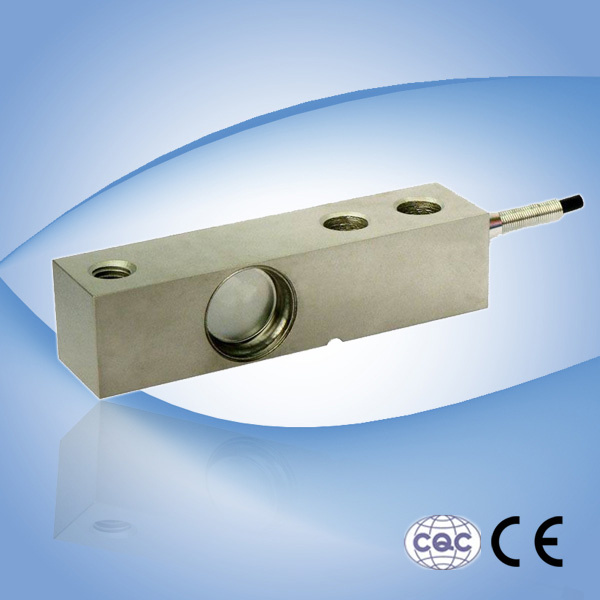

single shear beam load cell 0.5t 1t 2t 3t 5t 10t 20t

QH-21B load cells are available in the capacities from 0.5t to 10t.
Alloy steel & stainless steel construction with single shear beam type.
Silicon adhesive,hermetically sealed,waterproof,anti-oil, anti-corrosion and suitable for a variety of environment.
Integral structure and easy installation.
Suitable for electronic platform scale, railway scale,weighbridge and other electronic weighing devices

Features:

1.Capacity : 0.5t to 10t.
2.Defend grade: IP67 & IP68
3.High accuracy,easy to install.
4.Low profile and nice exterior.

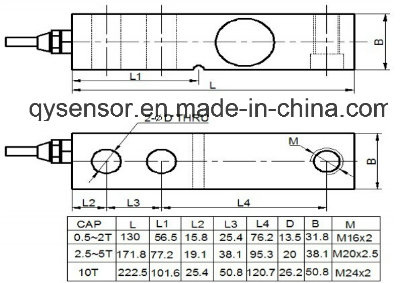

Electrical connection and Dimensions:

Technical Specifications

Specifications:
capacity	t	0.5,1,2,5,10
safe overload	%FS	150
ultimate overload	%FS	200
rated output	mV/V	3.0 ± 0.003
excitation voltage	Vdc	9 ~ 12
combined error	%FS	± 0.03	±0.02
zero unbalance	%FS	± 1
non-linearity	%FS	± 0.03	± 0.02
hysteresis	%FS	± 0.03	± 0.02
repeatability	%FS	± 0.02	± 0.01
creep	%FS/30min	± 0.03	± 0.02
input resistance	Ω	350 ± 5
output resistance	Ω	350 ± 3
insulation resistance	M Ω	≥ 5000 @ 50 Vdc
operating temperature range	°C	-20 ~ +55
compensated temperature range	°C	-10 ~ +40
temperature coefficient of SPAN	%FS/10°C	± 0.025	± 0.017
temperature coefficient of ZERO	%FS/10°C	± 0.03	± 0.03

Electrical connection:
Excitation+ red
Excitation- black
Signal+ green
Signal- white Four-core shielded cable with polyethylene.
Cable diameter :¢5mm
Cable length:3m The cable length could be chose by customer's application.

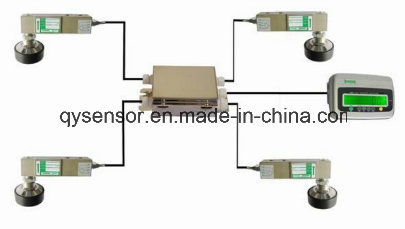

Applied in four pieces:
