Single Sided Flexible PCB Copper Board 2 Oz FPC Yellow
| Price: |
US $ 1.22/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-1827-V23 |
| Board Thickness: |
0.25mm |
| Surface Finish: |
Immersion Gold |
| Solder Mask Color: |
Yellow |
| Legend Color: |
No Required |
| Copper Thick: |
70 Um (2 Oz) |
| Thickness of Coverlay: |
25 Um |
| Peeling Test of Coverlay: |
No Peelable |
| RoHS Required: |
Yes |
| Pth Cu Thickness: |
No Required |
| Test: |
100% Electrical Test |
| Structure: |
Single-Sided FPC |
| Material: |
Polyimide |
| Combination Mode: |
Adhesive Flexible Plate |
| Conductive Adhesive: |
Conductive Silver Paste |
| Application: |
Power Electronics |
Product Description

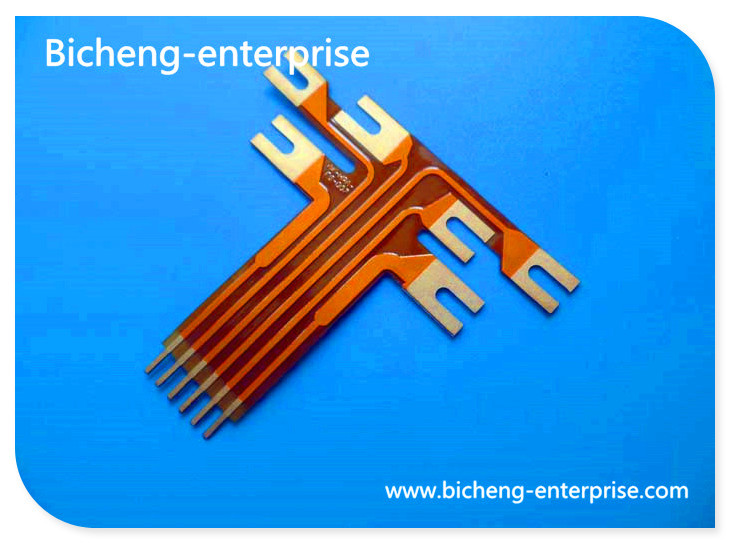

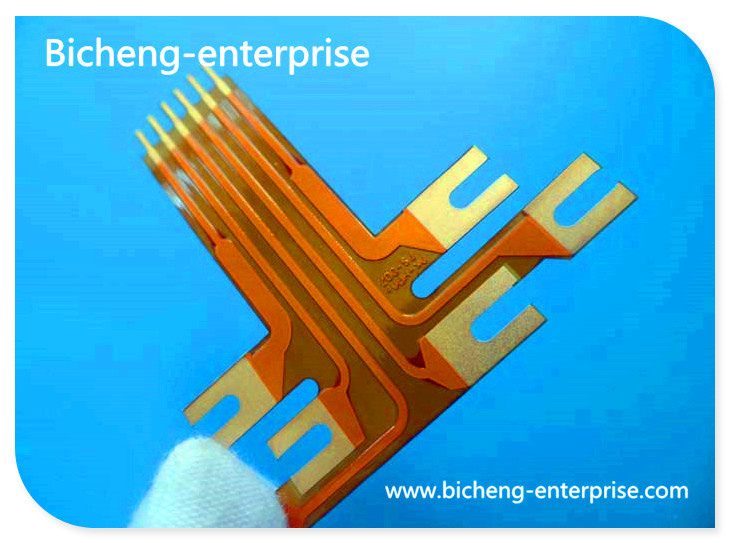

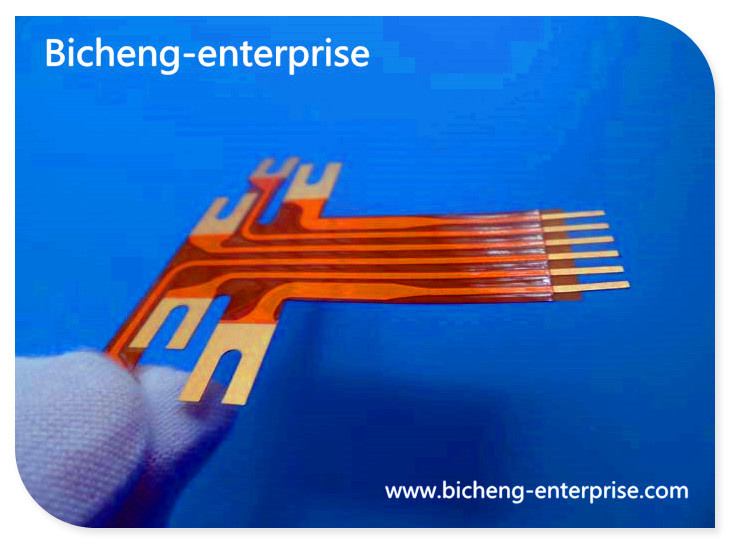

Single sided Flexible PCB copper board 2 oz FPC Yellow 417
Commodity Introduction
This is a type of flexible printed circuit for the application of Power Electronics. It's a single sided
layer FPC at 0.25mm thick with 2oz copper. The base laminate is from ITEQ, It's fabricated per
IPC 6012 Class 2 using supplied Gerber data.
Parameter & Data Sheet| Size of Flexible PCB | 61.61 X 70.37mm |
| Number of Layers | 1 |
| Board Type | Flexible PCB |
| Board Thickness | 0.25mm |
| Board Material | Polymide 50µm |
| Board Material Supplier | ITEQ |
| Tg Value of Board Material | 60ºC |
| |
| PTH Cu thickness | N/A |
| Inner Iayer Cu thicknes | N/A |
| Surface Cu thickness | 70 µm (2 oz) |
| | |
| Coverlay Colour | Yellow |
| Number of Coverlay | 2 |
| Thickness of Coverlay | 25 µm |
| Stiffener Material | no |
| Stiffener Thickness | N/A |
| | |
| Type of Silkscreen Ink | N/A |
| Supplier of Silkscreen | N/A |
| Color of Silkscreen | N/A |
| Number of Silkscreen | N/A |
| |
| Peeling test of Coverlay | No peelable |
| Legend Adhesion | 3M 90ºC No peeling after Min. 3 times test |
| |
| Surface Finish | Immersion Gold |
| Thickness of Nickle/Gold | Au: 0.03µm(Min.); Ni 2-4µm |
| RoHS Required | Yes |
| Famability | 94-V0 |
| |
| Thermal Shock Test | Pass, -25ºC±125ºC, 1000 cycles. |
| Thermal Stress | Pass, 300±5ºC,10 seconds, 3 cycles.
No delamination, no blistering. |
| Function | 100% Pass electrical test |
| Workmanship | Compliance with IPC-A-600H & IPC-6013C Class 2 |
Purpose of Flexible Circuits
a) to provide interconnections between printed circuit boards and other components.
b) to serve as three-dimensional substrates for the mounting of SMT components, e.g., in
photographic and video cameras.
c) to establish interconnections capable of withstanding dynamic flexing.
d) to form part of rigid-flex circuit boards.
Single-Sided Flexible Printed Circuits (FPC)
It is the simplest type of FPC, and consists of a thin and flexible base material (Polyimide or PET) to which a copper foil is laminated by means of an adhesive. The finished circuit is frequently provided with a coverlay bonded to the copper side by means of an adhesive.
Stack up
|-Polyimide
Coverlay } |
|-Adhesive
|-Copper Foil
Flex PCB } |Adhesive
|-Polyimide
