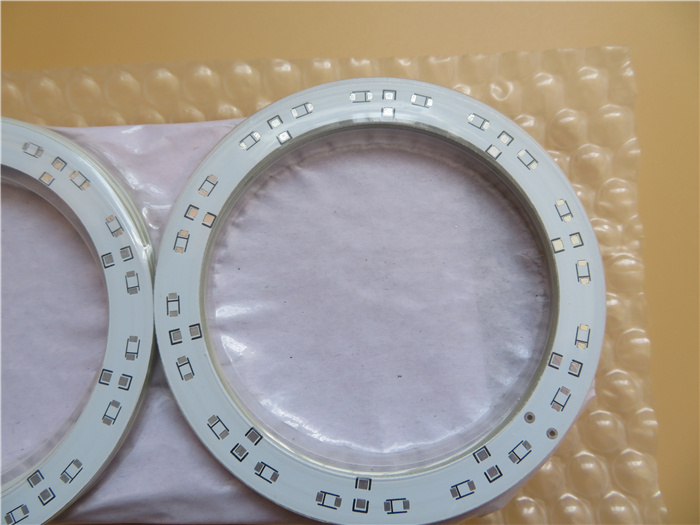

Single Sided LED PCB 1.5mm Fr-4 with White Solder Mask
| Price: |
US $ 0.54/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-898-V8.98 |
| Board Thick: |
1.5mm±0.15 |
| Surface Finish: |
HASL Lead Free |
| Out Layer Copper: |
1 Oz |
| Soldermask Color: |
White |
| Silkscreen Color: |
Black |
| Minimum Trace And Space: |
3 Mil / 47 Mil |
| Minimum / Maximum Holes: |
1.0 mm / - mm |
| Via: |
Minimum Size 1.0 mm |
| Board Plating: |
0.0029" |
| Test: |
100% Electronic Test |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description
1.1 General description
This is a type of 1.5mm single sided PCB built on FR-4 substrate with Tg 150°C for
the application of LED lighting. It's printed with black silkscreen(Taiyo) on white solder
mask (Kuangshun) and HASL on pads. The base material is from ITEQ supplying single
PCB.They're fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 25 boards
are packed for shipment.
1.2 Features and benifits
a. Middle Tg FR4, Outstanding thermal resistance and suitable for lead-free process;
b. HASL, Excellent wetting during component soldering and it can avoid copper corrosion;
c. Engineering design prevents problems from occurring in pre production;
d. PCB manufacturing on required specifications;
e. UL recognized and RoHS Directive-compliant;
f. Hassle-free, one-to-one after-sales service;
g. Customer complaint rate: <1%
1.3 Application
Automation, Microprocessor, USB WiFi Dongle, USB Bluetooth Dongle, White Led Lights,
Wireless CCTV Systems, Car GPS Tracking, GPS Vehicle Tracking Device, Valve Driver, Heart
monitors
1.4 Parameter and data sheet| PCB SIZE | 95 x 95 mm=1PCS |
| BOARD TYPE | Single sided PCB |
| Number of Layers | 1 layer |
| Surface Mount Components | YES |
| Through Hole Components | NO |
| LAYER STACKUP | copper ------- 18um(0.5oz)+plate TOP layer |
| FR-4 1.5mm |
| TECHNOLOGY | |
| Minimum Trace and Space: | 3 mil / 47 mil |
| Minimum / Maximum Holes: | 1.0 mm / - mm |
| Number of Different Holes: | 1 |
| Number of Drill Holes: | 2 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 0 |
| Impedance Control: | no |
| Number of Gold finger: | 0 |
| BOARD MATERIAL | |
| Glass Epoxy: | FR-4 Tg150ºC, er<5.4.IT-158, ITEQ Supplied |
| Final foil external: | 1 oz |
| Final foil internal: | 0 oz |
| Final height of PCB: | 1.5 mm ±0.15 |
| PLATING AND COATING | |
| Surface Finish | HASL Lead free |
| Solder Mask Apply To: | TOP and Bottom, 12micron Minimum |
| Solder Mask Color: | White, KSM-H8100 |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | Top |
| Colour of Component Legend | Black, KSM-388BK/KSM28 |
| Manufacturer Name or Logo: | Marked on the board in a conductor
and leged FREE AREA |
| VIA | Non Plated through hole(PTH),
minimum size 1.0 mm. |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" |
| Board plating: | 0.0029" |
| Drill tolerance: | 0.002" |
| TEST | 100% Electrical Test prior shipment |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
