Single Sided PCB Board 1.6mm Thick and 1.6W/Mk Dielectric
| Price: |
US $ 1.35/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC1265R1.5 |
| Surface Finish: |
HASL Lead Free |
| Solder Mask Color: |
White |
| Copper Thick: |
1 Oz |
| Legend Color: |
Black |
| Minimum Trace and Space: |
12mil/13mil |
| Minimum / Maximum Holes: |
4.5mm |
| Board Thick: |
1.6mm |
| Thermal Conductivity: |
1.6W/Mk Dielectric Material |
| Via: |
No Via |
| Function: |
100% Electrical Test |
| Type: |
Rigid Circuit Board |
| Flame Retardant Properties: |
V0 |
| Material: |
Aluminum |
| Dielectric: |
Aluminum |
Product Description

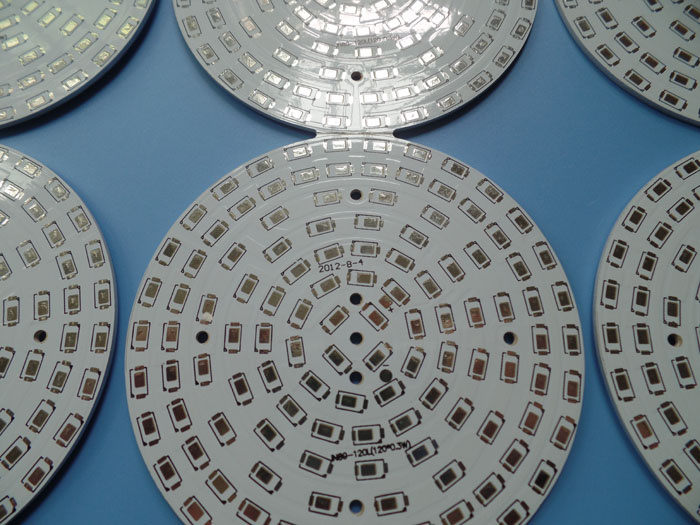

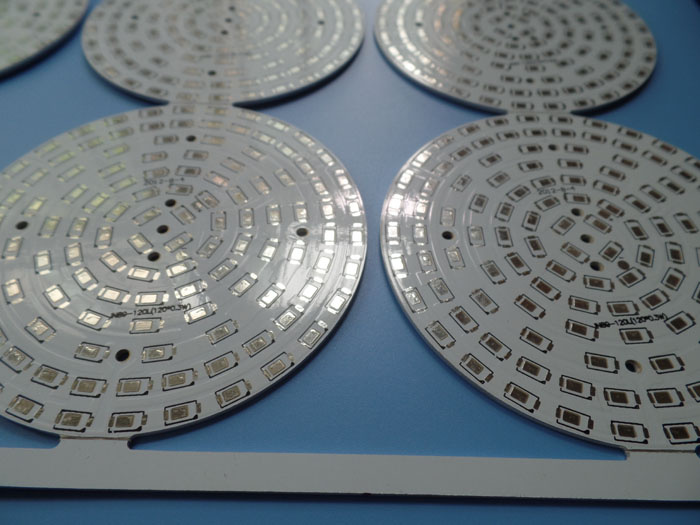

Aluminum PCB Service Single Sided Board 1.6mm Thick and 1.6W / MK Dielectric HASL LF Applied In High Power LED Light
Commodity Introduction
This is a type of Aluminum PCB for the application of Led Light. It's a single sided layer board at
1.6mm thick. The base laminate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabric
-ated per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are packed
separately.

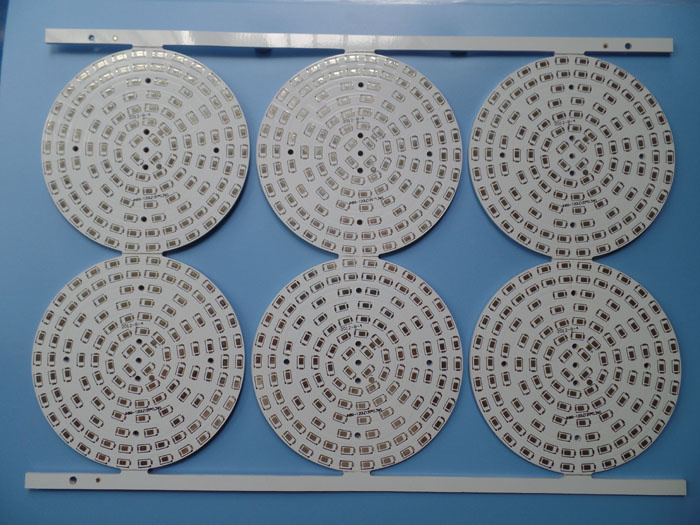

Parameters & Data Sheet| PCB SIZE | 270 x 200mm=6PCS |
| BOARD TYPE | |
| Number of Layers | Single sided PCB |
| Surface Mount Components | YES |
| Through Hole Components | NO |
| LAYER STACKUP | copper ------- 35um(1oz) |
| 1.6W/MK dielectric material 75um |

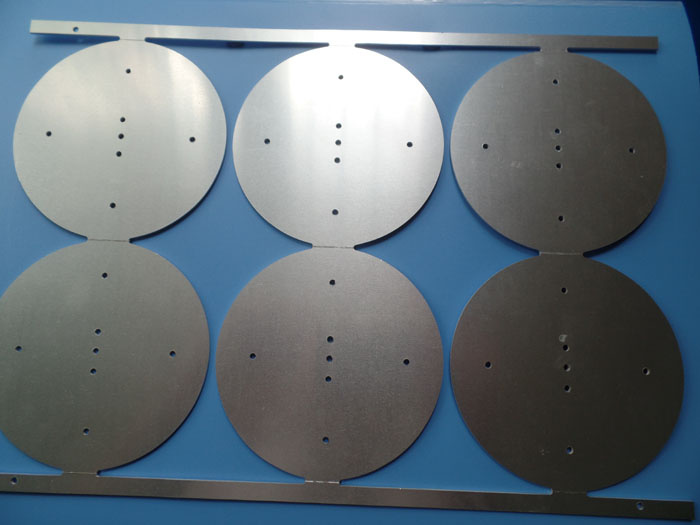

| Aluminum base 1060 |
| TECHNOLOGY | |
| Minimum Trace and Space: | 12mil/13mil |
| Minimum / Maximum Holes: | 4.5mm |
| Number of Different Holes: | 1 |
| Number of Drill Holes: | 7 |
| Thermal resistance(°C/W) | ≤0.45 |
| Breakdown Voltage(VDC) | 4000 |
| Impedance Control | no |
| BOARD MATERIAL | |
| Thermal conductivity | 1.6W/MK dielectric material |
| Final foil external: | 1oz |
| Final foil internal: | 0oz |
| Final height of PCB: | 1.6mm ±0.16 |
| PLATING AND COATING | |
| Surface Finish | Hot Air Soldering Leveling(HASL),
lead free, Sn>=2.54µm |
| Solder Mask Apply To: | Top. 12µm Minimum. |
| Solder Mask Color: | White |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | Black |
| Manufacturer Name or Logo: | as per requirement |
| VIA | no via |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" (0.15mm) |
| Board plating: | 0.0030" (0.076mm) |
| Drill tolerance: | 0.002" (0.05mm) |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | High power LED light, AC DC Converter
Wireless N Router
Portable Wifi Router
Modem Huawei
USB Wifi Dongle |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
Image Transfer
As PCBs become more complex, patterns (pads and tracks) are becoming finer and finer. It is
very crucial to transfer the image without any noticeable distortion. The finished image will act as
a plating resist. This is usually based on a dry-film resist of a certain thickness that matches the
plating thickness.
The most commonly used track width is about 0.102 mm (4 mils) which could be regarded as
the standard width. However, widths of 0.076 mm (3 mils) are also in use, and some Chinese
PCB manufacturers operate with track widths down to 0.050 mm (2 mils). But the PCB designer
should not be tempted by track widths of 0.076 mm (3 mils) or smaller because the manufacturi
-ng yield becomes lower and the board price, correspondingly, higher.
The purpose of image transfer is to cover those areas of the board that are not to be plated
with copper, tin/lead or pure tin, with a plating resist, and to leave the pattern open for electropl
-ating. With plated-through-hole boards, image transfer is performed by means of a photopolym
-er dry-film process consists of the following steps:- Lamination
- Registration
- Exposure
- Developing
- Laser Direct Imaging
