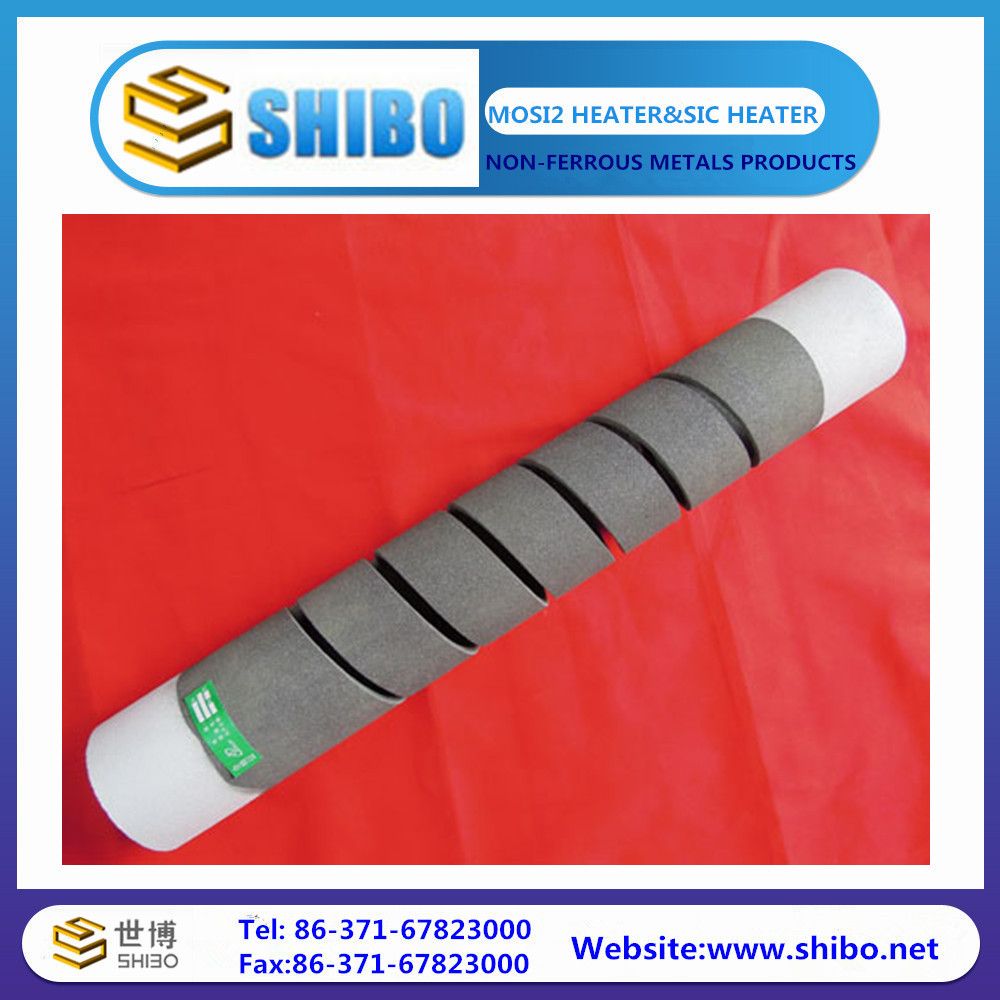

Single Spirals Sic Heating Elements with Best Price

Name: Single Spirals Sic Heating Elements with Best Price
Brand: all-electronics-online.com
SKU: 709644642
Availability: InStock
Rating: 4.5 (133 reviews)

Price:	US $ 30/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	1400
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name:	Sic Heater
Max Temperature:	1350

Product Description

1.The General Description of silicon carbide heater

1). production process:made into blank,silicided under high temperature and re-crystallized.
2). character: high-applied temperature ,anti-oxidization ,anti-corrosion ,long service life ,little deformation,easy installation and maintenance.
3). usage: used in various high temperature electric furnaces and other electric heating devices,such as in the industries of magnet,ceramics,metallurgy ,glass,and machinery.
4). physical properties of element

specific gravity	2.6~2.8g/cm³	bend strength	>300kg
hardness	>9 MOH′S	Tensile strength	>150kg/cm³
porosity rate	<30%	radiancy	0.85

2. Advices of using the element
1). In order to keep furnace temperature and the charges uniform of each element, before installation resistance distribution must be carried.
2). As the element is very brittle ,be careful while install and maintain to avoid any damage.
3). when start to operate the furnace ,raise voltage slowly and gradually,never give full load at one time.

When you inquiry, pls tell us the following data:
a). Outer diameter (OD)
b). Length of Hot zone (HZ)
c). Length of Overall (OL)
d). Resistance (at 1050°c +/-50°c)

Dia(OD) (mm)	Length of hot zone(HZ)(mm)	Length of cold zone(CZ)(mm)	Overall Length(OL)(mm)	Range of Resistance(Ω) (ohms)
8	100-300	60-200	240-700	2.1-8.6
12	100-400	100-350	300-1100	0.8-5.8
14	100-500	150-350	400-1200	0.7-5.6
16	200-600	200-350	600-1300	0.7-4.4
18	200-800	200-400	600-1600	0.7-5.8
20	200-800	250-600	700-2000	0.6-6.0
25	200-1200	250-700	700-2600	0.4-5.0
30	300-2000	250-800	800-3600	0.4-4.0
35	400-2000	250-800	900-3600	0.5-3.6
40	500-2700	250-800	1000-4300	0.5-3.4
45	500-3000	250-750	1000-4500	0.3-3.0
50	600-2500	300-750	1200-4000	0.3-2.5
54	600-2500	300-750	1200-4000	0.3-3.0

When you place an order of the W Shape SiC Heating Elements, please give following information:
OD: Outer Diameter;
HZ: Length Of Hot Zone;
CZ: Length Of Cold Zone;
OL: Overall Length, A: Shank Spacing
Order Sample of the W Shape SiC Heating Element
W Shape: OD=20mm, HZ=250mm, CZ=350mm, OL=625mm, A=52mm,
Resistance: 0.9Ω Specify As: 20/250/625/52/0.9Ω
