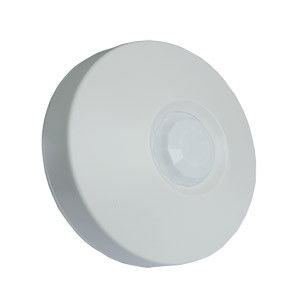

Single-Tech Ceiling Mount PIR Detector (CL-40S)

Single-Tech Ceiling Mount PIR Detector (CL-40S)
Price: Negotiable/Piece
Trade Terms: FOB
Min Order: 2/Piece
Pay Type: T/T,Paypal,Western Union
Prod Model: CL-40S
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Operation Voltage/Current: 9-16V/DC 10mA
Detection Distance: H=2.4m 7m*7m 360°
Installation Height: 2.2m-4.5m
Sensitivity: 1/2/3 for Option
Rfi/EMI Protection: >30V/M 500MHz
Alarm Output: 100mA/24V
Detection Type: Wired

Product Description


Features:
* Adopt advanced and stable circuit design, low in false alarm and missing alarm.
* Remarkable interference prevention: Up to 30V/m from 30 to 1000 Hz
* Standout Fresnel lens, excellent ability to human infrared ray.
* Automatic alternation of pulse account.
* Dual-structure temperature compensation technology to solve the problem of normal temperature interference completely.
* ESD, anti electric shock and mobile interference.
* Low current consumption (<10mA stand by, 17mA alarm).
* Selectable pulse account. (1, 2 or 3)
* Detection range: 7m*7m.

Parameter:

Operation voltage/current9-16V/DC    10mA
Detection distanceH=2.4m    7m*7m   360°
Installation height2.2m-4.5m
Sensitivity1/2/3 for option
RFI/EMI protection>30V/m  500MHz
Alarm output100mA/24V
Tamper output300mA/24V
Operation temperature-20ºC/+40ºC
Operation humidity5%-95%(RH)
Anti white light>10000LUX
Detection speed0.2m/s to 3.5m/s

With over 8 years experiences in electronics business, Sunlit Technology (H. K) Ltd. has developed itself as one of the very professional providers of electronics such as intrusion alarm including motion detector, outdoor PIR detector, infrared beams detectors, photoelectric sensors, alarm control panel, glass break detector, smoke detector, gas leakage detector, power supply such as batteries, inverters, CCTV systems such as gun cameras, integrared infrared cameras, dome cameras, IP cameras, DVR, etc with a comprehensive range of hi-tech products to meet the needs of today highly developing markets under the hard work of its 220 employees.

Sunlit-tech has been devoting its entire efforts to the R&D manufacturing and marketing in electronics continually. Its factory is equipped with advanced equipments like SMT machines, plastic jointing machine, soldering machine, testing devices etc. Most of Sunlit products have got CE approvals and some of them are with UL certificates.

Aiming at Sincere cooperation & mutual benefits, Sunlit has obtained good reputation around the world especially in America, Europe, South Africa, Middle East and Asia with its wide products range, very stabl quality and hot competitive price and after-sale service!

OEM/ODM requests will also be well performed due to our successful 2 years OEM experiences. Sunlit is sure to make you and your company feeling successful like in the sunshine!
