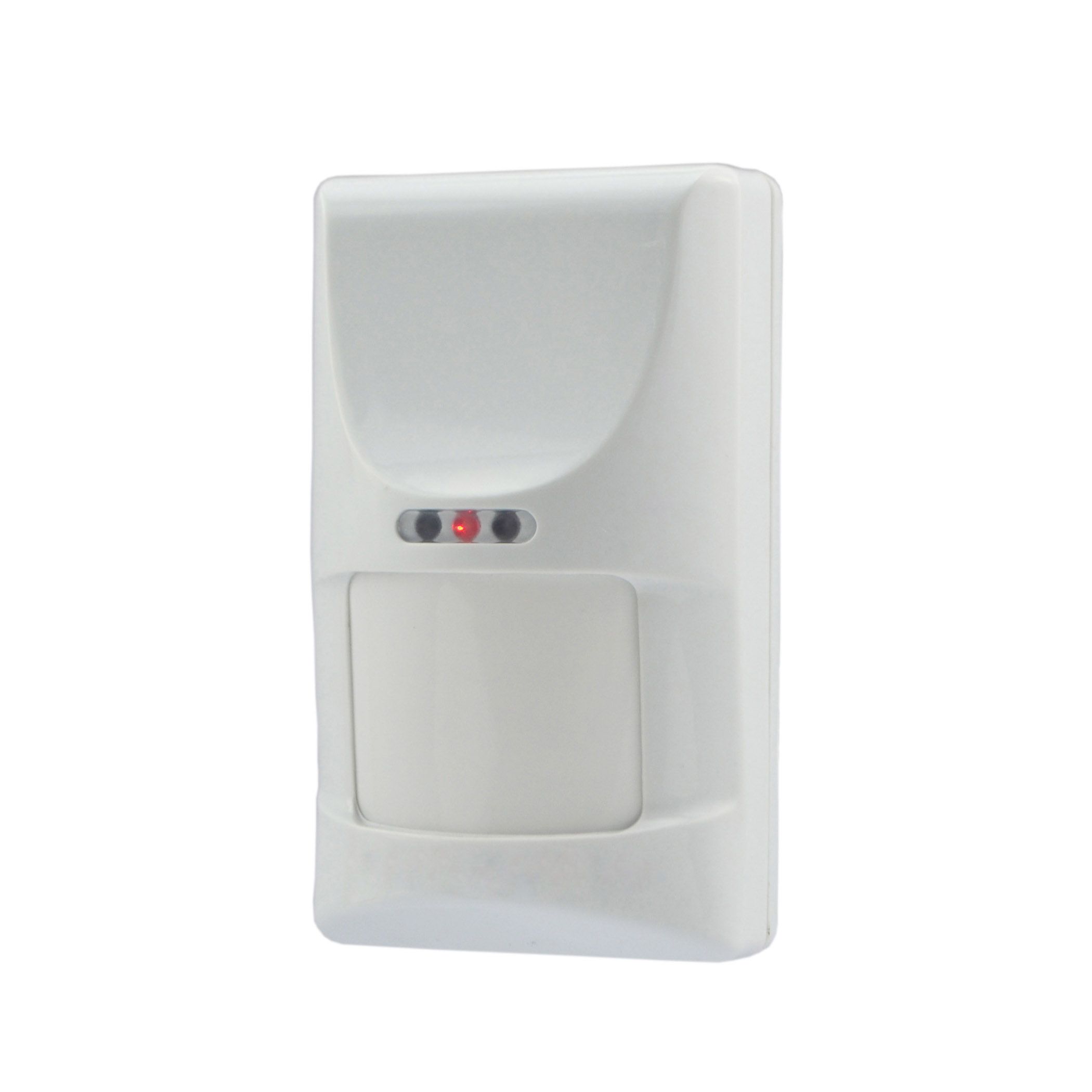

Single-Tech PIR Detector with Pet Immunity (ATM-40MS)

Name: Single-Tech PIR Detector with Pet Immunity (ATM-40MS)
Brand: all-electronics-online.com
SKU: 635733755
Availability: InStock
Rating: 4.6 (146 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	ATM-40MS
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Alarm Output:	100ma/24V
Detection Speed:	0.2m/S to 3.5m/S
Sensitivity:	L/H for Option
Detection Distance:	12m 100°
Current:	20ma
Rfi/EMI Protection:	>30V/M 500MHz
Installation Height:	1.5m-2.4m
Operation Voltage:	9-16V/DC

Product Description

Features:
* Adopt advanced and stable circuit design, very low rate of failure alarm and false alarm
* Fine anti-interference-30V/M from 30MHz to 1000MHz
* Excellent Fresenel optical lens, more powerful ability of capturing of human infrared ray.
* Automatic alternation pulse count.
* Dual-layer structure temperature compensation technology, which has solved the problem of interference from normal temperature.
* ESD. Anti electric-strike and interference from mobile phone
* Low power consumption (<10 mA stand by, 17mA alarm)
* Pulse count for option (1, 2 or 3)
* Various kinds of lens for option (4 types: Curtain, pet-immunity, wide-angle, long-distance)
* Detection range for curtain lens: 12*6m
* Detection range for pet-immunity lens: 12*12m
* Detection range for wide-angle lens: 12*12m
* Detection range for long-distance lens: 28*6m

Parameter:

Operation voltage/current	9-16V/DC 20mA
Detection distance	12m 100°
Installation height	1.5m-2.4m
MW frequency	10.525GHz
Sensitivity	L/H for option
RFI/EMI protection	>30V/m 500MHz
Alarm output	100mA/24V
Anti-mask /trouble output	100mA/24V
Tamper output	300mA/24V
Operation temperature	-20ºC~+40ºC
Operation humidity	5%-95%(RH)
Anti white light	>10000LUX
Operation mode	EI, Dual-tech or Single-tech alarm modes for option
Detection speed	0.2m/s to 3.5m/s
Pet immunity	25Kg
