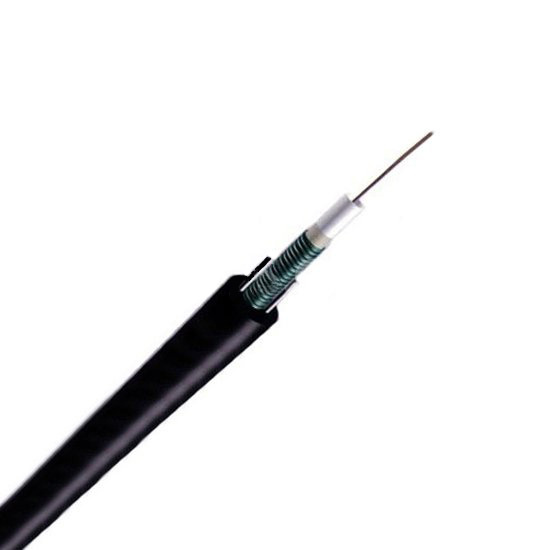

Singlemode 9/125 Single-Armored Single-Jacket Central Loose Tube Fiber Optic Cable

Name: Singlemode 9/125 Single-Armored Single-Jacket Central Loose Tube Fiber Optic Cable
Brand: all-electronics-online.com
SKU: 819905125
Availability: InStock
Rating: 4.9 (77 reviews)

Price:	US $ 0.43/Meter
Min Order:	4000/Meter
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	GYXTW-OS2-12F
Od:	8 mm
Application:	Communication
Type:	Single-mode Fiber
Connection Structure:	SC
Certification:	CE
Core:	12 Cores
Sheath Material:	PE

Product Description

12 Fibers SM OS2, Single-Armored Single-Jacket, Central Loose Tube, Steel-wire Strength Member, Waterproof Outdoor Cable GYXTW

GYXTW single-armored cables feature central loose tube wrapped with a layer of PSP longitudinally, excellent crush-resistant performance. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape, to ensure tensile strength. The cable is completed with a single polyethylene (PE) sheath. It's suitable for installation in aerial or duct environment for communication between bureaus, metropolitan network, access network and is especially suitable for the situation where high-density fibers is expected.

Cable Type	Single-Armored Outdoor	Fiber Count	12 Fibers
Construction	Central Loose Tube	Fiber Type	Singlemode G.652B
Outer Jacket Material	PE(Black)	Strength Member Material	Steel Wire
Cable Diameter	8.0mm	Weight	85kg/km
Armor Layer	Corrugated Steel Tape	Application	Aerial and Duct
Tensile Strength (long/short term)	600/1500(N)	Crush Load (long/short term)	300/1000 (N/100mm)
Bending Radius (long/short term)	10D/20D(mm)	Operating/Storage Temperature	-40 to +60°C

Feature and Application

Low dispersion and attenuationLight weight, small diameter, easy to layGood tensile strength and crush resistance performanceGood moisture-resistance, water blocking, and flexibilityGood mechanical and temperature resistant performance

Access networkBureaus networkMetropolitan networkAerial & conduit/duct application

Central Loose Tube Structure for Duct and Aerial Application

With excellent mechanical and temperature resistant performance, GYXTW outdoor cables are designed to provide high fiber counts with the flexibility and versatility required for today's most demanding installations, including aerial or duct environment for communication between bureaus, metropolitan network, access network and extreme conditions, like rainy, foggy, etc.
