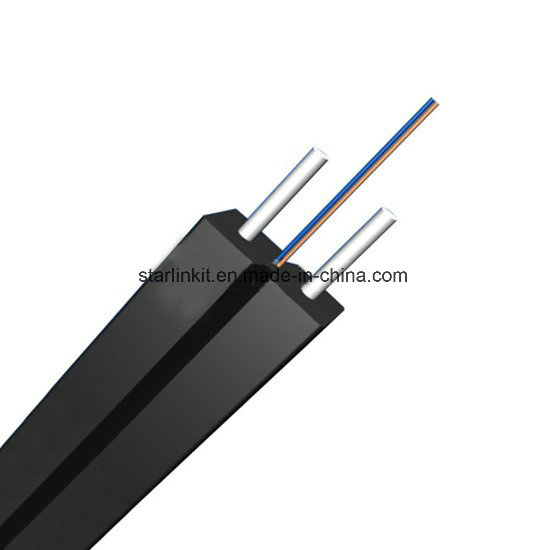

Singlemode LSZH Butterfly Flat Indoor FTTH Drop Fibre Optic Cable

Name: Singlemode LSZH Butterfly Flat Indoor FTTH Drop Fibre Optic Cable
Brand: all-electronics-online.com
SKU: 819627115
Availability: InStock
Rating: 4.6 (26 reviews)

Price:	US $ 0.23/Meter
Min Order:	4000/Meter
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	GJXFH
Od:	2.0*3.0 mm
Application:	Communication
Type:	Single-mode Fiber
Connection Structure:	SC
Certification:	CE
Sheath Material:	LSZH

Product Description

2 Fibers Singlemode 9/125 OS2, FRP Strength Member, LSZH Butterfly Flat Indoor FTTH Drop Cable GJXFH

GJXFH FTTH Indoor Drop Cable uses butterfly flat structure, whose optical fiber unit is positioned in the centre. Two parallel Fiber Reinforce Plastic (FRP) strength members are placed at the two sides. Then, the cable is completed with LSZH sheath. FTTH indoor cable has a much greater bandwidth to carry data and less susceptible to interference than common indoor fiber cables. With small diameter, water-resistant, soft and bendable characteristics, it's easy to deploy and maintenance. In addition, the non-metallic strength member can provide lightning protection and anti-electromagnetic interference. FTTH cables are ideal for indoor cabling, end users directly cabling, and access network.

Cable Type	FTTH Drop Cable	Fiber Count	2 Fibers
Construction	Butterfly Flat	Fiber Type	Singlemode G.657A
Outer Jacket Material	LSZH (Black/White)	Strength Member Material	FRP
Cable Diameter	(2.0±0.2)×(3.0±0.2)mm	Weight	10kg/km
Tensile Strength (long/short term)	100/200N	Crush Load (long/short term)	300/1000 (N/100mm)
Bending Radius (long/short term)	10D/20D (mm)	Operating/Storage Temperature	-40 to +85 °C

Feature and Application

Good waterproof preformanceLow smoke, zero halogen and flame retardant sheathSmaller diameter, simple structure, light weight, and high practicabilityFRP strength member ensures anti-electromagnetic and crush resistanceSpecial low-bend-sensitivity fiber provides high bandwidth data transmissionNovel flute design, easily strip and splice, simplify installation and maintenance

Access networkLocal area network (LAN)Used end users directly cablingFiber optic communication systemFTTH (fiber to the home) indoor cabling and distribution

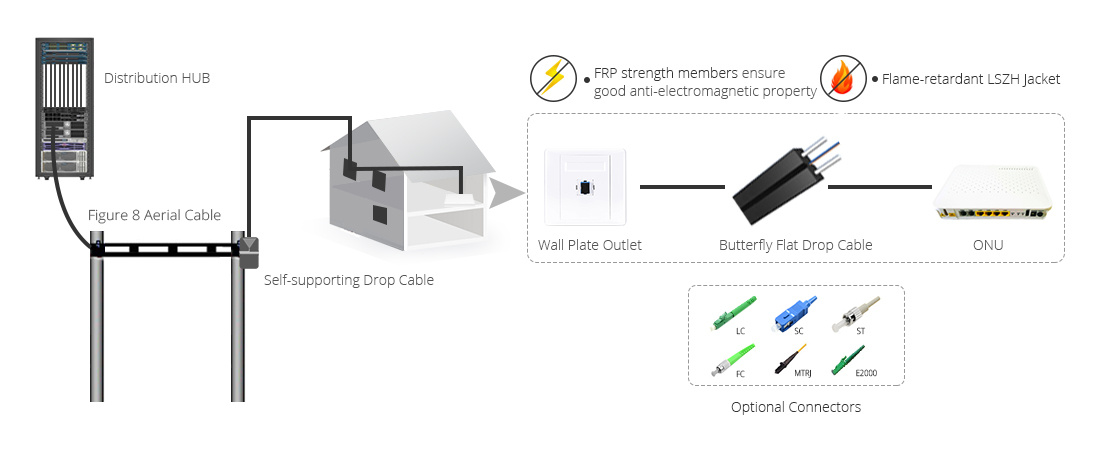

Ideal Using of Butterfly Flat Indoor FTTH Drop Cable

Butterfly Flat Indoor Drop Cable is widely used in fiber to the home (FTTH) network system, which can directly connect the communication line from the LAN to the end users. Butterfly flat drop cable uses special low-bend-sensitivity fiber to provide high bandwidth and excellent communication transmission, it's very suitable for indoor cabling, end users directly cabling, and access network.

Star Link IT Co., Ltd was founded in 2007, one of the leading suppliers of LAN Cables, Fiber Optic Cables, HDMI Cables, USB Cables, Patch Cords & CCTV Cables in China. Over the years, we have been serving customers from over 15 countries & regions, helping them lower their buying costs for copper data cabling as well as fiber optic products.

Star Link IT Co., Ltd leads the Cables & Wires manufacturing services industry in technical expertise and operational experience. Through strategic movement and an established long-term customer base, we have deep insight into the needs of the market, the technical convergence requirements and the competitive challenges that drive the need for continuous reevaluations of the supply chain. These insights drive our strategy of providing end-to-end solutions for networking and optical products.

Over the years, we have brought in advanced product facilities and built up a well-trained, qualified team, which continuously guarantees state-of-the-art quality and first-class service. We are young but dynamic, creative, flexible and continually striving to provide our customers with easy solutions. We pride ourself to partner with a certain number of the cross-regional top 500 companies.

Our goal is to be your very first source for data cabling.
