Singlemode Riser FRP Strength Non-Unitized Tight-Buffered Indoor Fiber Optical Cable

Name: Singlemode Riser FRP Strength Non-Unitized Tight-Buffered Indoor Fiber Optical Cable
Brand: all-electronics-online.com
SKU: 819929265
Availability: InStock
Rating: 4.5 (102 reviews)

Price:	US $ 2.3/Meter
Min Order:	4000/Meter
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	GJPFJV-OS2-24
Od:	8.5 mm
Application:	Communication
Type:	Single-mode Fiber
Connection Structure:	SC
Certification:	CE
Core:	24 Cores
Sheath Material:	PE

Product Description

24 Fibers, SM OS2, Riser, FRP Strength Member, Non-unitized Tight-Buffered Distribution Indoor Cable

Tight-Buffered Distribution Cable contains several tight-buffered fibers bundled under the same jacket with kevlar strength members and sometimes fiberglass rod reinforcement to stiffen the cable and prevent kinking. With aramid yarn as a reinforcing member, the cable is light weight, softness and easy to peel. It is widely used as pigtails and jumpers for communication equipments.

Cable Type	Tight-Buffered Distribution Cable	Fiber Count	24 Fibers
Flammability Rating	Riser (OFNR)	Fiber Type	Singlemode 9/125 OS2(Yellow)
Cable Diameter	8.5mm	Central Strength Member	FRP
Cable Weight	70kg/km	Tensile Strength (long/short term)	534/1780N
Crush Load (long/short term)	200/1000 (N/100mm)	Bending Radius (long/short term)	10D/20D (mm)
Operating Temperature	-20 to +60°C	Storage Temperature	-5 to +50°C

Feature and Application

Light weight and compact900μm tight-buffered fibers can be directly terminatedFlexible, flame-retardant & color coded outer jacketFRP central strength member

For premises wiringWork as pigtails and patch cordsOptical communication cables for inside plant installationsAs backbone in LANs

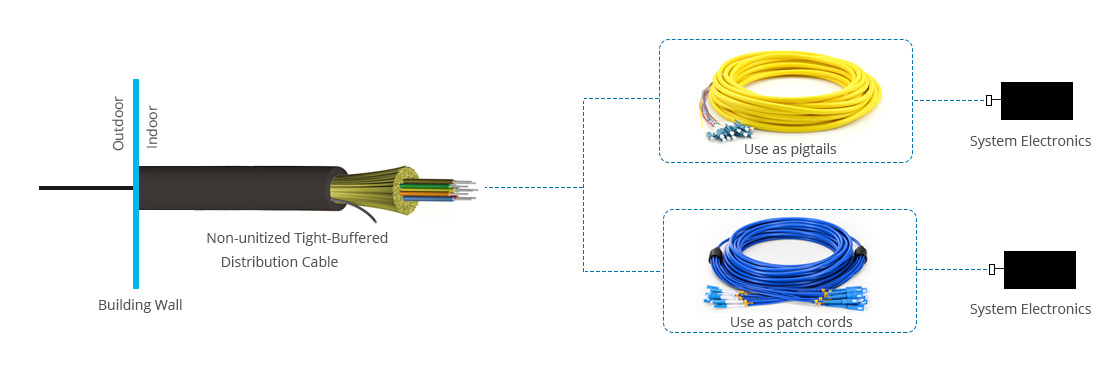

Ideal Solution for Distributing Cables

Distribution Cable can be direct connected to optical equipment for the fibers normally have a 900µm buffer. The terminated fibers may be directly connected to equipment without use of a patch panel and can be used as pigtails and patch cords.
