Singlemode Single-Armored Stranded Loose Tube Figure-8 Self-Supporting-Aerial Fiber Optic Cable

Name: Singlemode Single-Armored Stranded Loose Tube Figure-8 Self-Supporting-Aerial Fiber Optic Cable
Brand: all-electronics-online.com
SKU: 819842625
Availability: InStock
Rating: 4.9 (100 reviews)

Price:	US $ 0.85/Meter
Min Order:	4000/Meter
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	GYTC8S-OS2-12F
Od:	6.85*10.5 mm
Application:	Communication
Type:	Single-mode Fiber
Connection Structure:	SC
Certification:	CE
Sheath Material:	LSZH
Core:	12 Cores

Product Description

12 Fibers SM OS2, Single-Armored, Stranded Loose Tube, Figure 8 Self-supporting Aerial Waterproof Outdoor Cable

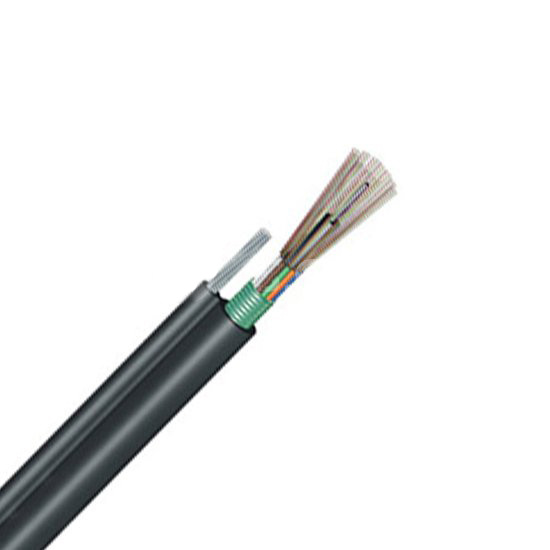

GYTC8S is a typical self-supporting outdoor fiber optical cable. The mental strength member is made up of stranded wires as the supporting part are completed with a polyethylene(PE) sheath to be figure 8 structure. Corrugated steel tape armored and PE outer sheath providing crush resistance and gun shot resistance features. The steel-wire strength member as the central strength improves the tensile strength and it is surrounded by the loose tube and water blocking system. It's suitable for installation in aerial, used for long distance and LAN communication systems.

Cable Type	Self-supporting Outdoor	Fiber Count	12 Fibers
Construction	Stranded Loose Tube	Fiber Type	Singlemode G.652B
Inner/outer Jacket Material	PE (Black)	Strength Member Material	Steel Wire
Cable Diameter	6.5*10.5mm	Weight	215kg/km
Armor Layer	Corrugated Steel Tape	Application	Aerial
Tensile Strength (long/short term)	1000/3000N	Crush Load (long/short term)	1000/3000 (N/100mm)
Bending Radius (long/short term)	10D/20D (mm)	Operating/Storage Temperature	-40 to +60°C

Feature and Application

Small cable diameter, cross section shows figure 8Self-supporting stranded wires, easily to installLow dispersion and attenuationExcellent mechanical and environmental performanceWater blocking system to improve the water-proof abilitySteel-wire strength member ensures tensile strengthCorrugated steel tape armored and PE outer sheath improve crush resistance

Outdoor aerial applicationUsed for long-haul communicationUsed for LAN communicationSubscriber network systemsJunction communication systemsCATV & Computer networks system

Ideal Solution by Using Figure 8 Self-supporting Cable

As the common see self-supporting aerial cables, figure 8 self-supporting cable are designed for easy and economical one-step installation and widely used in long haul and building network communication.
