| Prod Model: |

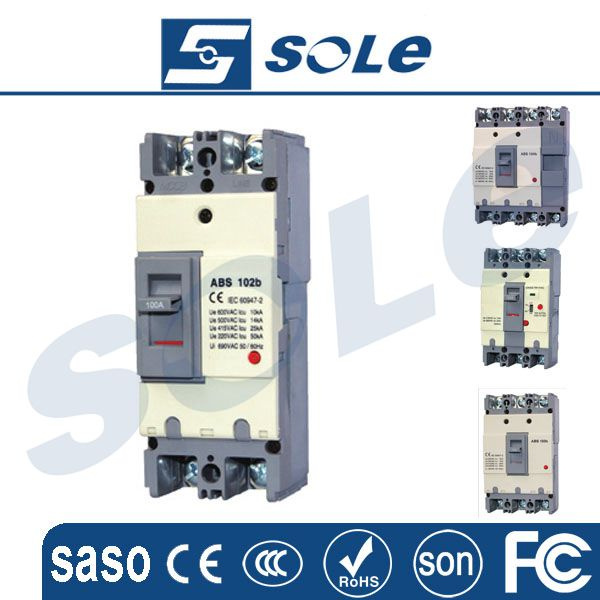

SLMAB Moulded Case Circuit Breaker |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| MCCB: |
Moulded Case Circuit Breaker |
| Structure: |
MCCB |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Poles Number: |
3 |
| Certification: |
CCC |
| Operation: |
Electric Type |
| Installation: |
Fixed |
| Arc-extinguishing Medium: |
Air |
| Speed: |
Normal Type Circuit Breaker |
Product Description
Application
SLMAB series moulded case circuit breaker is suitable for industrial or commercial power and lighting with AC 50/60Hz, rated working voltage up to AC 600V/ DC250V, rated current up to 1200A. It's a kind of economical breaker with the
Characters of stable and reliable function, beautiful appearance, small size and long life. It can be used for conversion of line and infrequent starting motor. It can also be attached to install the accessories which have protection function for avoiding loss-voltage. Under-voltage, The product can install connection line with front board and back board, it also can be equipped hand-operating apparatus of motor-operating apparatus to control in a remote distance.
Main Technical Specications
| Frame current 1nm(A) | 100 | 225 |
| Type | 2P | SLMAB -102E | SLMAB L-102E | SLMAB -102S | SLMAB L-102S | SLMAB -202E | SLMAB -202S |
| 3P | SLMAB -103E | SLMAB L-103E | SLMAB -103S | SLMAB L-103S | SLMAB -203E | SLMAB -203S |
| 4P | SLMAB -104E | SLMAB L-104E | SLMAB -104S | SLMAB L-104S | SLMAB -204E | SLMAB -204S |
| Rated current In(A) | 10, 15, 20, 30, 40,
50, 60, 75,100 | 10, 15, 20, 30, 40,
50, 60, 75,100 | 10, 15, 20, 30, 40,
50, 60, 75,100 | 10, 15, 20, 30, 40,
50, 60, 75,100 | 10, 15, 20, 30, 40,
50, 60, 75,100 | 10, 15, 20, 30, 40,
50, 60, 75,100 |
| Rated working voltage Ue(V) | AC600, DC250 | AC380-460(3P,4P)
AC220/240(2P) | AC600, DC250 | AC380-460(3P,4P)
AC220/240(2P) | AC600, DC250 | AC600, DC250 |
| Rated insulation voltage Ui(V) | 600 | 600 | 600 | 600 | 600 | 600 |
| Rated impulse wishstand voltage Uimp(V) | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 |
| Ics(kA)O-t-CO | AC220V/AC240V | 25 | 25 | 25 | 25 | 25 | 25 |
| AC380V | 14 | 14 | 14 | 14 | 14 | 14 |
| AC415V | 10
| 10 | 10 | 10 | 10 | 10 |
| AC440V/AC460V | 10 | 10 | 10 | 10 | 10 | 10 |
| AC480V/AC500V | 7.5 |
| 7.5 |
| 7.5 |
|
| AC600V | 5 |
| 5 |
| 5 |
|
| DC125V | 10 |
| 10 |
| 10 |
|
| DC250V | 5 |
| 5 |
| 5 |
|
| Ics(%Icu)O-t-CO-t-CO | 50 | 50 | 50 | 50 | 50 | 50 |
| Arc-over distance(mm) | ≤ 50 | ≤ 50 | ≤ 50 | ≤ 50 | ≤ 50 | ≤ 50 |
| Rated residual working | Fixed |
| 0.03, 0.1, 0.3 |
| 0.03, 0.1, 0.3 |
|
|
| current I Δ n(A) | Unfixed |
| 0.03, 0.1, 0.3 |
| 0.03, 0.1, 0.3 |
|
|
| Rated residualk working current I Δ n(A) |
| 0.5 × I Δ n |
| 0.5 × I Δ n |
|
|
| Breaking time at I Δ n(A) |
| ≤ 0.1sec |
| ≤ 0.1sec |
|
|
| Over-current tripping device | Hydraulicmagnetic | Hydraulicmagnetic | Thermalmagnetic | Thermalmagnetic | Thermalmagnetic | Thermalmagnetic |
| Operational performance: electrical life (times) | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Operational performance: mechanical life (times) | 8500 | 8500 | 8500 | 8500 | 8500 | 8500 |
Outline dimecsions L × W × H
| 2P | 130 × 50 × 60 | 130 × 50 × 60 | 155 × 60 × 60 | 155 × 60 × 60 | 165 × 105 × 60 | 165 × 105 × 60 |
| 3P | 130 × 75 × 60 | 130 × 75 × 60 | 155 × 90 × 60 | 155 × 90 × 60 | 165 × 105 × 60 | 165 × 105 × 60 |
| 4P | 130 × 90 × 60 | 130 × 90 × 60 | 155 × 120 × 60 | 155 × 120 × 60 | 165 × 140 × 60 | 165 × 140 × 60 |
