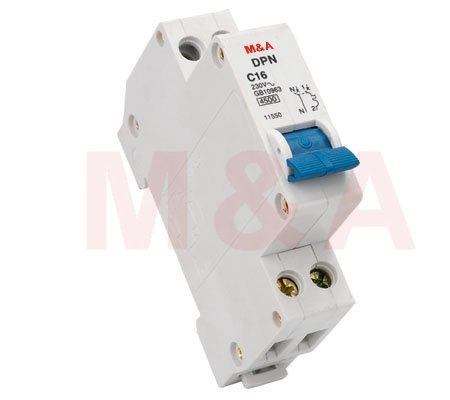

Slmcbm28-32 MCB Miniature Circuit Breaker

Name: Slmcbm28-32 MCB Miniature Circuit Breaker
Brand: all-electronics-online.com
SKU: 736146205
Availability: InStock
Rating: 4.7 (98 reviews)

Price:	US $ 0.6/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	Slmcbm28-32
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
MCB:	Mini Circuit Breaker
Structure:	MCB
Breaking Capacity:	Low Voltage Circuit Breakers
Certification:	CCC
Operation:	Manual Type
Installation:	Insert
Arc-extinguishing Medium:	Air
Speed:	High-Speed Circuit Breaker
Poles Number:	1,2,3,4

Product Description

Construction and Feature
Protection against both overload and short circuits
Integrated with switched phase and neutral pole
Neutral pole provides no protection against overload and short circuits
Easy mounting onto 35mm DIN rail

Technical Data
Pole No: 1P+N
Rated voltage: AC 230
Rated current(A): 3, 6, 10, 16, 20, 25, 32
Tripping curve: C
Rated short-circuit capacity: 4.5KA
Rated service short-circuit capacity(lcs): 4.5KA
Rated frequency: 50/60Hz
Connection terminal: Pillar terminal with clamp
Connection capacity: Rigid conductor up to 10mm2
Fastening torque: 1.2Nm
Installation:
On symmetrical DIN rail 35mm
Panel mounting
Terminal Connection Height: H=21mm

Specification

Number of Poles	1P, 1P+N, 2P, 3P, 3P+N, 4P
Rated Current (A)	1,2,3,4,6,10,16,20,25,32,40,50,63
Breaking Capacity (A)	6000 A
Rated Voltage (V)	230/415V
Rated Frequency	50/60Hz
Endurance	≥4000
Circumstance Temperature	-5ºC~+40ºC
Electrical Life	≥ 6000 operations
Mechanical Life	≥ 20000 operations
Protection Degree	IP20

Wenzhou Suoli Electric Co, . Ltd. (will change the namer to Wenzhou Manjia Electric Co., Ltd. ) is a manufacturer specialized in low-voltage electrical appliance, gathering research, manufacture, distribution and service as a whole. We mainly produce switch cabinet, JXF, distribution box, lighting box, plastic water-proof and dust-proof junction box, seal box, MCBs and so on.

Our company is established in 1995, located in Yueqing economic development zone with an area of 7800 square meters which is next to national highway 104, the transportation is very convenient.

Relying on powerful technology strength, advanced testing equipment, exquisite technical and modernized management mode, based on the principle that people oriented, we have 200 workers and 20 engineers. We import numerical control bending machine, cutting machine, punch, injection molding machine and such top-ranking facilities. Our products have passed certification of SON, CE and ISO9001.

The satisfaction of customers is our wishes and responsibility. In order to offer best services, we require all the staff to strengthen the notion of customer first. Besides, we also have established the center of after-sale services.

The company always keeps in touch in with clients and communicates with potential clients. Suoli always has been keeping the idea of the human being as base and considers honesty as the foundation, peace as the most valuable thing, and puts credibility in the first place.

Together with you, Souli is willing to create a better future.
