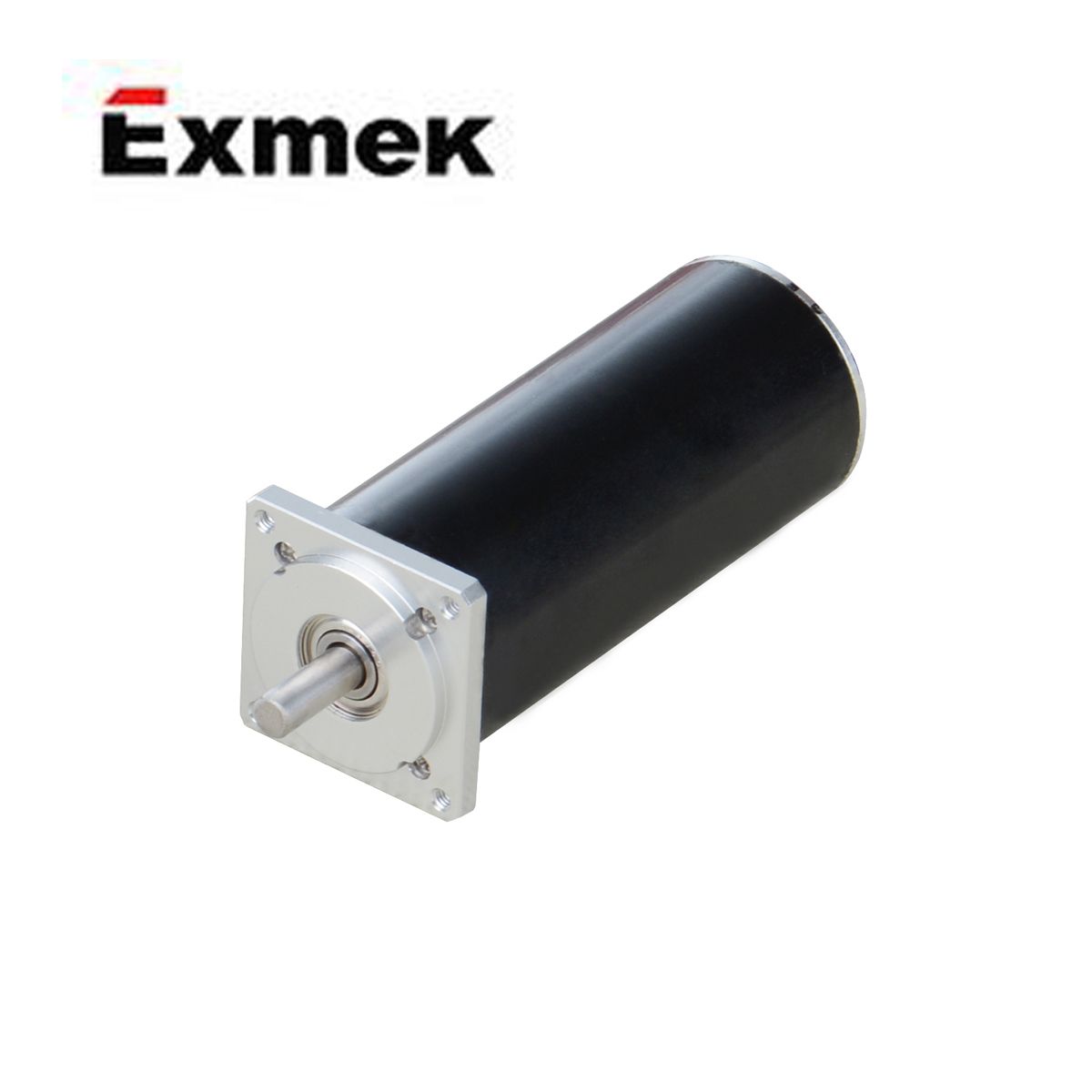

Slot-Less and Brushless DC Motor with 15V 150W (SLS24AS100)

Name: Slot-Less and Brushless DC Motor with 15V 150W (SLS24AS100)
Brand: all-electronics-online.com
SKU: 828289945
Availability: InStock
Rating: 4.4 (144 reviews)

Price:	US $ 100/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SLS24AS100
Application:	Power Tools
Operating Speed:	Adjust Speed
Excitation Mode:	Excited
Structure And Working Principle:	Brushless
Number Of Poles:	2 or 4
Certification:	Ce

Product Description

General information

Slot-less and brushless DC motor
High speed and high performance
0.2mm thickness silicon steel lamination
2 poles and 4 poles stator with 3 phases
Driver available

Specifications

Specifications	SLS24AS100
Voltage	15 VDC
Rated output power	150 W
No load speed	10000 RPM
No load current	0.2 A
Rated speed	8000 RPM
Rated torque	150 mNm
Stall torque	500 mNm
Stall current	12 A
Max. efficiency	85%
Phase resistance	0.3 ohms
Phase inductance	0.018 mH
Speed constant	690 RPM/V
Torque constant	15 mNm/A
Rotor inertia	10 g.cm²
Number of phases	3
Number of poles	4
Weight	140 g
L	59.5 mm

Special shaft and other mechanical characteristic optional.

Exmek Electric

Exmek Electric is principally engaged in the manufacturing and marketing of wide range of precision, high performance electric-mechanical drive components in mainland China. With our three production facility close to Shanghai, we are capable of providing you with more than 200 different types of motors, in range of diameter from 20mm to 120mm.

This include:

DC Brush Motor

DC Brushless Motor

Stepping Motor

Linear Motor

Gear Motor

And also Motor Components, assembly, & More...

Our comprehensive product line is normally sold to medical equipment, industry automation, office automation, printer device, all kinds of industry where quality and long term value is in highest priority. Not only focusing on OEM items with volume quantity for endusers or machine builder, we also work on middle and small quantity items. We are not only interested in motor and motor parts, but also keen on subassembly with added value for your project development. Reliability and consistency is always what we pursue in daily work.

Besides our in house production of DC brush and brushless motors, stepping motors, we are also organized to serve our loyal customer with versatile outsourcing products, through our ISO9001 quality assurance system.
