| Prod Model: |
GYTA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Loose Tube Material: |
PBT with Jerry |
| Outer Sheath Color: |
Black |
| Color Of Fiber /Loose Tube: |
Blue,Orange,Green,Brown,Grey,White,Red,Black,Yell |
| Installation Style: |
Duct, Aerial |
| Waterblocking Material: |
Water Blocking Tape or Filling Compound |
| Single Armour Material: |
Corrugated Aluminium Tape |
| Fiber Count: |
2-288 Core |
| Brand Name Of Fiber: |
Corning ,Yofc,Draka,Fujikura or as Your Requiremen |
| Brand Name: |
Tw-Scie Fiber Optic Cable or as Required |
| Application: |
Communication |
| Certification: |
ISO9001 |
| Type: |
Outdoor Fiber Cable |
| Sheath Material: |
PE |
Product Description

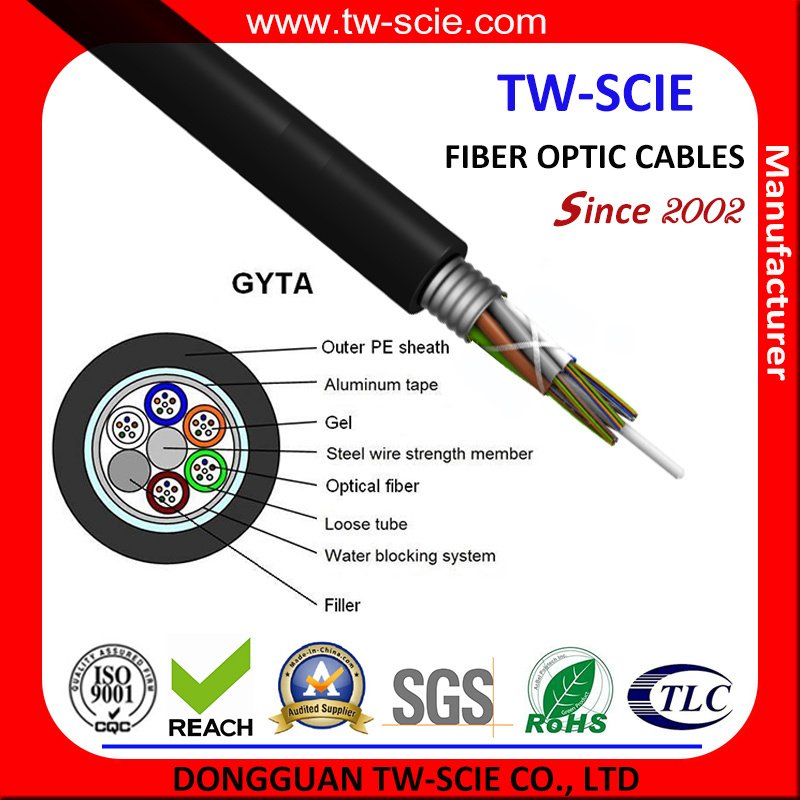

GYTA SM G652D Armored Fiber Optical Cable for Communication and LAN Network
Our Services

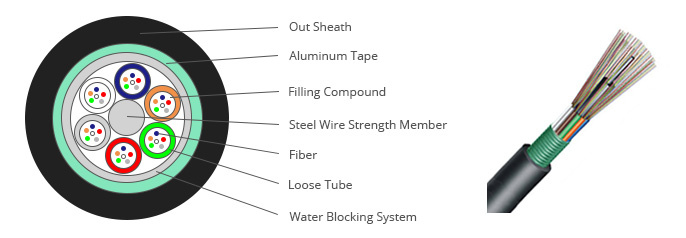

As manufacturer we are, we can offer you the structures as your requirement. Our advantage is to finish orders within short delivery time. Cable Structure
Features Good mechanical and temperature performance.High strength loose tube that is hydrolysis resistant.Tube filling compound to ensure a critical fiber protection.Special design to prevent loose tube shrinking.Crush resistance, water blocking and flexibility.PE sheath protects cable from ultraviolet radiation.Use the steel wire as the central strength member, 100% cable core filling and APL moisture barrier can ensure the cable watertight. | | Application Laying modes: Aerial & Conduit/Duct.Rural communicationLocal trunk lineCATVComputer networks system |
| Cable Count | Out Sheath
Diameter | Weight | Minimum Allowable Tensile Strength (N) | Minimum Allowable Crush Load
(N/100mm) | Minimum Bending Radius
(MM) | Storage
Temperature |
| | (MM) | (KG) | short term | long term | short term | long term | short term | long term | (ºC) |
| 2-24 | 10 | 110 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
| 26-42 | 10.5 | 135 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
| 46-72 | 11.5 | 155 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
| 74-96 | 13 | 175 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
| 98-120 | 14.5 | 200 | 2000 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
| 122-144 | 15.5 | 270 | 2000 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
| | G.652 | 50/125µm | 62.5/125µm |
Attenuation
(+20°C) (dB/km) | @850nm | | ≤3.0 | ≤3.0 |
| @1300nm | | ≤1.0 | ≤1.0 |
| @1310nm | ≤0.36 | | |
| @1550nm | ≤0.22 | | |
| Bandwidth (Class A) (MHz·km) | @850nm | | ≥600 | ≥200 |
| @1300nm | | ≥1200 | ≥600 |
| Numerical Aperture | | 0.200±0.015NA | 0.275±0.015NA |
| Cable Cut-off Wavelength λcc (nm) | ≤1260 | | |
 |  |
| Package 1 | Package 2 |
Package 1: usually for indoor cable, light weight cables.
Package 2: usually for outdoor cable, heavy weight cables
Usually for each roll, the cable length is 2km, but we could provide customized package for different cable lengths. |

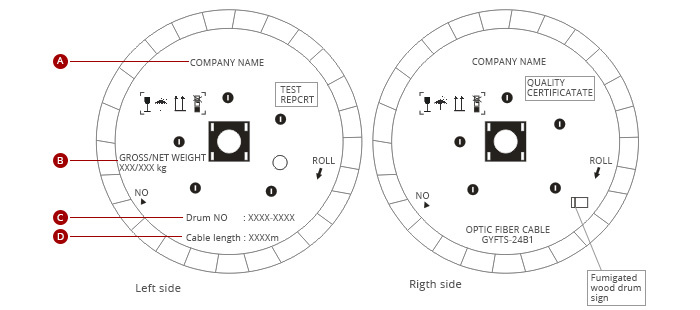

Mark
Usually we only attach Test Report on the out package of the cable, but we could also mark as your requirements, such as:
1. Company Name
2. Cross / Net weight
3. Drum No: XX
4. Cable Length : XX
Company Information
Dong Guan Tw-Scie Co., Ltd. Is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.
The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.
The main products of our enterprise are:
Optical fiber, optical cable, Optical media converter, optical transceiver, optical coupler, optical modem, optical connector, optical distribution frame.
DONGGUAN TW-SCIE Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication
Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.
The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.
The main products of our enterprise are:
Optical fiber, optical cable, Optical media converter, optical transceiver, optical coupler, optical modem, optical connector, optical distribution frame.
All of the products are widely used in telecom, electric power, railway and other related department, exporting France, India, Singapore, Malaysia.
