Lulink Electronics Technology Co., Ltd. >> Sm Simplex Sc Fiber Optic Patch Cord

Sm Simplex Sc Fiber Optic Patch Cord

Sm Simplex Sc Fiber Optic Patch Cord
Price: US $ 1.026-1.068/Piece
Min Order: 500/Piece
Pay Type: L/C,T/T,Paypal,Money Gram
Prod Model: LK03SC101
Diameter: 0.9 2.0 3.0
Insert Loss: <0.2dB
Return Loss: >50dB
Work Wavelength: 1310nm 1510nm
Work Temperature: -40 to 75
Application: Communication
Type: Single-mode Fiber
Connection Structure: SC
Certification: ISO9001
Sheath Material: LSZH

Product Description

             SM Simplex SC fiber optic patch cord
                "QUALITY IS OUR CULTURE"

Characteristics

1. Low insertion loss
2 good repeatability

3.big Return Loss
4.Mutual insert performance
5 good temperature stability


Application
1. An optical fiber communication system
2.optical access network

3 fiber-optic data transmission
4. Fiber optic CATV
5. A local area network (LAN)
6. Test equipment
7 fiber optic sensors
Technical Data
DataUnitFC,LC,SCArmored jumperSR,MUMT-RJ,MPOE2000
 SMMMSMMMSMMMSM
PCUPCAPC

PC

PCUPCPCPCUPCPCPCAPC
Insert lossDB≤0.3≤0.2≤0.3


≤0.3
≤0.3≤0.2≤0.2≤0.3≤0.2≤0.2≤0.3≤0.3

Return loss
DB≥45≥50≥60

≥30

≥45≥50≥30≥45≥50≥35≥55≥75
Work wavelengthNM1310,15101310,15101310,15101310,1510
Interchange abilityDB≤0.2≤0.2≤0.2≤0.2
VibrationDB≤0.2≤0.2≤0.2≤0.2
Work temperatureºC-40 to 75-40 to 75-40 to 75-40 to 75
Install temperatureºC-40 to 85-40 to 85-40 to 85-40 to 85
Fiber ODMM3.0/2.0/0.93.0/2.0/0.93.0/2.0/0.93.0/2.0/0.9

Pictures

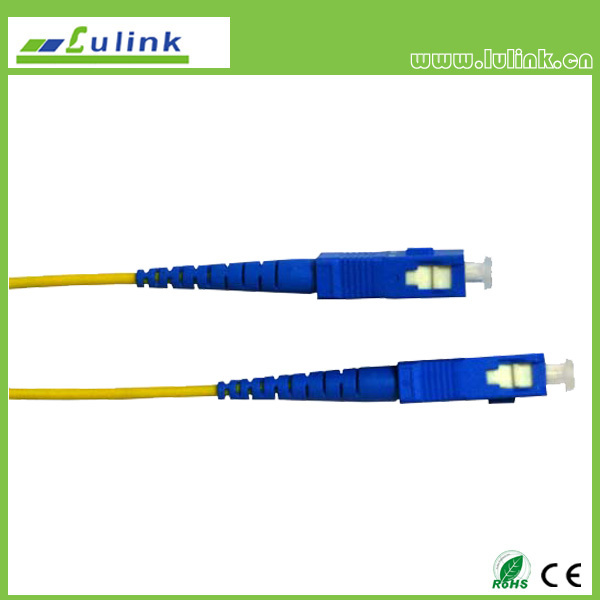

SC connector

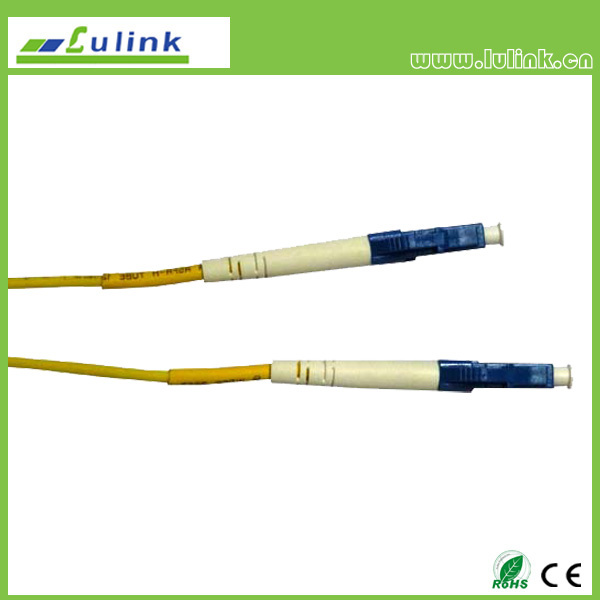

LC connector

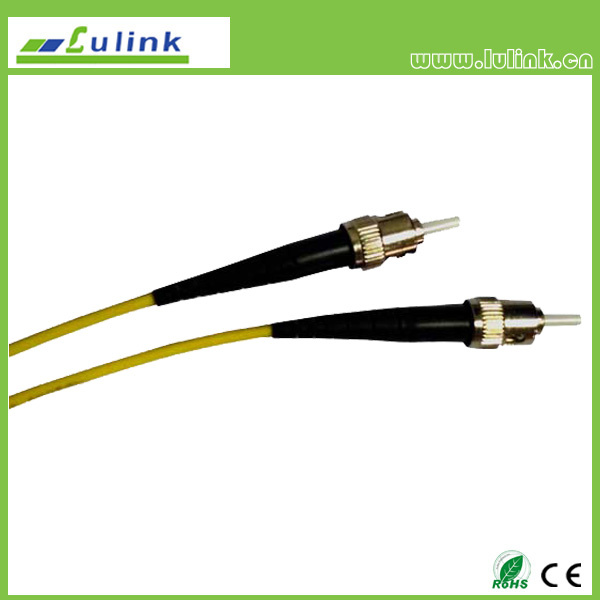

ST connector

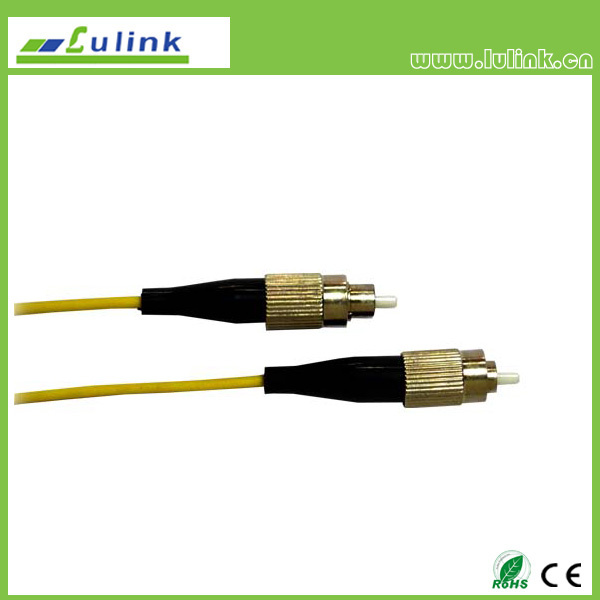

FC connector
