Sm10 Series Moulded Case Circuit Breaker

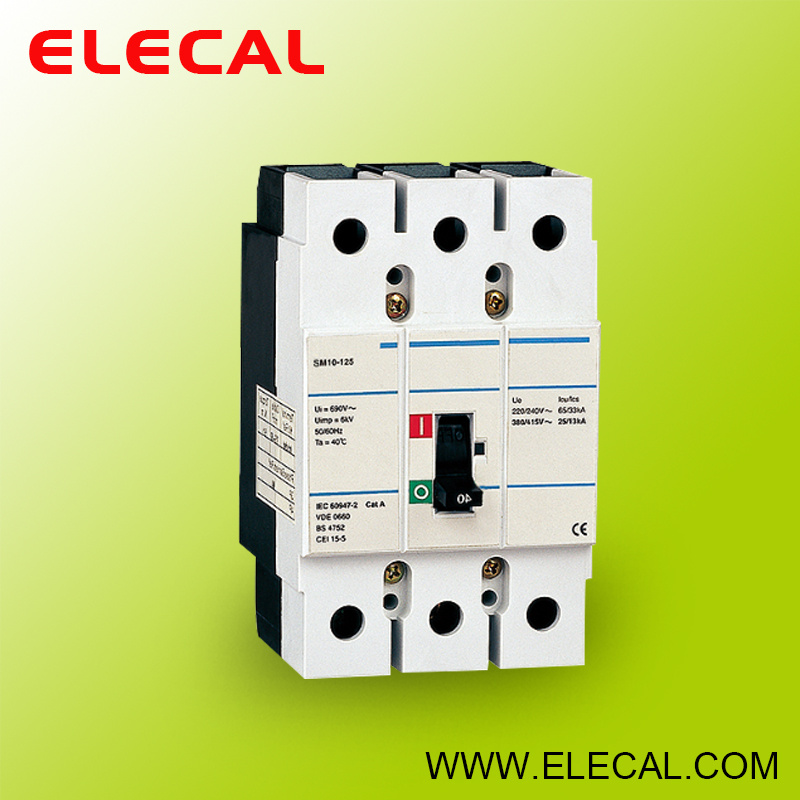

Name: Sm10 Series Moulded Case Circuit Breaker
Brand: all-electronics-online.com
SKU: 764756895
Availability: InStock
Rating: 4.7 (120 reviews)

Price:	US $ 1/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Breaking Capacity:	High Voltage Circuit Breakers
Operation:	Electric Type
Speed:	High-Speed Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Poles Number:	4
Structure:	Moulded Case Circuit Breaker

Product Description

1.Application
SM10 series MCCB is applicable circuit of AC 50/60Hz, rated insulation voltage 690V, ratedcurrent 16-250A, for distribute energy of electricity & infrequent making & breaking circuit innormal conditons, protecting when circuit are overload, short circuit. The product conforms toIEC60947-2 standard.

2. Specification

Type		SM10-125	SM10-250
Poles number		3	3
Rated current In(A)		16,20,25,32,40,50,60,80,100,125	63,80,100,125,160,200,225,250
Rated insulation voltage Ui(V)		690V	690V
Utilisation category		A	A
Rated impulse withstand voltage(KV)		6	8
Rated breakingcapacity (KA)Icu/Ics	220/240VAC	25/7	40/40
	380/415VAC	18/5	25/25
	660/690VAC	-	12/6

Our comany produce many electric appliance: Distribution box. Circuit breaker. Contactor. Relay and so on

We have an excellent working team. We produce every electric appliance carefiully and responsibly

Our electric appliances are used all over the word. We happily supply best productions and best service for every one

We hope cooperate with every friend from the word
