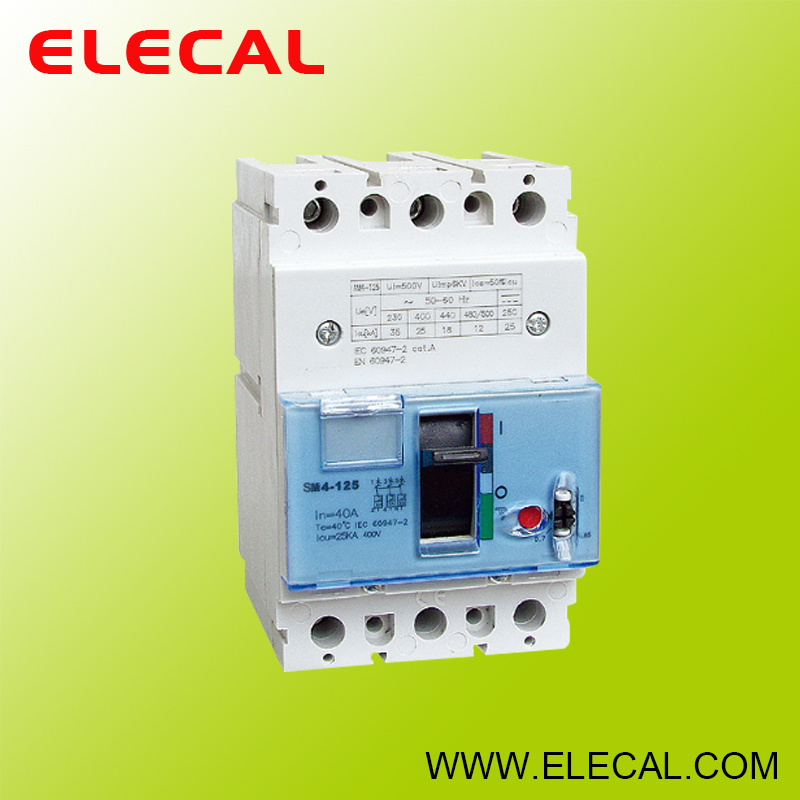

Sm4 Series Moulded Case Circuit Breakers

Name: Sm4 Series Moulded Case Circuit Breakers
Brand: all-electronics-online.com
SKU: 764700295
Availability: InStock
Rating: 4.6 (71 reviews)

Price:	US $ 1/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	SM4
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Breaking Capacity:	High Voltage Circuit Breakers
Operation:	Electric Type
Speed:	High-Speed Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Poles Number:	4
Structure:	Moulded Case Circuit Breaker

Product Description

1.Application
SM4 series MCCB is applicable circuit of AC 50/60Hz, rated current up to 400A, for distribute energy of electricity & infrequent making & breaking circuit in normal conditions. The products conforms to IEC60947-2.

2. Specification

Type	SM4-125	SM4-160	SM4-250	SM4-400
Poles number	3	3	3	3
Rated current In(A)	25~125	25~160	125~250	125~400
Rated working voltage Ue(V) (50/60Hz)	500	500	600	600
Rated working voltage Ue (V)	250	250	250	250
Rated insulation voltage Ui~(V)	500	500	690	690
Rated impulse voltage Uimp(kV)	6	6	8	8
Utilisation category	A	A	A	A
Rated limited short-circuit breaking capacity Icu(kA)	230/240V~	22	50	60	70
400/415V~	16	36	36	40
440V~	10	20	30	36
480/500V~	8	14	25	30
600V~	-	-	20	-
690V~	-	-	16	-
250V~	16	-	36	-
Rated short-circuit breaking service capacity Ics(%Icu)	100	100	100	100
Mechanical life	7000	7000	7000	5000
Electrical life	1000	100	1000	800
