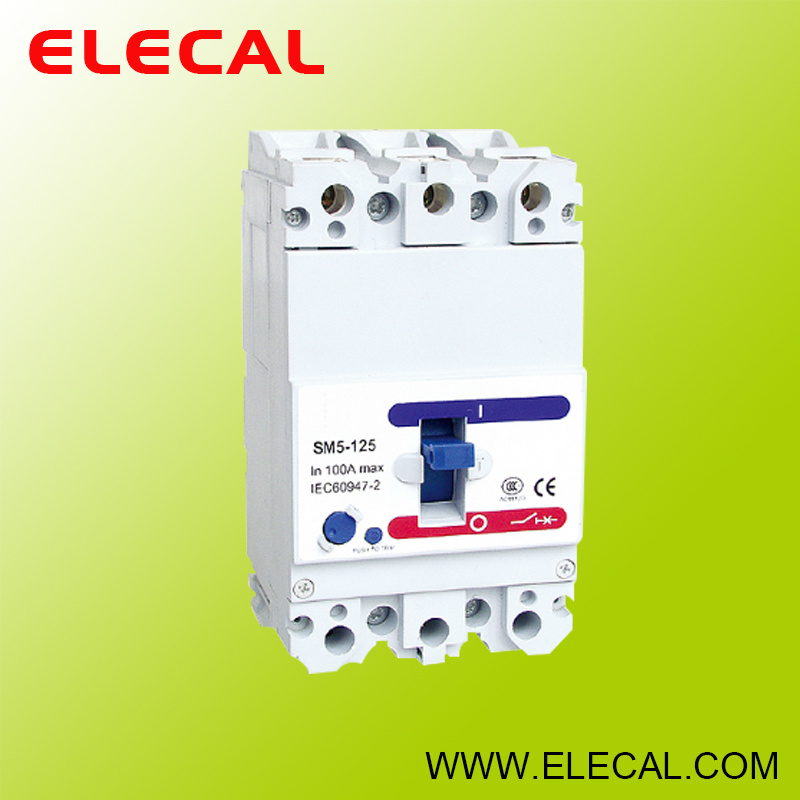

Sm5 Series Moulded Case Circuit Breaker

Name: Sm5 Series Moulded Case Circuit Breaker
Brand: all-electronics-online.com
SKU: 764700545
Availability: InStock
Rating: 4.5 (138 reviews)

Price:	US $ 1/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	SM5
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Breaking Capacity:	High Voltage Circuit Breakers
Operation:	Electric Type
Speed:	High-Speed Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Poles Number:	4
Structure:	Moulded Case Circuit Breaker

Product Description

1.Application
SM5 series MCCB is applicable circuit of AC 50/60Hz, rated insulation voltage 690V, ratedcurrent 16-250A, for distribute energy of electricity & infrequent making & breaking circuit innormal conditions, protecting when circuit is overloaded, short circuit. The products conforms toIEC60947-2 standard.

2. Specification

Type	SM5-125	SM5-250
Poles number	3	3
Rated current In(A)	16, 20, 32, 40, 50, 63,80, 100, 125	100, 160, 180, 200, 250
Utilisation category	A	A
Rated ultimate short-circuit breaking capacityIcu(KA) at 415V	16	25
Rated short-circuit service breaking capacityIcs(%Icu) at 415V	100	100

Our comany produce many electric appliance: Distribution box. Circuit breaker. Contactor. Relay and so on

We have an excellent working team. We produce every electric appliance carefiully and responsibly

Our electric appliances are used all over the word. We happily supply best productions and best service for every one

We hope cooperate with every friend from the word

www.elecal.com
