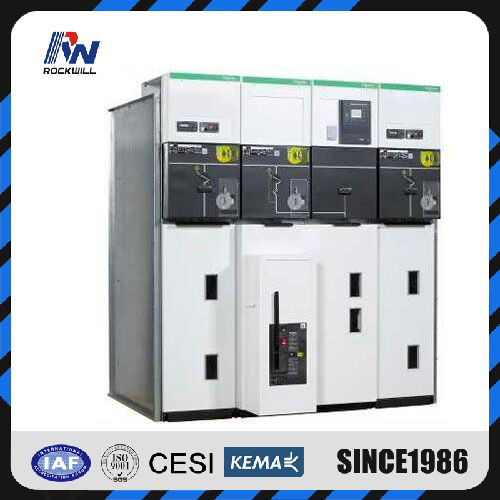

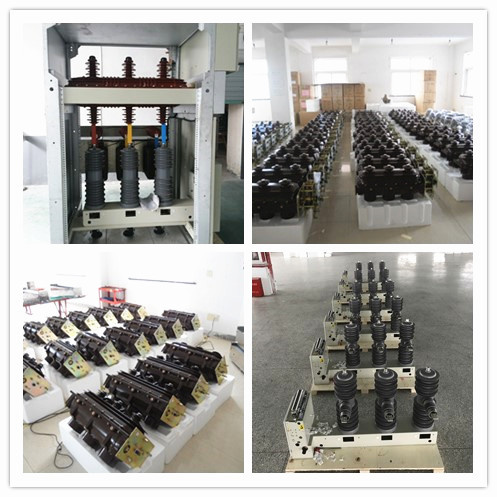

SM66 Air Insulation Ring Main Unit
Medium Voltage Switchgear
The Unisun enjoy more than 16 year experience manufacture SF6 Ring main Unit in china. We import first APG line from Germany to localized air pressure guage production craft, our APG manufacturing including SF6 switch disconnector, embedded pole and etc epoxy resin insulation parts. SM66 units are used for the MV section in MV/LV transformer substations in public distribution systems and MV consumer or distribution substations up to 24 kV.FeatureThe SM66 range is made up of modular units containing metal-enclosed SF6 switchgear, using Sulphur hexafluoride (SF6) or vacuum:switch-disconnector;VD4S vaccum circuit breaker;Vacuum contactor;disconnerctor. Unit definitionsBelow is the list of SM66 range units used in MV/LV transformer substations and industrial distribution substations:IM, IMC, IMB switch;PM fused switch;QM, QMC, QMB fuse-switch combination;CRM contactor and contactor with fuses;DM1-A, DM1-D, DM1-S single-isolationSF6 type circuit breaker;DMV-A, DMV-D, DMV-S single-isolationvacuum type circuit breaker;DM1-W, DM1-Z withdrawable single-isolationSF6 type circuit breaker;DM2 double-isolation SF6 type circuit breaker;CM, CM2 voltage transformers;GBC-A, GBC-B current and/or voltagemeasurements; StandardsSM66 units meet all the following recommendations, standards and specifications:IEC:60694:IEC62271-200IEC60265IEC60420IEC60255IEC62271-100IEC62271-102
Main characteristics| Rated voltage (kV) | 7.2 | 12 | 17.5 | 24 |
| Insulation level | | | | |
| 50 Hz, 1 mn | Insulation | 20 | 28 | 38 | 50 |
| (kV rms) | Isolation | 23 | 32 | 45 | 60 |
| 1.2/50μs | Insulation | 60 | 75* | 95 | 125 |
| (kV peak) | Isolation | 70 | 85 | 110 | 145 |
| Breaking capacity |
| Transformer off load (A) | 16 |
| Cables off load (A) | 31.5 |
| Short-time withstand current | 25 | 630 - 1250 A |
| (kA.1 s) | 20 | 630 - 1250 A |
| | 16 | 630 - 1250 A |
| | 12.5 | 400 - 630 - 1250 A |
The making capacity is equal to 2.5 times the short-time withstand current.
* 60 kV peak for the CRM unit.
Maximum breaking capacity| Rated voltage (kV) | 7.2 | 12 | 17.5 | 24 |
| Units | |
| IM, IMC, IMB, | 630 A - 800 A* |
| NSM-cables, NSM-busbars |
| PM, QM, QMC, QMB | 25 kA | | 20 kA | |
| CRM | 10 kA | 8 kA | | |
| CRM with fuses | 25 kA | | | |
| SF6 circuit breaker range: |
| DM1-A, DM1-D, DM1-W, DM1-Z, DM1-S, DM2 | 25 kA | 20 kA |
| Vacuum circuit breaker range: |
| DMV-A, DMV-D, DMV-S | 25 kA | 20 kA |
| | | | | | | |
* in 800 A consult us.
