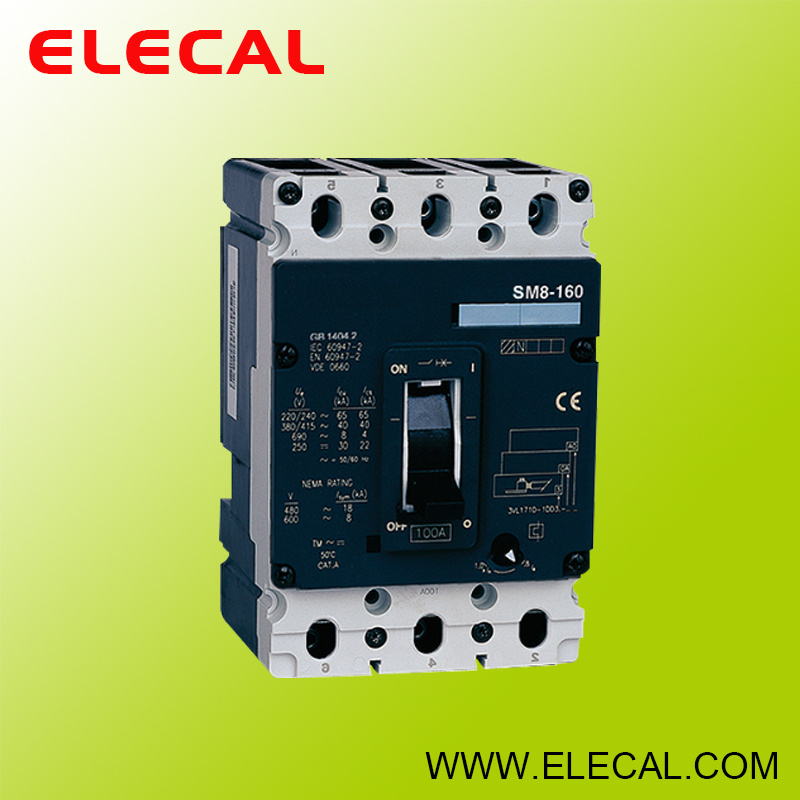

Sm8 Series Moulded Case Circuit Breakers

Sm8 Series Moulded Case Circuit Breakers
Price: US $ 1/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: T/T
Prod Model: SM8
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Breaking Capacity: High Voltage Circuit Breakers
Operation: Electric Type
Speed: High-Speed Circuit Breaker
Arc-extinguishing Medium: Air
Installation: Fixed
Poles Number: 4
Structure: Moulded Case Circuit Breaker

Product Description

1.Application
SM8 series MCCB is one of new products developed and manufactured by adopting international advanced technology. It is supplied with rated insutating voltage 690V and used for circuit of AC 50/60Hz, rated operating voltage AC 415V or below, rated opereating current from 16A to 630A. It is designed for protection of electric circuit, motors, transformers and other equipments. The products conforms to IEC60947-2 standard.


2. Specification
TypeSM8-160XSM8-160SM8-250SM8-400SM8-630
Poles number33333
Rated current In(A)20~160A50~160A100~250A200~400A315~400A
Rated operating voltage Ue(V) AC 50/60Hz690690690690690
Rated insulation voltage Ui(V)800800800800800
Rated impulse withstand voltage Uimp(KV)88888
Utilisation categoryAAAAA
Rated ultimate short-circuit breaking capacityIcu(KA)AC 220/240V6565656565
 AC 380/415V4040404040
 AC 690V812121212
Rated short-circuit servicebreaking capacityIcs(KA)AC 220/240V6565656565
 AC 380/415V4040404040
 AC 690V46666

Thermomagnetic
T(thermal)
M(maghetic)

SM8-160XSM8-160SM8-250
InT adjustable
(0.8~1.0In)
M
fixed
InT adjustable
(0.8~1.0In)
M adjustableInT adjustable
(0.8~1.0In)
M adjustable
20A16~20A300A50A40~50A300~600A200A160~200A1000~2000A
32A25~32A300A63A50~63A300~600A250A200~250A1200~2500A
40A32~40A600A80A63~80A400~800A
50A40~50A600A100A80~100A500~1000A
63A50~63A600A125A100~125A625~1250A
80A63~80A1000A160A125~160A800~1600A
100A80~100A1000A
125A100~125A1000A
160A125~160A1500A



SM8-400SM8-630
InT adjustable(0.8~1.0In)M adjustableInT adjustable(0.8~1.0In)M adjustable
200A160~200A1000~2000A315A250~315A1575~3150A
250A200~250A1200~2500A400A315~400A2000~4000A
315A250~315A1575~3150A500A400~500A2500~5000A
400A315~400A2000~4000A630A500~630A3250~6500A

3. Outline and Installation Dimension


Our comany produce many electric appliance: Distribution box. Circuit breaker. Contactor. Relay and so on

We have an excellent working team. We produce every electric appliance carefiully and responsibly

Our electric appliances are used all over the word. We happily supply best productions and best service for every one

We hope cooperate with every friend from the word
