SMA Female 2 Holes Flange Connector with Stub Terminal Extended 4mm Insulator and 3mm Pin

SMA Female 2 Holes Flange Connector with Stub Terminal Extended 4mm Insulator and 3mm Pin
Price: US $ 0.01-1/Piece
Min Order: 5000/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal

Product Description




Product Description

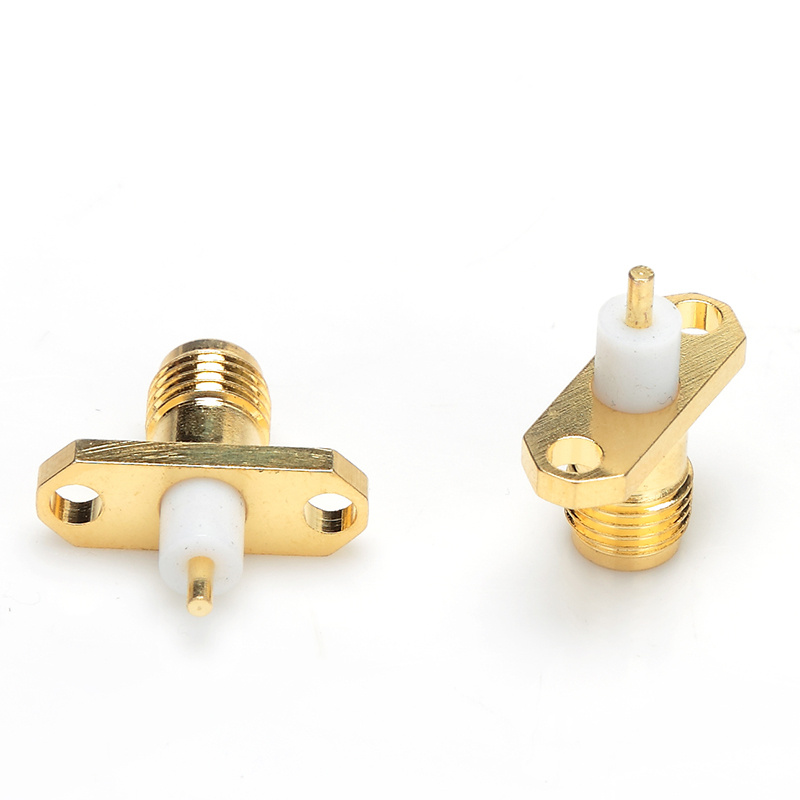

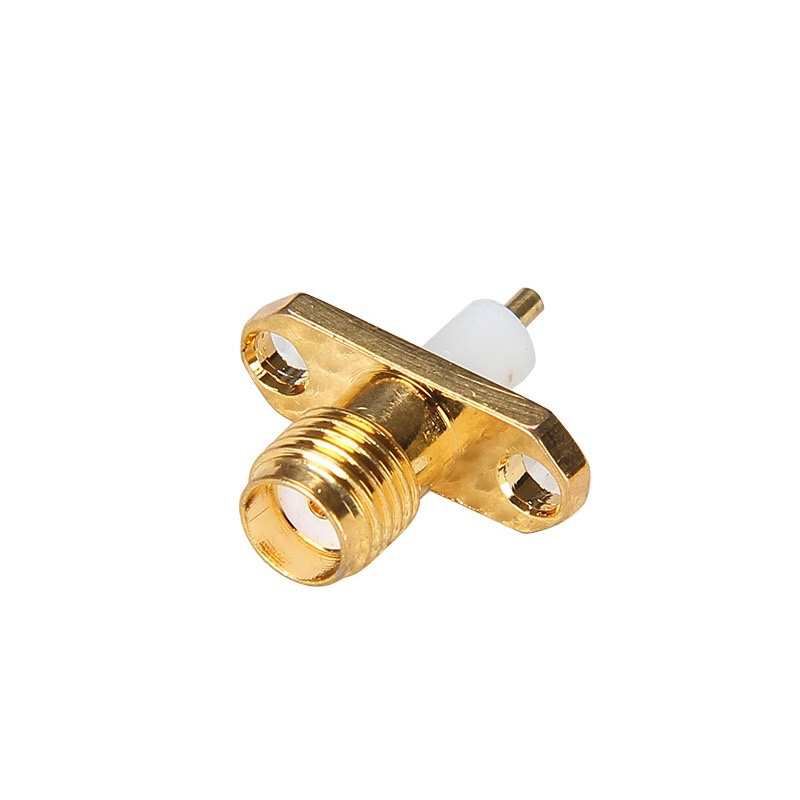

SMA female 2holes flange connector with Stub Terminal extended 4mm insulator and 3mm pin
Model No.SMA-2KF-4-3A
Interface IEC 60169-15
Electrical
Characteristic Impedance 50ohm
Frequency Range                                            DC-12.4GHz
VSWR           ≤1.10@DC-3GHz
Working Vlotage 335V RMS,50Hz,at sea level
Dielectric Withstanding Voltage≥1000V RMS,50Hz,at sea level
Dielectric Resistance  ≥5000MΩ
Contact Resistance   Center Contact ≤3mΩ  Outer Contact ≤2.5 mΩ
Durability  Mating cycles  ≥500
Material and Plating
Parts NameMaterial Plating
BodyBrass Au
Insulator PTFE(Teflon)-
Inner Conductor Phosphor Copper  Au
Operating Temperature-40 ºC~-85  ºC
RoHs Compliant Yes
Jiangsu Telaisi Electronical Equipment Co., Ltd was founded in 1995 and located in Jiangsu Province. Our factory is a professional manufacturer of R&D, producing RF connectors and cable assemblies, processing various components.

The factory independently developed products commonly used specifications of SMA\SMB\SMC\BNC\L9\MCX\MMCX\TNC\FME\RCA connectors, RG59\RG6\RG11 series connector heads and all kinds of waterproof connector. The factory has a professional R&D team, combined with years of R&D experience, can address the specific customer needs and can provide customers with professional technical support.

Our factory is not only committed to continue to build and improve the product platform but also to establish Quality Management System and Environmental Management System at the same time, and provide solid backing for the factory's sustainable and stable development. The factory passed ISO9001 quality management system certification and ISO10041 environment system certification in 2008. Our products obtained from Taiwan\Japan\Vietnam\Thailand\Europe&America and the domestic customer's recognition and praise.

Since the plant, we have taken the market as the core, taken the product as the guideline, taken technology as the foundation, taken the quality as the lifeblood. For the domestic and foreign markets, we implement brand strategy and take brand development.

Our factory has a broad market prospects. Products are widely used in CATV communication digital network\aerospace industry\satellite transmission\photoelectric transmission and other types of industrial, civil and military fields.

We sincerely welcome domestic and foreign customers to come to discuss cooperation and common development.
