| Prod Model: |
SMA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black |
| Fiber Mode: |
Multimode |
| Body Material: |
Metal |
| Adapter Color: |
Metal |
| Channels: |
Simplex |
| Transmission Medium: |
Multimode |
| Number Of Cores: |
Single-Core |
| Ferrule Endface: |
PC(',UPC) |
| Structure: |
SMA |
| Connector Type: |
SMA |
| Brand: |
ODM |
Product Description
With 15 years history, KOC is a well-established brand popularly accepted in the world-wide market, especially in European and American countries. We are a professional manufacturer of most passive parts such as patch-cord, connector, adapter, attenuator,splitter, WDM serious. For more detail, please check on our website www.koc.com.cn.
In case of need, please do not hesitate in contacting us.
Product Description
Brief introduction:

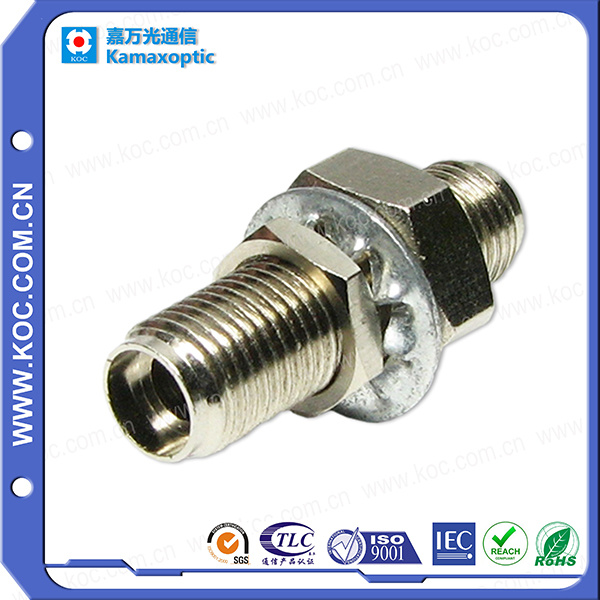

The SMA adapters are use ceramic sleeve to connect connectors although they are different size and appearance
Each species has a lot of types and colors can be chose
Single mode and multi-mode are different performance and price
These adapters can locking the connectors and get low insertion loss to transmission optical signal, ARK's adapters are meet the Telcordia and IEC-61754 stander, all material compliance RoHS require
Features:
Great repeatability and interchangeability
Low insertion loss
High reliability
Compliant with IEC and RoHS standards
Applications:
Test equipment
Connection of optical links in optical active devices
Jumper connection
Production and testing of optical devices
Optical fiber communication system/CATV
LANs and WANs
FTTx
Specifications:
Fiber mode: Multimode
Adapter color: metal
Test wavelengths: 850nm & 1300nm
Insertion loss: typical≤0.15dB,Max≤0.20dB.
Repeatability: ≤0.10dB
Interchangeability: ≤0.20dB
Durability: ≤0.20dB
Maximum change,1000 mating
Channels: Simplex
Body material: metal
Sleeve material: Ceramic (ZrO2)
Operating temperatures :-20ºC to +70ºC
Storage temperatures: -40ºC to +85ºC
Note: The FOB price range is MM simplex adapter
FEATURESHigh precision alignmentNickel plated brass bodyCompact designLow insertion loss and back reflection lossChoice of housing shape and sleeve material| Insertion Loss | <0.20dB |
| Durability | <0.20 dB typical change, 1000 matings |
| Operating Temperature | -40 to + 85°C |
Shenzhen KOC Communication Co., Ltd. Is specialized in fiber optic communication product manufacture. Our products range from the basic components to end products, including passive and active categories as follows: Basic Components: Connector kits, Adapter kits, Attenuator kits.
Passive products: Connector, Adapter, Attenuator, Patch-cord, ODF and enclosure.
Active products: Media converter, Transmitting and receiving assemblies, such as laser diode assembly, PD and PIN/TIA assembly, sub-assemblies such as TOSA, ROSA, BOSA.
FTTH System: Gpon: OLT, ONU, PLC
Headquarter located in Shenzhen, China, we have branch companies, representatives and distributors in Europe, America, Middle East, South Asia. KOC products are well accepted and sold in these areas.
We provide all our products with high quality, competitive price, short delivery lead time and excellent after-sales services.
About KOC
Located in Shenzhen, China, KamaxOptic Communication Co. Ltd., well-known as KOC, is specialized in fiber optic communication products and accessories. She offers precise customized solutions for various customers involved in telecommunication, broadcast, CATV and network industry worldwide.
Our quality is guaranteed by the scientific management with the assistances of professional personnel, advanced testing equipments and efficient ERP system under the strict guidance of ISO9001: 2000, from supplier evaluation to inbound material examination, from processing monitoring to permanent inspection, from packing to shipping. We do care for every detail!
To be dedicated to be a popular manufacturer with her quality products, satisfactory services and attention to details through the full commitment of each personnel to work as one team in an effort to exceed our customer expectations.
To operate the business in a transparent and honest manner, that our customers, our associates and our business partners are proud to play their part in our success.
Please visit us website for more information: http://www.koc.com.cn
