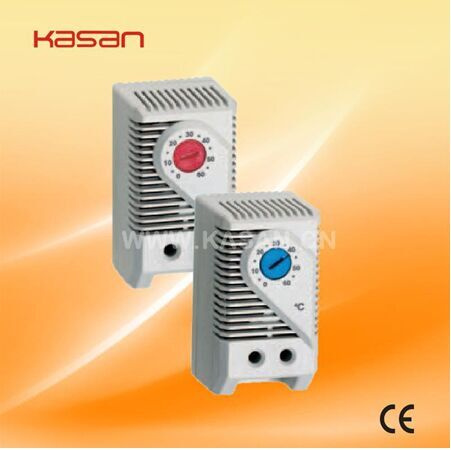

Small Compact Thermostat Kto/Kts 011

Name: Small Compact Thermostat Kto/Kts 011
Brand: all-electronics-online.com
SKU: 699465442
Availability: InStock
Rating: 4.3 (52 reviews)

Price:	US $ 1.1-1.5/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	KTo
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Theory:	Temperature Controller
Certification:	CCC
Type:	Temperature Controller
Usage:	Ventilation
Control Type:	Mechanical
Display Type:	LED

Product Description

2014 New adjustable mechanical termostat
Brief Introduction
Saip/Saipwell high quality washing machine parts thermostat kto 011/ kts 011

The KTS011 is used for 2-position control with on/off output for the control the temperature by means of an NTC sensor placed externally or internally in the thermostat.The thermostat acquires the room temperature with its built-in sensor or floor sensor, and the heating contact will close when the room temperature falls below the selected setpoint.
KTO 011: Thermostat (normally closed); contact breaker for regulating heaters.
KTS 011: Thermostat (normally open); contact maker for regulating of filter fans and heat exchangers or for switching signal devised when temperature limit has been exceeded

Switch temperature difference	7K (± 4K tolerance)
Sensor element	thermostatic bimetal
Contact type	snap-action contact
Service life	> 100,000 cycles
Max. Switching capacity	250VAC, 10 (2) A
	120VAC, 15 (2) A
	DC 30W
Connection	2-pole terminal, clamping torque 0.5Nm max.: rigid wire 2.5mm² stranded wire (with wire end ferrule) 1.5mm²
Mounting	clip for 35mm DIN rail, EN60715 (or for exit filter EF 118 Series)
Casing	plastic according to UL94 V-0, light grey
Dimensions	60 x 33 x 43mm
Weight	approx. 40g
Fitting position	variable
Operating / Storage temperature	-45 to +80°C (-49 to +176°F)
Operating / Storage humidity	max. 90 % RH (non-condensing)
Protection type	IP20
