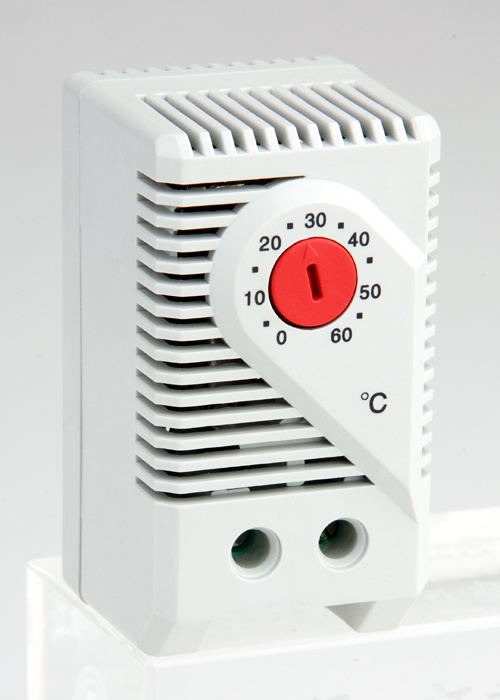

Small&High Sensitivity Kto 011/Kts 011 Small Compact Thermostat

Name: Small&High Sensitivity Kto 011/Kts 011 Small Compact Thermostat
Brand: all-electronics-online.com
SKU: 664327232
Availability: InStock
Rating: 5 (134 reviews)

Price:	US $ 1.46/Piece
Trade Terms:	FOB,others
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	KTO 011/KTS 011
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Size:	60X33X43mm/40g
Theory:	Temperature Controller
Usage:	Air Purifier
Certification:	CE
Control Type:	Mechanical
Type:	Temperature Controller
Display Type:	LED

Product Description

- Large setting range
- Small size
- Simple to mount
- High switching performance

KTO 011: Thermostat (normally closed); Contact breaker for regulating heaters.

KTS 011: Thermostat (normally open); Contact maker for regulating of filter fans and heat exchangers or for switching signal devised when temperature limit has been exceeded.

Switch temperature difference	7K (± 4K tolerance)
Sensor element	thermostatic bimetal
Contact type	snap-action contact
Contact resistance	< 10m
Service life	> 100, 000 cycles
Max. Switching capacity	250VAC, 10(2) A 120VAC, 15(2) A DC 30W
EMC	acc. to EN 55014-1-2, EN 61000-3-2, EN 61000-3-3
Connection	2-pole terminal, clamping torque 0.5Nm max: rigid wire 2.5mm 2 stranded wire (with wire end ferrule) 1.5mm 2
Mounting	clip for 35mm DIN rail, EN50022 (or for exit filter EF 118 Series)
Casing	plastic according to UL94 V-0, light grey
Dimensions	60× 33× 43mm
Weight	approx. 40g
Fitting position	variable
Operating / Storage temperature	-45 to +80º C (-49 to +176º F)
Protection type	IP20
