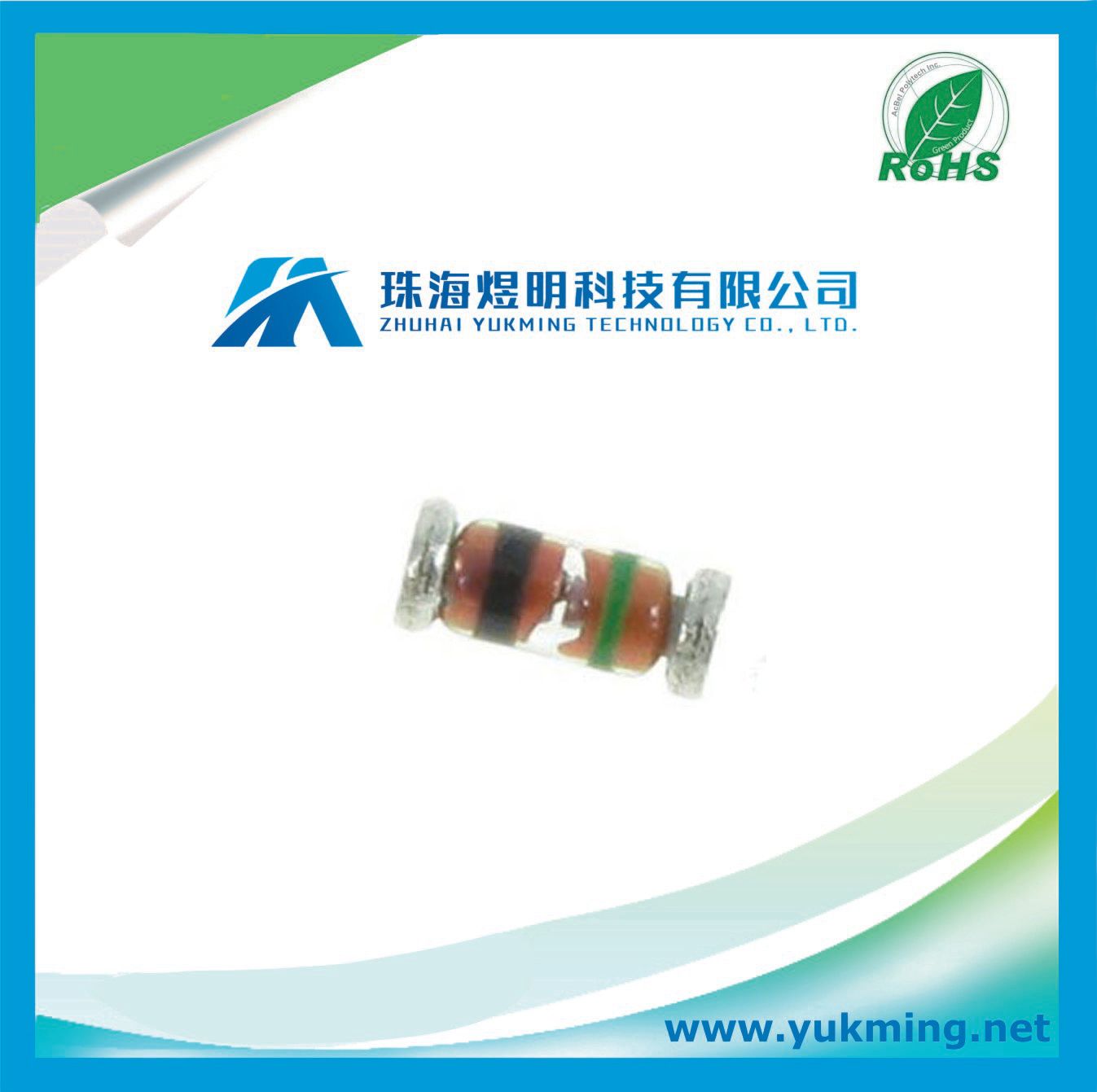

Small Signal Diode Ll4148 of Electroni Component for PCB Assembly

Name: Small Signal Diode Ll4148 of Electroni Component for PCB Assembly
Brand: all-electronics-online.com
SKU: 797149025
Availability: InStock
Rating: 4.3 (97 reviews)

Price:	US $ 0.0187/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LL4148
Peak Reverse Repetitive Voltage (V):	100
Maximum Continuous Forward Current (a):	0.2
Peak Non-Repetitive Surge Current (a):	2
Peak Forward Voltage (V):	[email protected]
Peak Reverse Current (Ua):	0.025@20V
Peak Reverse Recovery Time (Ns):	4
Maximum Power Dissipation (MW):	500
Shape:	SOD-80

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

MANUFACTURER
Fairchild Semiconductor

PRODUCT CATEGORY
Rectifier

DESCRIPTION
Diode Small Signal Switching 100V 0.2A 2-Pin SOD-80 T/R

Converting from AC to DC is simple when using a small signal switching diode LL4148 rectifier from Fairchild Semiconductor. Its maximum power dissipation is 500 mW. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. Its peak non-repetitive surge current is 2 A, while its maximum continuous forward current is 0.2 A. This rectifier has an operating temperature range of -55 °C to 175 °C. It is made in a single configuration.

Features
• Fast Switching Speed
• Surface Mount Package Ideally Suited for
Automatic Insertion
• General Purpose Rectification
• Silicon Epitaxial Planar Construction

Application
• Case: MiniMELF
• Terminals: Solderable per MIL-STD-202,
Method 208
• Polarity: Cathode Band
• Marking: Cathode Band Only
• Weight: 0.05 grams (approx.)

Specifications
EU RoHS Compliant
Type Small Signal Switching Diode
Configuration Single
Peak Reverse Repetitive Voltage (V) 100
Maximum Continuous Forward Current (A) 0.2
Peak Non-Repetitive Surge Current (A) 2
Peak Forward Voltage (V) [email protected]
Peak Reverse Current (uA) 0.025@20V
Peak Reverse Recovery Time (ns) 4
Maximum Power Dissipation (mW) 500
Minimum Operating Temperature (°C) -55
Maximum Operating Temperature (°C) 175
Packaging Tape and Reel
Operating Junction Temperature (°C) -55 to 175

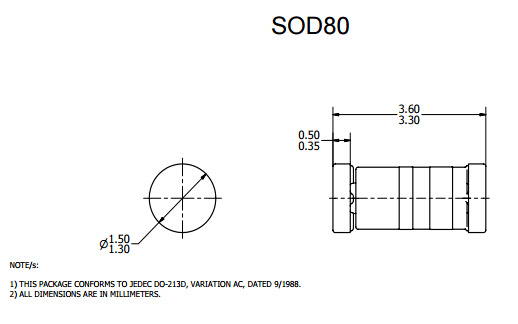

Package Diameter (mm) 1.5(Max)
Mounting Surface Mount
Package Length (mm) 3.6(Max)
PCB changed 2
Standard Package Name SOD
Supplier Package SOD-80
Pin Count 2
Lead Shape No Lead
