Small Signal Schottky Diode Bas85-GS18 of Electronic Component

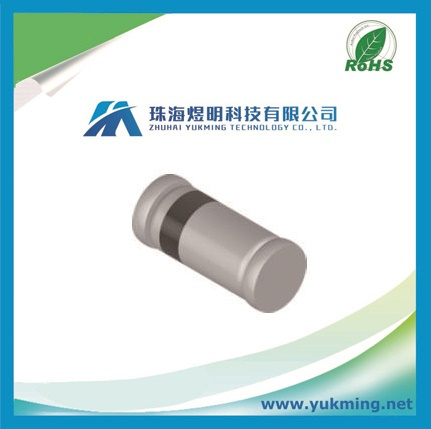

Name: Small Signal Schottky Diode Bas85-GS18 of Electronic Component
Brand: all-electronics-online.com
SKU: 800791665
Availability: InStock
Rating: 4.8 (106 reviews)

Price:	US $ 0.1773/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	BAS85-GS18
Category:	Schottky Diodes
Peak Inverse Voltage:	30V
Forward Continuous Current:	0.2A
Max Surge Current:	0.6A
Forward Voltage Drop:	0.8 V at 0.1 a
Max Operation Temp.:	125
Mounting:	SMD/SMT
Max Reverse Leakage Current:	2 Ua at 25 V
Allocation:	Single
Series:	Basxx

Product Description

Small Signal Schottky Diode

Features
• For general purpose applications
• This diode features low turn-on voltage
• The devices are protected by a PN junction
guard ring against excessive voltage,
such as electrostatic discharges
• This diode is also available in a DO35 case with
type designation BAT85
• Lead (Pb)-free component
• Component in accordance to RoHS 2002/95/EC
and WEEE 2002/96/EC

Applications
• Applications where a very low forward voltage is
Required

Mechanical Data

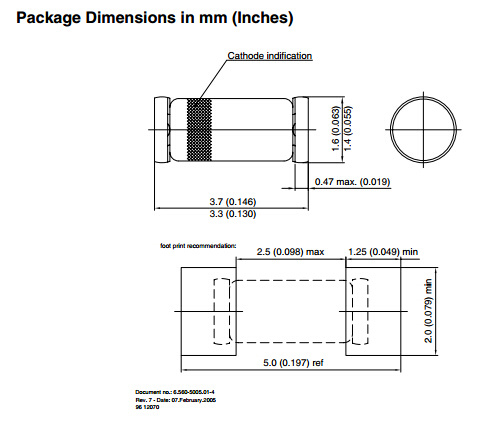

Case: MiniMELF Glass case SOD80
Weight: approx. 31 mg
Cathode Band Color: black
Packaging Codes/Options:
GS18 / 10 k per 13" reel (8 mm tape), 10 k/box
GS08 / 2.5 k per 7" reel (8 mm tape), 12.5 k/box
