| Prod Model: |
HW-MN5 |
| Supply Voltage: |
DC 3.7V-24V |
| Quiescent Disspation: |
<3mA |
| Trigger Way: |
Repeat(Default) |
| Frequency: |
2.5GHz-5.8GHz |
| Delay Time: |
Default 2s ( Adjustable) |
| Size: |
4mmx20mmx11mm |
| Distance: |
Normal=5m, Custom=3m-15m |
| Angle: |
180-360 |
| Output: |
Directly with a Large Load |
| Metal Coating: |
Tin |
| Mode Of Production: |
SMT |
| Layers: |
Double-Layer |
| Base Material: |
FR-4 |
| Customized: |
Customized |
| Condition: |
New |
| Certification: |
Ce |
Product Description

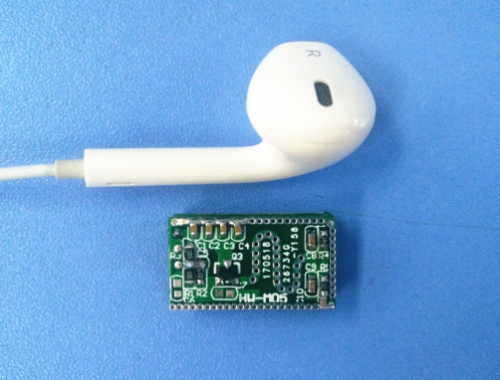

Small Size Super Mini Microwave Radar Sensor Module Promotional 3.7V~24VDC input voltage Motion Sensor Detector detection Module for electronics products HW-MN5
Ultra-thin microwave sensor module for long distance motion sensor module Adjustable distance and deleay time HW-MN5
HW-MN5 microwave module, Samples can be sent to you for testing

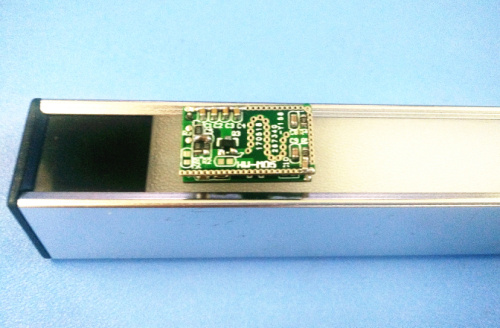

1.Detail:HW-MN5 is our company newly developed MN series in a dual PCB microwave sensor module. The product is particularly suited to ultra-thin design of intelligent household appliances, security products, lighting products and other electronics. The strength of the strong compatibility and high performance advantages, are the leading features of the dual panel module.
We can custom the module as your request, welcome to ask me.OEM is highly welcomed.
2.Technical parameters:| NO. | Items of parameter | Specifications of parameter |
| 01 | Power Supply input Voltage | 3.7V~24VDC(by custom) |
| 02 | Output voltage | 3V/0V |
| 03 | Quiescent Dissipation | <3MA(without load) |
| 04 | Output Way | High Low Level VCC=3V/0V |
| 05 | Sensor distance | Default: 5m( can be customized in 3-15m) |
| 06 | Delay-time for output | Default:2sec, can be customized |
| 07 | frequency range | FT=2.5GHz-5.8GHz |
| 08 | Outline size | Dual-PCB:4mmx20mmx11mm |
3. Warm note:About false detecting 1.to ensure the voltage ripple of DC input voltage is not big, keep it in the range of 3.7v-24v to input.
2.make sure that there is not any moving object within sensing range when the product is tested.
3.there is approximately 10s-30s initialization time after power on. This is non-normal detecting during this period, it may cause false detecting.
4.The sensor is relatively sensitive when tested indoors. The surrounding shall remain static, and to ensure that the end of the first sensor signal cycle before the next step of the test; When tested outdoors, please pay attention to the surrounding environment, such as flying birds, pedestrians, passing cars and so on;The adjustment for delay timeThere is a time resistor welded on the back of the module to change the delay time.The bigger the resistance value is, the longer the delay time is. The adjustment for distanceThere is a distance resistor welded on the back of the module to change the distance.The bigger the resistance value is, the further the distance is.

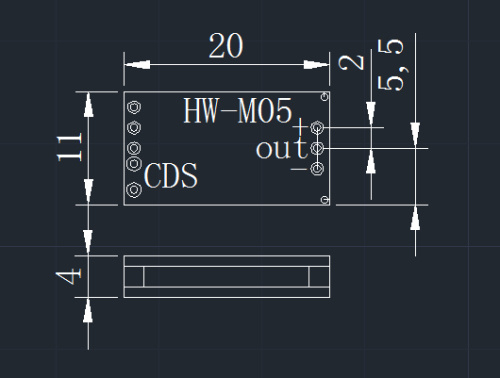

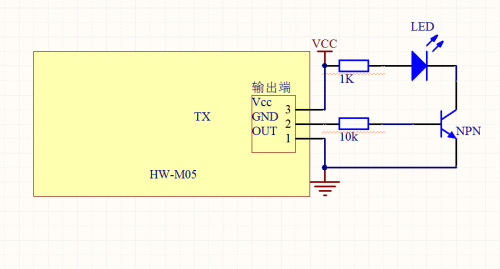

4. wiring diagram and size
