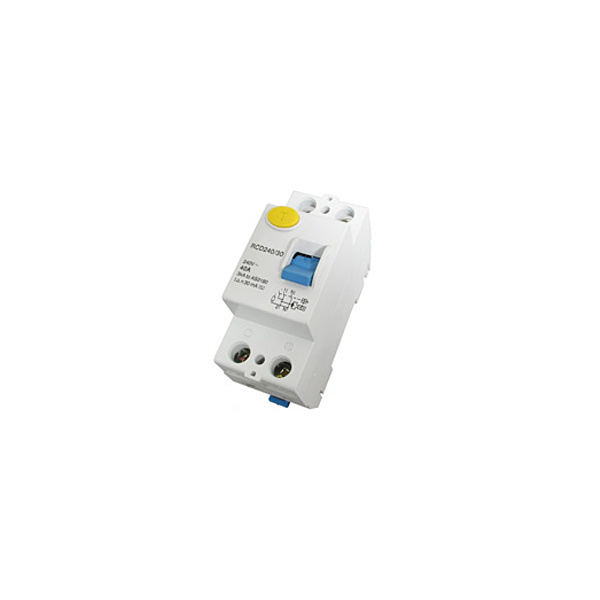

Sml4-63 RCD/RCCB

Prod Model:	RCD 2P 63A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Breaking Capacity:	High Voltage Circuit Breakers
Operation:	Electric Type
Speed:	High-Speed Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Poles Number:	4
Certification:	CE
Structure:	Moulded Case Circuit Breaker

Product Description

Apllication
Residual current circuit breakers RCD are used for protection against indirect touching of parts under voltage, for prevention of lasting voltage on earthed parts which should appear because of a defect in the electrical installation and for protection against direct contacts of parts under voltage in case of In<30mA. Residual current circuit breakers can be used in TN-S, TT and IT network systems or with other words in all systems where neutral and protective conductor are separated(VDE 0100 Teil 410).

	Residual current circuit breakers RCD are used for protection against indirect touching of parts under voltage, for prevention of lasting voltage on earthed parts which should appear because of a defect in the electrical installation and for protection against direct contacts of parts under voltage in case of In<30mA. Residual current circuit breakers can be used in TN-S, TT and IT network systems or with other words in all systems where neutral and protective conductor are separated(VDE 0100 Teil 410).
Specification
Model SML4-63-2P SML4-63-4P Rated voltage 230V 230/400V Rated current 16A,25A,32A, 40A, 63A, 80A Rated residual current 0.03A, 0.1A, 0.3A, 0.5A Back-up fuse 80A gG IP code IP40 Isolating class B Cross-section of connecting lead 1-25mm2 Type A type, AC type Standards IEC 61008, EN 61008
