SMPS 100W 5V 20A Switching Power Supply with Short Circuit Protec

Name: SMPS 100W 5V 20A Switching Power Supply with Short Circuit Protec
Brand: all-electronics-online.com
SKU: 820075835
Availability: InStock
Rating: 4.7 (114 reviews)

Price:	US $ 6.5-8/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	S-100W-5V
Output Type:	Single
Output Power:	51 - 100W
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	RoHS
Warranty:	Lifetime Warranty
Input Voltage:	110V/220V
Brand:	Waw

Product Description

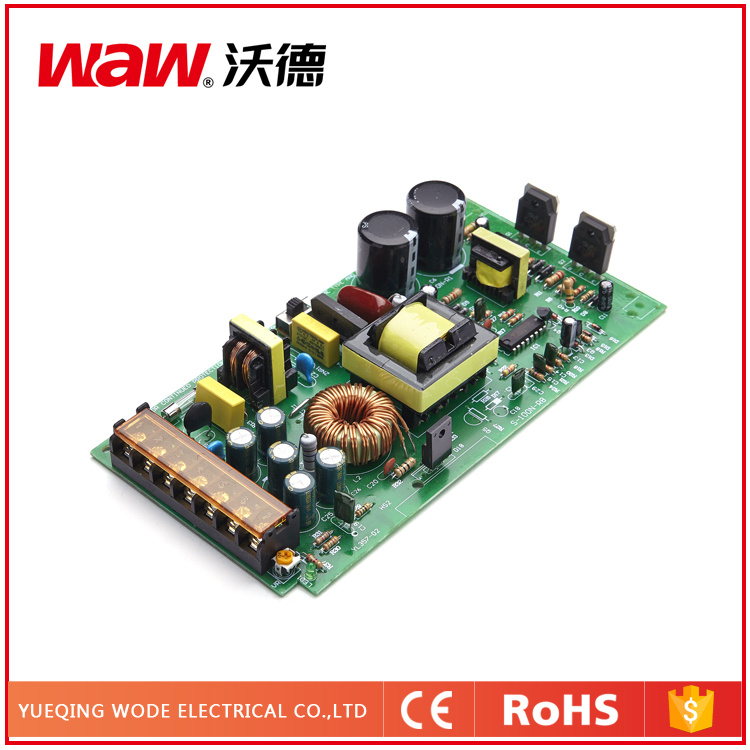

SMPS 100W 5V 20A switching power supply with short circuit protection

Product Description

Features

1.High Efficiency and good price

2.Built-in EMI filter

3.100% full load burn-in test

4.Low output ripple and noise
5.Protection:Over load/Over voltage/Short circuit

6.LIFETIME WARRANTY

Specifications

MODEL		S-100-5	S-100-7.5	S-100-12	S-100-15	S-100-24	S-100-48
OUTPUT	DC VOLTAGE	5V	7.5V	12V	15V	24V	48V
	RATED CURRENT	20A	13.6A	8.5A	6.7A	4.5A	2A
	CURRENT RANGE	0 ~ 20A	0 ~ 13.6A	0 ~ 8.5A	0 ~ 6.7A	0 ~ 4.5A	0 ~ 2A
	RATED POWER	100W	102W	102W	100.5W	108W	96W
	RIPPLE & NOISE (max)	80 mVp-p	100mVp-p	100mVp-p	100mVp-p	100mVp-p	120mVp-p
	VOLTAGE ADJ. RANGE	4.75 ~ 5.5V	6.75 ~ 8.25V	10.8 ~ 13.2V	13.5 ~ 16.5V	21.6 ~ 26.4V	43.2 ~ 52.8V
	VOLTAGE TOLERANCE	±2.0%	±1.0%	±1.0%	±1.0%	±1.0%	±1.0%
	LINE REGULATION	±0.5%	±0.5%	±0.3%	±0.3%	±0.2%	±0.2%
	LOAD REGULATION	±0.5%	±0.5%	±0.3%	±0.3%	±0.2%	±0.2%
	SETUP, RISE, HOLD TIME	200ms, 80ms, 20ms at full load
INPUT	VOLTAGE RANGE	85 ~ 132VAC/180 ~ 264VAC selected by switch 255 ~ 370VDC
	FREQUENCY RANGE	47 ~ 63Hz
	EFFICIENCY	78%	80%	81%	81%	84%	84%
	AC CURRENT	2.4A/115VAC 1.2A/230VAC
	INRUSH CURRENT (max)	COLD START 30A/115VAC 60A/230VAC
	LEAKAGE CURRENT	<1mA / 240VAC
PROTECTION	OVERLOAD	105 ~ 150% rated output power (150 ~ 200% rated output power for S-100-7.5 only)
PROTECTION	OVERLOAD	Protection type : Shut down o/p voltage, re-power on to recover.
ENVIRONMENT	WORKING TEMP.	-10 ~ +60°C (Refer to output load derating curve)
	WORKING HUMIDITY	20 ~ 90% RH non-condensing
	STORAGE TEMP., HUMIDITY	-20 ~ +85°C ,10 ~ 95% RH
	TEMP. COEFFICIENT	±0.03%/ (0 ~ 50)
	VIBRATION	10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY & EMC	SAFETY STANDARDS	Desgin refer to UL1012,EN60950-1,EN61347-1,EN-61347-2 approved
	WITHSTAND VOLTAGE	I/P-O/P:2.5KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
	ISOLATION RESISTANCE	I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
	EMI CONDUCTION & RADIATION	EN55015,EN55022,EN55024,EN61000-2,EN61000-3,EN61547 approved
OTHERS
	DIMENSION	1999838mm (LWH)
	WEIGHT	0.61Kg
NOTE	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature.
	2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
	3. Tolerance : includes set up tolerance, line regulation and load regulation.

Packaging & Shipping
