SMT PCB Printed Circuit Board Assembly 4 Layer HASL

Name: SMT PCB Printed Circuit Board Assembly 4 Layer HASL
Brand: all-electronics-online.com
SKU: 823973455
Availability: InStock
Rating: 4.7 (73 reviews)

Price:	US $ 0.84/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BIC-274-V2.74
Board Thickness:	1.6mm +/-0.16
Tg Value Of Board Material:	135ºC
Surface Finish:	HASL Lead Free
Surface Cu Thickness:	35 Um (1 Oz)
Solder Mask Colour:	Green
Color Of Silkscreen:	White
RoHS Required:	Yes
Total Quantity Of Components:	293
Applications:	Control Mother Board
SMD Assembly:	Yes
Base Material:	FR-4
Certification:	ISO
Customized:	Customized
Metal Coating:	HASL Lead Free
Mode Of Production:	Through Hole,SMD and SMT Assembly
Layers:	4layer

Product Description

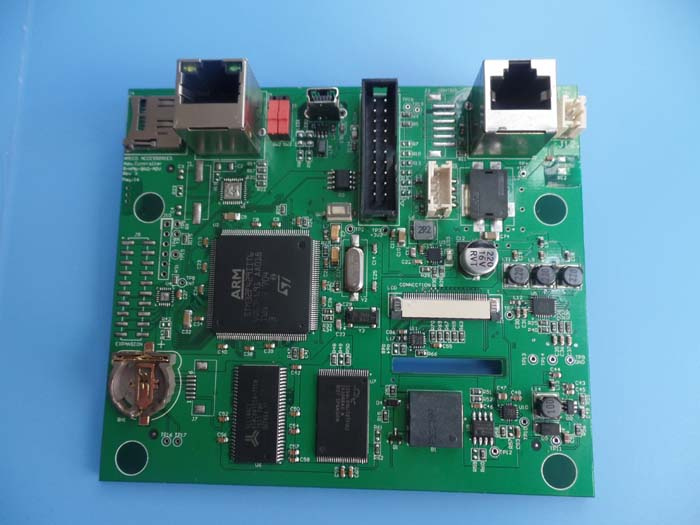

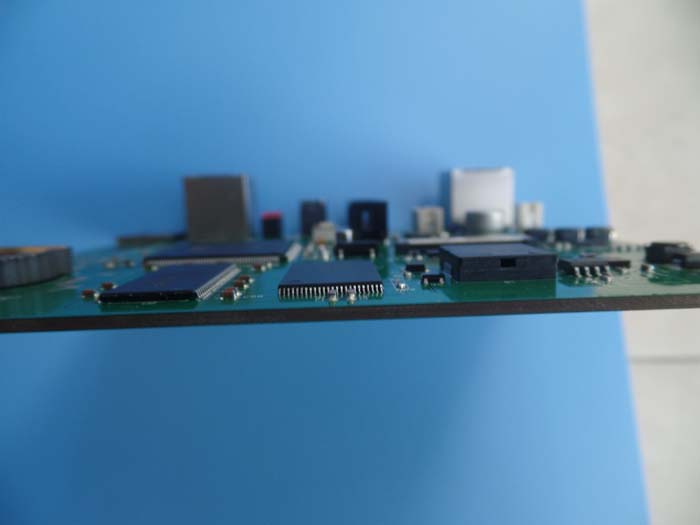

SMT Printed circuit board Assembly 4 Layer Fr4 PCB with HASL

Commodity Introduction
This is a type of PCB assembly job in the application of control system. It's composed of SMD
assembly and through hole assembly. It's fabricated per IPC-A-610 using supplied Gerber data
and bill of material (BOM). The support board is 4 Layers with HASL lead free. SMD and through
hole components are on both sides.

Parameters & Data Sheet

Specifications
Board dimension	116 x 99mm
Board Type	Multilayer 4 Layers
Board Thickness	1.6mm +/-0.16
Board Material	FR-4
Board Material Supplier	ITEQ
Tg Value of Board Material	135ºC

Surface Finish	HASL Lead free
RoHS Required	Yes
Surface Cu thickness	35 um (1 oz)

Color of Silkscreen	White
Number of Silkscreen	2
Solder Mask Colour	Green
Number of Solder Masks	2
Thickness of Solder Mask	13 um

Through hole assembly	YES
Sides of through hole assembly	1
SMD assembly	YES
Sides of SMD assembly	2

Total quantity of components	293
Quantity of SMT	215
Quantity of Through holes	78
Applications	Control mother board
RoHS Required	YES

Learn PCB and Buy PCB
The components of multilayer PCB: thin laminates
A multilayer board consists of copper foils, thin rigid laminates and prepreg sheets.

Thin laminates are used for inner cores and are available in so many different thicknesses
that almost any specified build-up can be accomplished.

Different thickness of thin laminates

mm	mils	mm	mils
0.050	2	0.360	14
0.075	3	0.410	16
0.100	4	0.460	18
0.125	5	0.510	20
0.150	6	0.560	22
0.175	7	0.610	24
0.200	8	0.660	26
0.250	10	0.710	28
0.300	12	0.760	30

The thicknesses are valid for the bare laminate, with the copper foil being excluded. We can
see the cores are quite thin. For a total thickness of 1.6mm (0.063inch) board, the more layers,
the thinner the laminates should be. See our reference Multilayer PCB stackup for 0.063inch thick.
