| Prod Model: |
SMB-120-12 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output: |
12VDC 10A |
| Size: |
160*88*34mm |
| Power: |
120W |
| Weight: |
0.45kg |
| Input: |
170-264VAC 240-370VDC |
| Working Temperature: |
-10~+60 Degree C,20%~90%Rh |
| DC Adjustable: |
10% |
| Efficiency: |
84% |
| Tolerance: |
1% |
| OEM: |
Available |
| Output Type: |
Single |
| Warranty: |
2 Years |
| Output Power: |
101 - 200W |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Self-excited Switching Power Supply |
| Voltage Regulating Mode: |
Width Modulation Type |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
RoHS |
| Input Voltage: |
170~264VAC |
| Brand: |
Smun |
Product Description

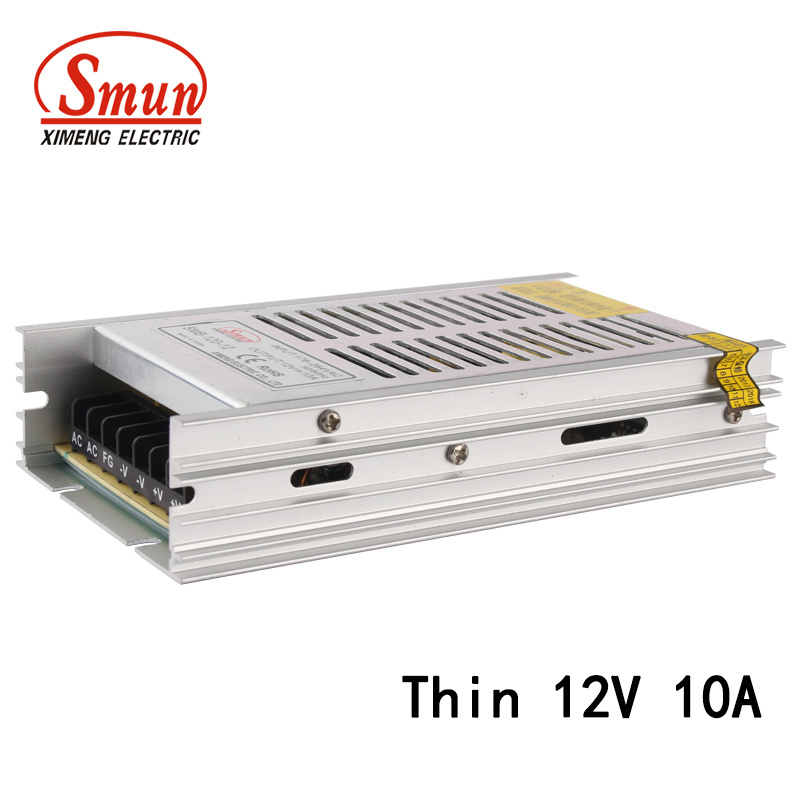

AC/DC DC/DC Switching Power Supply (SMPS) 120W Single Output SMB-120W
Features:
1) AC input range selected by switch.
2) Protections: Short circuit/Over load.
3) Cooling by free air convection.
4) 100% full load burn-in.
5) Lost cost.
6) High reliability.
1. INPUT: 170 ~ 260VAC /240 ~ 373VDC 47 ~ 440Hz
2. SETUP, RISE, HOLD TIME: 200ms, 50ms, 20ms
3. WORKING TEMP.: -10 ~ +60 C 20 ~ 90% RH
4. WITHSTAND VOLTAGE: I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC
5. ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC
6. DIMENSION: 160*88*34mm (L*W*H)
7. PACKING: 0.45Kg;
Apply to the automatic controlled field. Such as LED screen, industrial control equipment, communications equipment and instrument&meter etc.
MODEL
| SMB-120-5
| SMB-120-12
| SMB-120-15
| SMB-120-24
|
OUTPUT
| DC VOLTAGE
| 5V
| 12V
| 15V
| 24V
|
RATED CURRENT
| 24A
| 10A
| 8A
| 5A
|
RATED POWER
| 120W
| 120W
| 120W
| 120W
|
RIPPLE&NOISE
| 100mVp-p
| 100mVp-p
| 100mVp-p
| 100mVp-p
|
VOLTAGE ADJ.RANGE
| 4.75-5.5V
| 10.8-13.2V
| 13.5-16.5V
| 21.6-26.4V
|
VOLTAGE TOLERANCE
| ±2.0%
| ±1.0%
| ±1.0%
| ±1.0%
|
LINE REGULATION
| ±0.5%
| ±0.5%
| ±0.5%
| ±0.5%
|
LOAD REGULATION
| ±1.0%
| ±0.5%
| ±0.5%
| ±0.5%
|
SETUP,RISE TIME
| 300ms,50ms/230VAC 800ms,50ms/115VAC at full load
|
HOLD UP TIME(TYP.)
| 90ms/230VAC 12ms/115VAC at full load
|
INPUT
| VOLTAGE RANGE
| 85-264VAC 120-370VDC
|
FREQUENCY RANGE
| 47-63HZ
|
EFFICIENCY(Typ.)
| 81%
| 81%
| 84%
| 84%
|
AC CURRENT(Typ.)
| 2.4A/115VAC 1.2A/230VAC
|
INRUSH CURRENT
| COLD START 30A/115VAC 60A/230VAC
|
LEAKAGE CURRENT
| 1mA/240VAC
|
PROTECTION
| OVERLOAD
| 105-150% RATED OUTPUT POWER
|
Protection type:Hiccup mode,recovers automatically after fault condition
|
OVER VOLTAGE
| 5.75V-6.75V
| 13.8V-16.2V
| 17.2V-20.25V
| 27.6V-32.4V
|
Protection type:Hiccup mode,recovers automatically after fault condition
|
ENVIRONMENT
| WORKING TEMP
| -10~+60°C
|
WORKING HUMIDITY
| 20-90%RH non-condesing
|
STORAGE TEMP,HUMIDITY
| -20~+85°C,10-95%RH
|
TEMP.COEFFICIENT
| ±0.03%°C(0-50°C)
|
VIBRATION
| 10-500HZ
|
SAFETY&EMC
| SAFETY STANDARD
| CE RoHS
|
WITHSTAND VOLTAGE
| I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC 1minute
|
ISOLATION RESISTANCE
| I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC/25°C/70%RH
|
EMI CONDUCTION&RADIATION
| Design refer to GB4943,UL60950,EN60950
|
EMC STANDARD
| Design refer to GB9254,EN55022 Class A
|
DIMENSION
| L160*W88*H38mm
|
PACKING
| 0.45kg,30pcs/15kg
|
