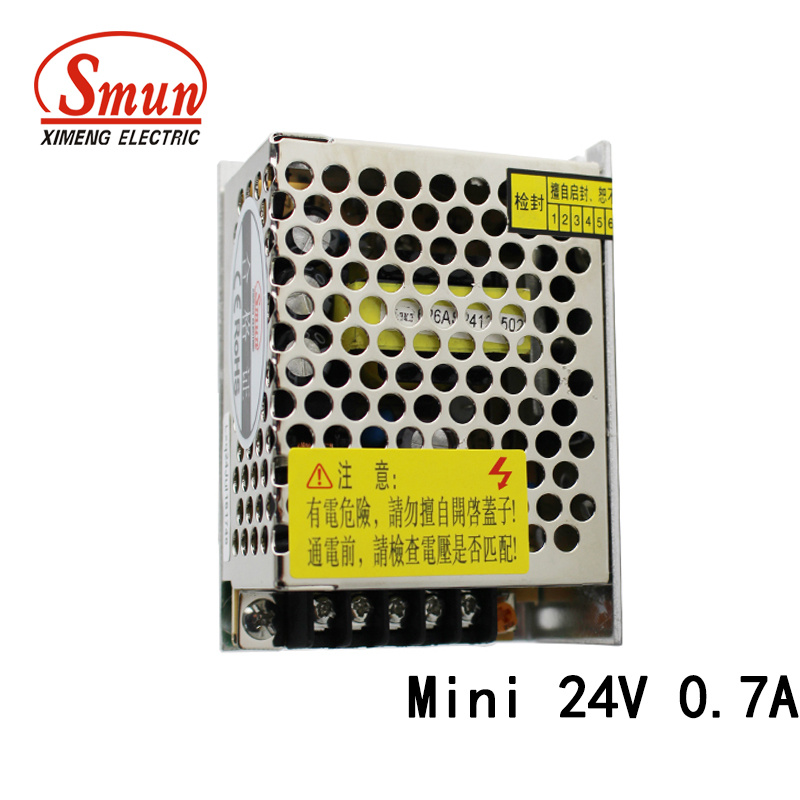

Smun as-15-24 15W 24VDC 0.7A AC-DC Mini Volume Power Supply

Name: Smun as-15-24 15W 24VDC 0.7A AC-DC Mini Volume Power Supply
Brand: all-electronics-online.com
SKU: 834362485
Availability: InStock
Rating: 4.6 (29 reviews)

Price:	US $ 2.9-4.2/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	AS-15-24
Rated Power:	15W
Output:	24VDC 0.7A
Size:	845738mm

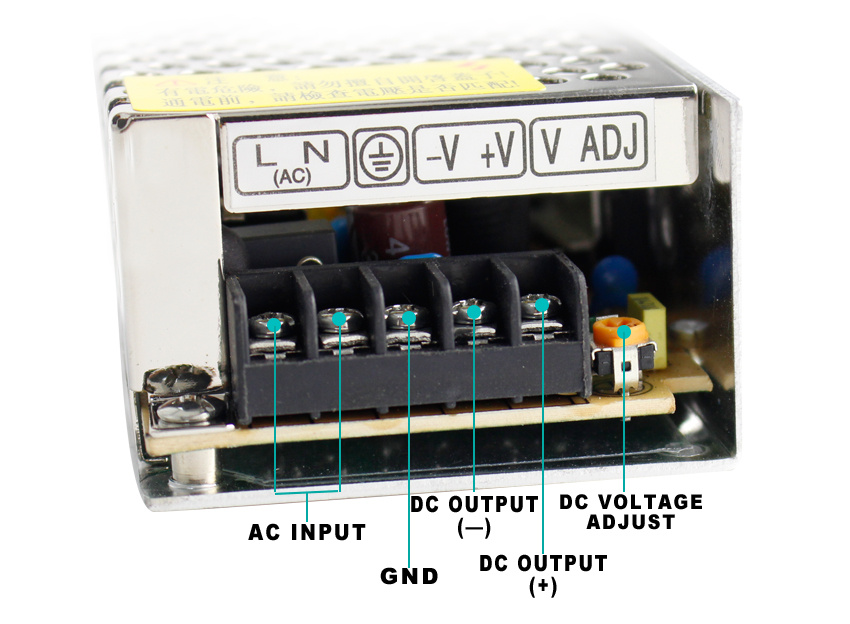

Terminal:	5 Pole Terminal
Weight:	0.16kg
Package:	80PCS/16kg
Protection:	Short Circuit,Over Load
DC Adjustment:	Yes
Efficiency:	68%
Other:	Accept Customized
Output Type:	Single
Warranty:	2 Years
Output Power:	1 - 50W
Input Voltage:	Full Range
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CCC
Brand:	Smun

Product Description

· 1. AC input voltage range selected by switch

· 2. Small Volume,low weight,high efficiency

· 3. Protections:Short circuit,over load

· 4. LED indicator for power on

· 5. 100% full lrad burn-in test

· 6. 2 years warranty

Model		AS-15-5	AS-15-12	AS-15-15	AS-15-24
Output	DC output Voltage	5V	12V	15V	24V
	Voltage tolerance	±2.0%	±2.0%	±2.0%	±1.0%
	Rated Current	3A	1.3A	1A	0.7A
	Related Power	15w	15w	15w	15w
	Wave&Noise	50mVp-p	50mVp-p	50mVp-p	100mVp-p
	Adjustable range for DC Voltage	±10%	±10%	±10%	±10%
	Set up,rise,hold up time	200ms 100ms 30ms
Input	Voltage Range	85 ~132VAC 170-264VAC 47-63HZ 240-370VDC
	Input Current	0.5A/115VAC 0.25A/230VAC
	Efficiency	65%	68%	68%	72%
	AC inrush current	Cold start current 15A/115V 30A /230VAC
	Leakage current	<0.5mA/240VAC
Protection	Overload	Related output power 105-150% start overload protection
		Protection type: cutoff output, recovery after restart power
	Over voltage	5.75V-6.75V	13.8V-16.2V	17.2V-20.2V	27.6V-32.4V
		Hiccup mode,recovers automatically after fault condition
Environment	Working temp humidity	-10~+60°C 20%~90%RH
	Stor temp, humidity	-20~+85°C 20%~90%RH Non-condensing
Safety	Withstand voltage	I/P-O/P:1.5KVAC 1min
		I/P-FG:1.5KVAC 1min
		O/P-FG:0.5KVAC 1min
Standard	Safety standard	Fit UL1012
	Refer	Design refer to GB4943,UL60950,EN60950
	EMC standard	Design refer to GB9254,EN55022 Class A
Size	size	L84W57H38mm
	Package	0.16kg, 80pcs/13kg
