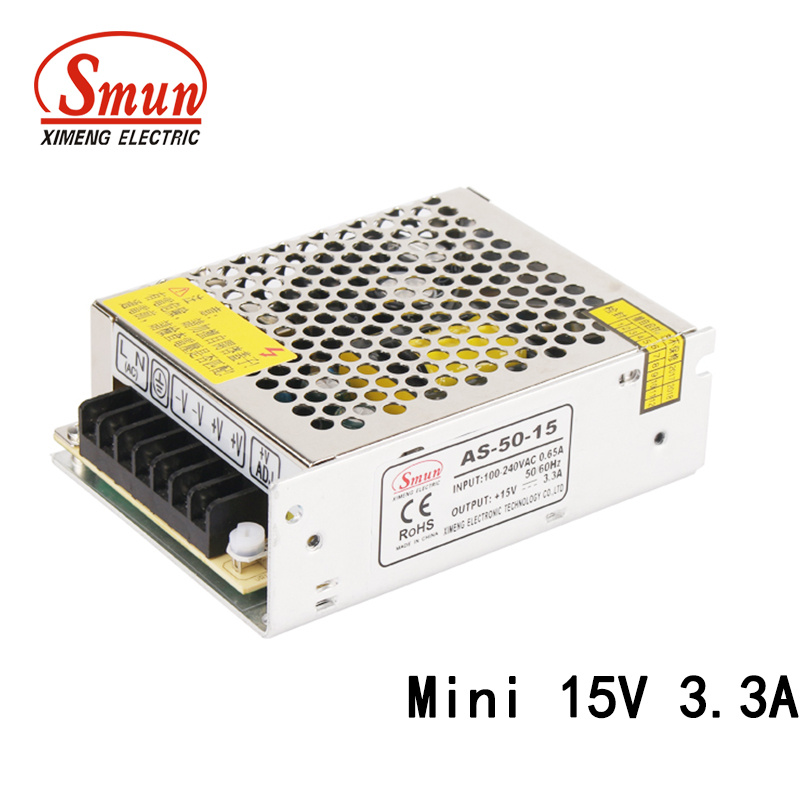

| Prod Model: |
AS-50-15 |
| Rated Power: |
50W |
| Output: |
15VDC 3.3A |
| Input: |
100-264VAC 47-63Hz 240-370VDC |
| Size: |
111*78*36mm |
| Weight: |
0.27kg |
| Package: |
70PCS/20kg |
| Working Temperature: |
-10~+60 Degree C,20%~90%Rh |
| DC Adjustable: |
10% |
| Safety Standard: |
En60950 GB4943 UL60950 |
| Efficiency: |
78% |
| Output Type: |
Single |
| Warranty: |
2 Years |
| Output Power: |
1 - 50W |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Self-excited Switching Power Supply |
| Voltage Regulating Mode: |
Width Modulation Type |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
RoHS |
| Input Voltage: |
100~264VAC |
| Brand: |
Smun |
Product Description
Features:
1) High reliability and superior quality
2) 100% full load burn-in test
3) Universal AC input with a full range
4) Small-volume PCB, open framed
5) Protection: Overload, short circuit, over temperature
6) 100% full load burn-in test
7) Dimensions: 111 X 78 X 36mm
Our switching power supply products include AC to DC switching power supply, and DC to DC converters and battery chargers. Adopting high quality spares, these series feature high reliability, low ripples, high efficiency, compact size and light weight. We can offer single output and multiple output models. OEM is welcomed.
| Model |
| AS-50-5 | AS-50-12 | AS-50-15 | AS-50-24 |
| Output | DC output Voltage | 5V | 12V | 15V | 24V |
| Voltage tolerance | ±1.0% | ±1.0% | ±1.0% | ±1.0% |
| Rated Current | 10A | 4.2A | 3.4A | 2.1A |
| Related Power | 50w | 50w | 50w | 50w |
| Wave&Noise | 75mVp-p | 100mVp-p | 100mVp-p | 100mVp-p |
| Adjustable range for DC Voltage | ±10% | ±10% | ±10% | ±10% |
| Set up,rise,hold up time | 200ms 100ms 30ms |
| Input | Voltage Range | 85 ~132VAC 170-264VAC 47-63HZ 240-370VDC |
| Input Current | 1.2A/115VAC 0.6A/230VAC |
| Efficiency | 71% | 78% | 78% | 82% |
| AC inrush current | Cold start current 15A/115V 30A /230VAC |
| Leakage current | <0.5mA/240VAC |
| Protection | Overload | Related output power 105-150% start overload protection |
| Protection type: cutoff output, recovery after restart power |
| Over voltage | 5.75V-6.75V | 13.8V-16.2V | 17.2V-20.2V | 27.6V-32.4V |
| Hiccup mode,recovers automatically after fault condition |
| Environment | Working temp humidity | -10~+60°C 20%~90%RH |
| Stor temp, humidity | -20~+85°C 20%~90%RH Non-condensing |
| Safety | Withstand voltage | I/P-O/P:1.5KVAC 1min |
| I/P-FG:1.5KVAC 1min |
| O/P-FG:0.5KVAC 1min |
| Standard | Safety standard | Fit UL1012 |
| Refer | Design refer to GB4943,UL60950,EN60950 |
| EMC standard | Design refer to GB9254,EN55022 Class A |
| Size | size | L111*W78*H36mm |
| Package | 0.27kg, 70pcs/20kg |
