| Prod Model: |
AS-75-24 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Input: |
85-264VAC 240-370VDC |
| Output: |
75W 24VDC 3A |
| Size: |
111*78*36mm |
| Weight: |
0.3kg |
| Package: |
70PCS/21kg |
| Protection: |
Over Load,Short Circuit |
| DC Adjustment: |
Yes |
| Efficiency: |
82% |
| Other: |
Accept Customized |
| OEM: |
Available |
| Output Type: |
Single |
| Warranty: |
2 Years |
| Output Power: |
51 - 100W |
| Input Voltage: |
Full Range |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Self-excited Switching Power Supply |
| Voltage Regulating Mode: |
Frequency Modulation Type |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
CCC |
| Brand: |
Smun |
Product Description

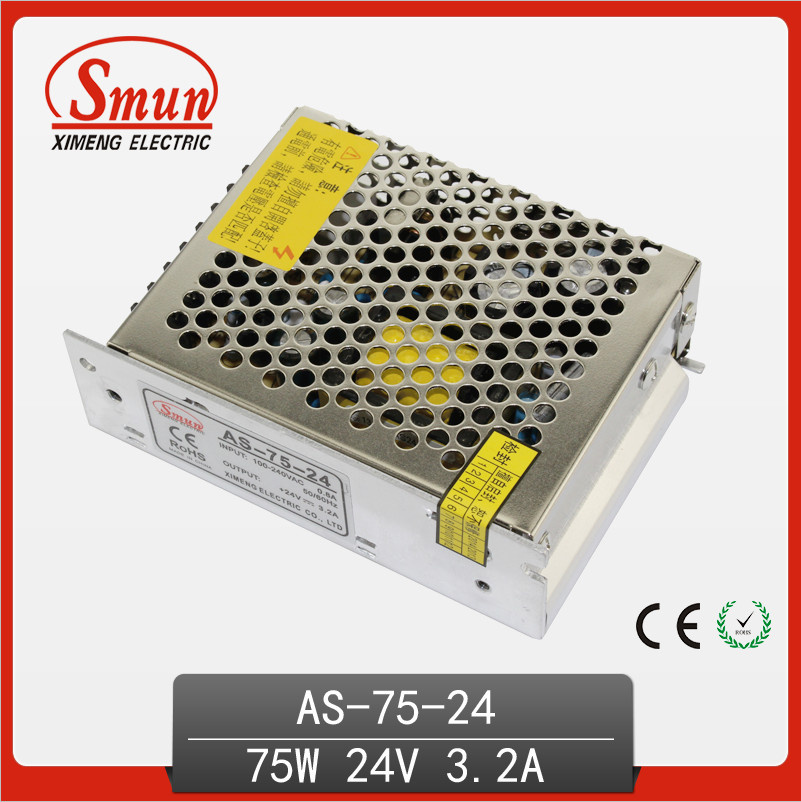

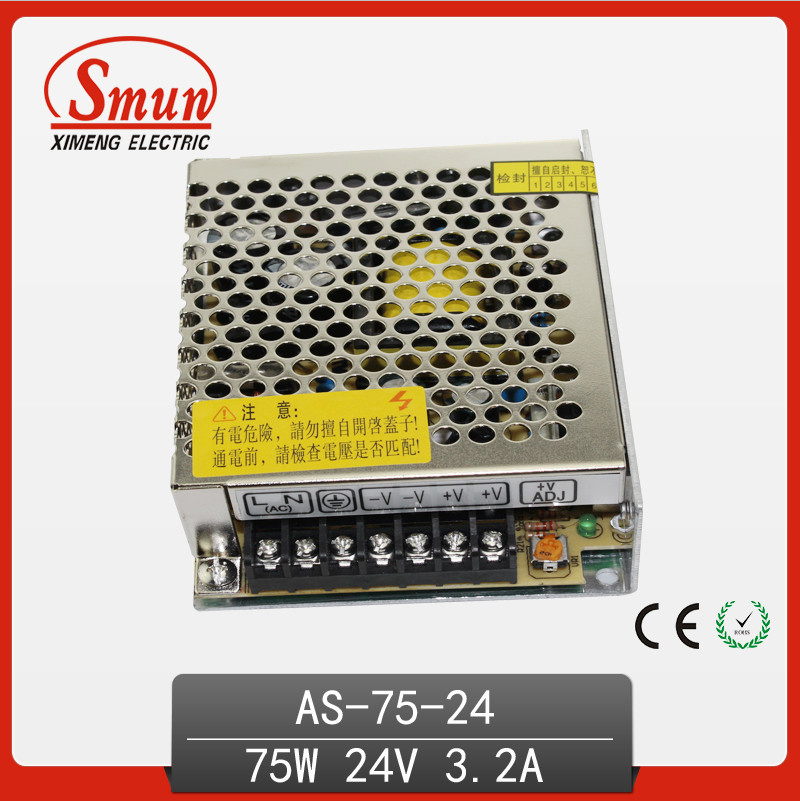

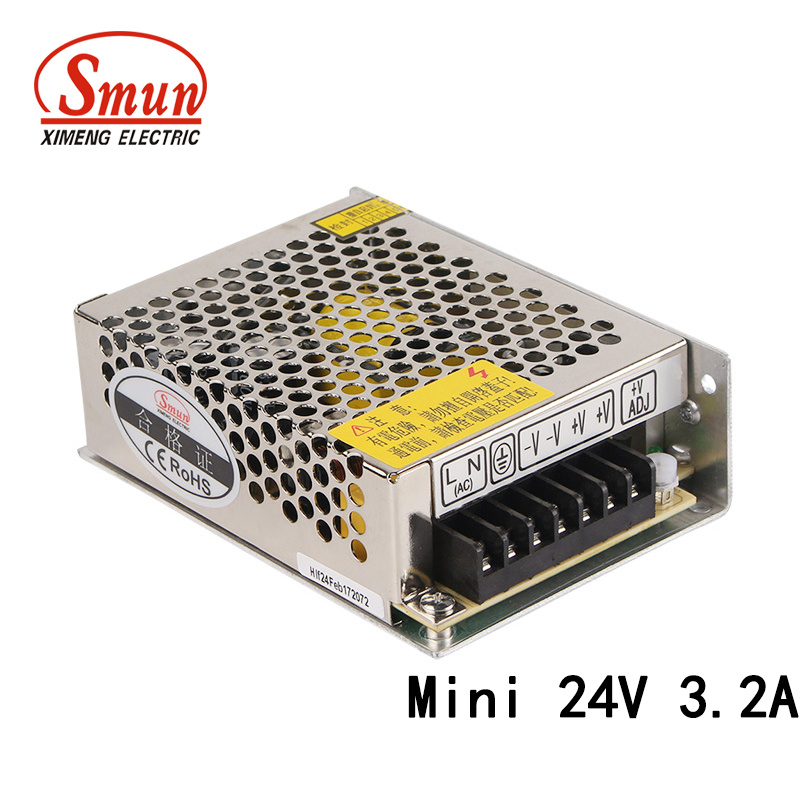

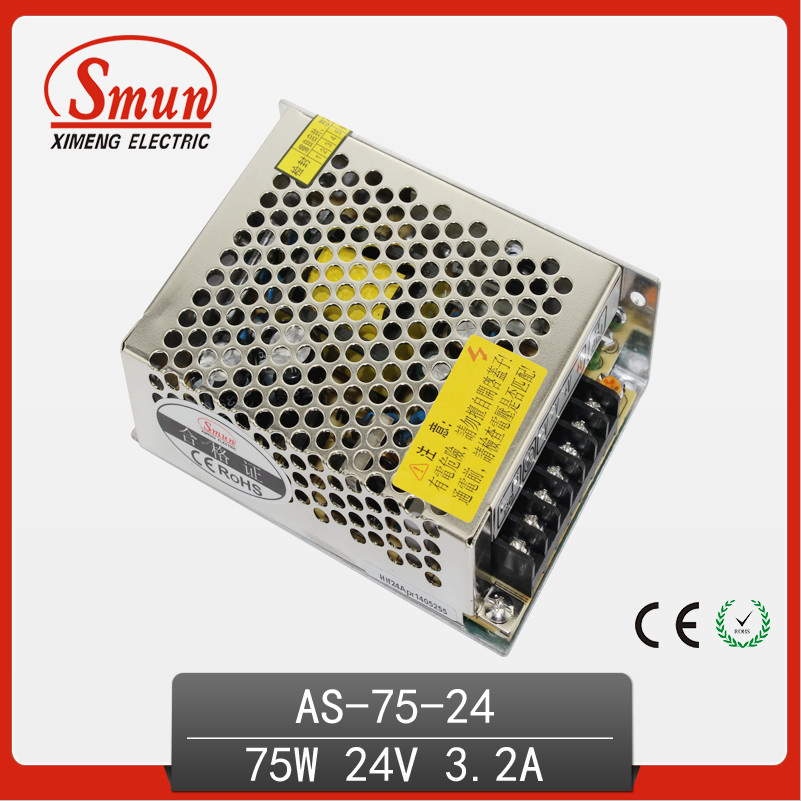

75w 24Vdc3A small size switching power supply single output with CE ROHS 2 year warranty
1. What is the Switching Power Supply (SPS) ?
SPS is an electronic equipment that turn 110VAC or 220VAC into DC output.
Our normal DC output is 5Vdc , 12vdc , 15vdc, 24vdc, 48vdc .
Also we accepted customized .
2. How many road of output for SPS?
Four kinds.
Single output : 5Vdc , 12vdc , 15vdc, 24vdc, 48vdc
Dual output : 5v/12v , 5v/24v, 12v/24v
Triple output: +/-5v / 12v, +/-12v/5v, +/-15v/ 5v , 5v/15v/24v
Quad output:+/-5v and +/-12v, +/-5v and +/-15v, +/-5v and 12v and 24v, +15v and +/-15v and +24v
3. How many kinds of SPS according to different used ?
Non waterproof LED
Waterproof led driver
Rain-proof SPS
Din rail
Adapter
Company information
1.Q:Are you a factory or trading company? How many people work in your company?
A : We are a factory and we got 500 workers till this year.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Wenzhou City, Zhejiang Province, China, about 1.5 hours
from Guangzhou by air . All our clients, from home or abroad, are warmly welcome to
visit us!
If you can cooperate with us, we will be honored and you will benefit from:
* The good construction warranty1~2 years
* Your client satisfied on the right schedule and quality
* Your can get good reputation from your market and obtain more orders
* Our professional service before and after sale
* The free samples after your first 3 orders
* The reasonable price
* Any questions from you are welcome and will be replied in 24 hours
| Model | | AS-75-5 | AS-75-12 | AS-75-15 | AS-75-24 |
| Output | DC output Voltage | 5V | 12V | 15V | 24V |
| Voltage tolerance | ±1.0% | ±1.0% | ±1.0% | ±1.0% |
| Rated Current | 15A | 6.3A | 5A | 3.2A |
| Related Power | 75w | 75w | 75w | 75w |
| Wave&Noise | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p |
| Adjustable range for DC Voltage | ±10% | ±10% | ±10% | ±10% |
| Set up,rise,hold up time | 200ms 100ms 20ms |
| Input | Voltage Range | 85 ~132VAC 170-264VAC 47-63HZ 240-370VDC |
| Input Current | 1.6A/115VAC 0.8A/230VAC |
| Efficiency | 80% | 80% | 80% | 82% |
| AC inrush current | Cold start current 15A/115V 30A /230VAC |
| Leakage current | <0.5mA/240VAC |
| Protection | Overload | Related output power 105-150% start overload protection |
| Protection type: cutoff output, recovery after restart power |
| Over voltage | 5.75V-6.75V | 13.8V-16.2V | 17.2V-20.2V | 27.6V-32.4V |
| Hiccup mode,recovers automatically after fault condition |
| Environment | Working temp humidity | -10~+60°C 20%~90%RH |
| Stor temp, humidity | -20~+85°C 20%~90%RH Non-condensing |
| Safety | Withstand voltage | I/P-O/P:1.5KVAC 1min |
| I/P-FG:1.5KVAC 1min |
| O/P-FG:0.5KVAC 1min |
| Standard | Safety standard | Fit UL1012 |
| Refer | Design refer to GB4943,UL60950,EN60950 |
| EMC standard | Design refer to GB9254,EN55022 Class A |
| Size | size | L111*W78*H36mm |
| Package | 0.27kg, 70pcs/20kg |
| Note:1.All parameters not specially mentioned are measured at 230VAC input, related load and 25 of ambient temperature.2.Wave&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&47uf parallel capacitor.3.Tolerance: includes set up tolerance, line regulation and load regulation. |
