| Prod Model: |
D-50B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Ned-50b |
| Input: |
85-132V 170-264VAC 240-370VDC |
| Output: |
5V6a 24V1a |
| Power: |
50W |
| Size: |
159*98*38mm |
| Weight: |
0.52kg |
| Package: |
40PCS/21kg |
| Working Temperature: |
-10~+60 Degree C,20%~90% |
| DC Adjustable: |
10% |
| Customized: |
Available |
| Output Type: |
Dual |
| Warranty: |
2 Years |
| Output Power: |
51 - 100W |
| Input Voltage: |
Full Range |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Self-excited Switching Power Supply |
| Voltage Regulating Mode: |
Frequency Modulation Type |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
ISO |
| Brand: |
Smun |
Product Description

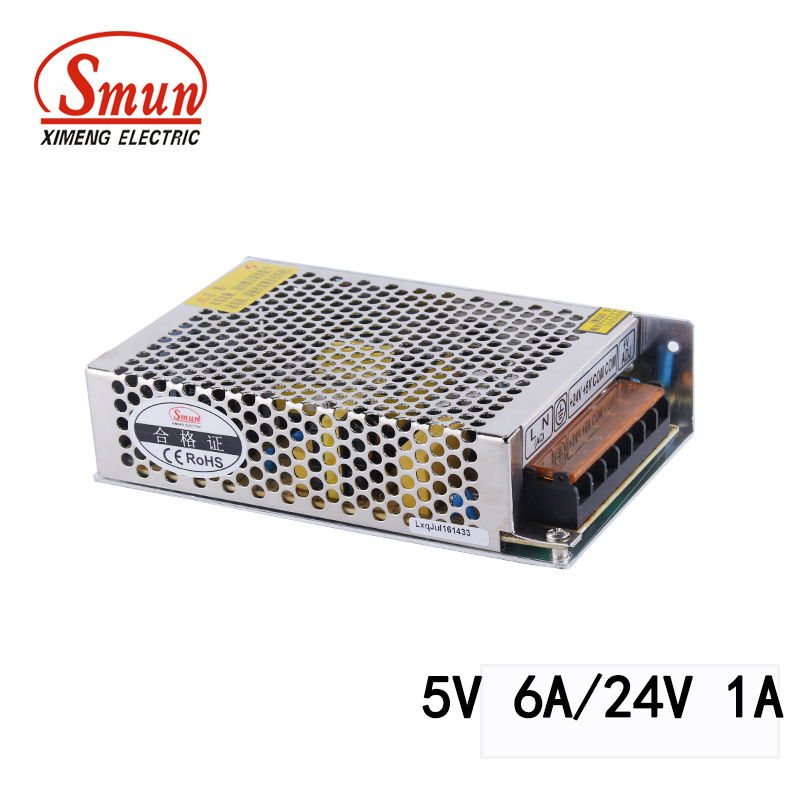

50W dual output switching power supply
AC input voltage range selected by switch
Small volume, low weight, high efficiency
Protections: Short circuit/over load/over voltage/over temp
Cooling by free convection
LED indicator for power on
100% full load burn-in test
2 years warranty
| Model | D-50A | D-50B | D-50C |
| Output | DC Voltage | Ch1:5v | Ch2:12v | Ch1:5v | Ch2:24v | Ch1:12v | Ch2:24v |
| Voltage tolerance | ±2.0% | ±6.0% | ±2.0% | ±5.0% | ±3.0% | ±7.0% |
| Rated Current | 1-6A | 0.2-2A | 1-6A | 0.2-1A | 0-3A | 0.2-1A |
| Related Power | 50w | 50w | 50w |
| Wave&Noise | 60mVp-p | 120mVp-p | 60mVp-p | 150mVp-p | 60mVp-p | 150mVp-p |
| DC Voltage ADJ range | Ch1:-9%~+10% |
| Set up,rise,hold up time | 200ms 100ms 30ms |
| Input | Voltage Range | 95 ~132VAC 180-264VAC 47-63HZ 120-370VDC |
| AC Current | 2A/115VAC 1A/230VAC |
| Efficiency | 78% | 82% | 87% |
| AC inrush current | Cold start current 15A/115V 30A /230VAC |
| Leakage current | <3.5mA/240VAC |
| Protection | Overload | Related output power 105-150% start overload protection |
| Protection type: cutoff output, recovery after restart power |
| Over voltage | Ch2 :115%~135% |
| Hiccup mode,recovers automatically after fault condition |
| Environment | Working temp humidity | -10~+60°C 20%~90%RH |
| Storage temp, humidity | -20~+85°C 20%~90%RH Non-condensing |
| Withstand vibration | 10-500Hz,2G 10min/1 cycle, period for 60min, each axes |
| Safety | Withstand voltage | I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC |
| Isolation resistance | I/P-O/P:I/P-FG:O/P-FG: 100M Ohms/500VDC |
| Standard | Safety standard | Fit UL1012 |
| Refer | Design refer to GB4943,UL60950,EN60950 |
| EMC standard | Design refer to GB9254,EN55022 Class A |
| Size | size | L159*W98*H38mm |
| Package | 0.52kg, 40pcs/21kg |
Note:1.All parameters not specially mentioned are measured at 230VAC input, related load and 25of ambient temperature.
2.Wave&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&47uf parallel capacitor.
3.Tolerance: includes set up tolerance, line regulation and load regulation. |
