| Prod Model: |
S-100-12 |
| Power: |
100W |
| Output: |
12VDC 8.5A |
| Input: |
90-260VAC 240-370VDC |
| Size: |
199*98*38mm |
| Weight: |
0.65kg |
| Carton: |
30PCS/19.5kg |
| Material: |
PCB+ Steel Box |
| Working Temperature: |
-10~+60 Degree C,20%~90%Rh |
| DC Adjustable: |
10% |
| Customized: |
Available |
| Output Type: |
Single |
| Warranty: |
2 Years |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Self-excited Switching Power Supply |
| Voltage Regulating Mode: |
Width Modulation Type |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
ISO |
| Output Power: |
100W |
| Input Voltage: |
85~132VAC/170~264VAC |
| Brand: |
Smun |
Product Description

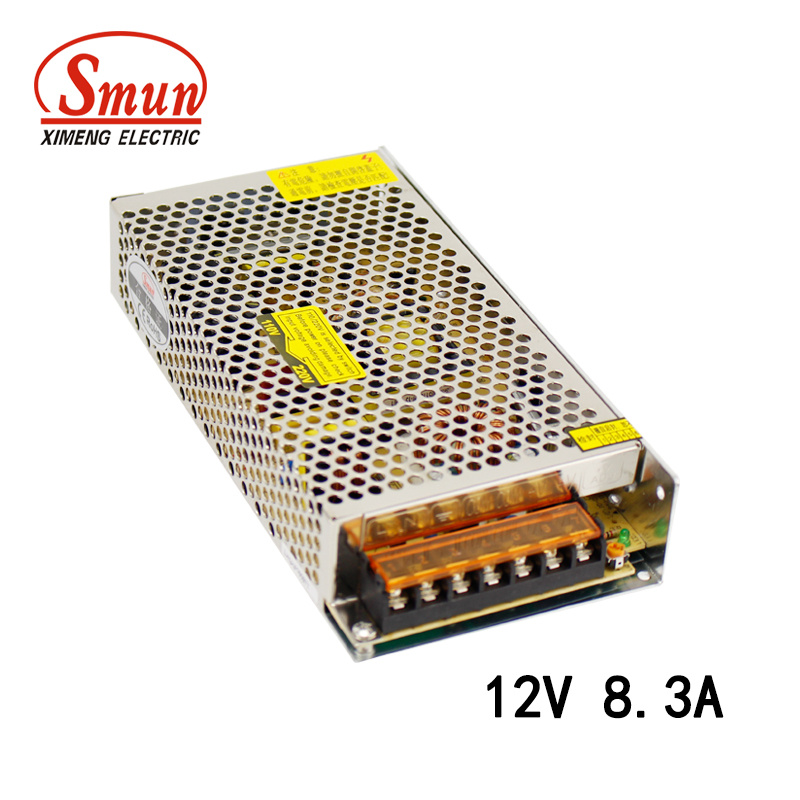

100W 12V 8.5A AC-DC Power Supply For LED Lighting
· 1. AC input voltage range
· 2. Small Volume,low weight,high efficiency
· 3. Protections:Short circuit/over load/over voltage
· 4. Cooling by free air convection
· 5. LED indicator for power on
· 6. 100% full load burn-in test
· 7. 2 years warranty
| Model |
| S-100-5 | S-100-12 | S-100-15 | S-100-24 | S-100-48 |
| Output | DC output Voltage | 5V | 12V | 15V | 24V | 48V |
| Voltage tolerance | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% |
| Rated Current | 20A | 8.5A | 6.7A | 4.5A | 2A |
| Related Power | 100w | 100w | 100w | 100w | 100w |
| Wave&Noise | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p |
| Adjustable range for DC Voltage | ±10% | ±10% | ±10% | ±10% | ±10% |
| Set up,rise,hold up time | 200ms 100ms 20ms |
| Input | Voltage Range | 85~132VAC 170-264VAC selected by switch 47-63HZ 240-370VDC |
| Input Current | 1.6A/115VAC 0.8A/230VAC |
| Efficiency | 81% | 81% | 84% | 84%% | 84% |
| AC inrush current | Cold start current 15A/115V 30A /230VAC |
| Leakage current | <0.5mA/240VAC |
| Protection | Overload | Related output power 105-150% start overload protection |
| Protection type: cutoff output, recovery after restart power |
| Over voltage | 5.75V-6.75V | 13.8V-16.2V | 17.2V-20.2V | 27.6V-32.4V | 55V-64.8V |
| Hiccup mode,recovers automatically after fault condition |
| Environment | Working temp humidity | -10~+60°C 20%~90%RH |
| Stor temp, humidity | -20~+85°C 20%~90%RH Non-condensing |
| Safety | Withstand voltage | I/P-O/P:1.5KVAC 1min |
| I/P-FG:1.5KVAC 1min |
| O/P-FG:0.5KVAC 1min |
| Standard | Safety standard | Fit UL1012 |
| Refer | Design refer to GB4943,UL60950,EN60950 |
| EMC standard | Design refer to GB9254,EN55022 Class A |
| Size | size | L199*W98*H38mm |
| Package | 0.65kg, 30pcs/19kg |
| Note:1.All parameters not specially mentioned are measured at 230VAC input, related load and 25 degree of ambient temperature.2.Wave&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&47uf parallel capacitor.3.Tolerance: includes set up tolerance, line regulation and load regulation. |
1.Your email will be replied with 24 hours
2.All qustions will be answered by our power supply engineer.
3.We have strictly management on the production and quality control.
4.We are real factory and have professional engineer team,can provide cust service.
>More than 500 pieces,can print logo on the products.
>More than 2000 pieces,can customize the package.
5.We have independent IMP&EMP rights.
6.Sample available.
7.Warranty Clarify:
>Products found to be defective within 30 days from the date of receipt can be returned for credit or exchange.After the initial 30 days,XIMENG will repair the goods according to our warranty period.
>We will send a new one to you if product can't work as quality problem in first year after comfirmation.
>If customers do the repair by themselves,XIMENG can provide reasonable quantity free components for repair purpose.
8.Shipping methods:By sea,by air,by express.
9.Customized accepted.
>Power:15W,25W,35W,50W,60W,75W,100W,120W,145W,150W,180W,200W,201W,250W,320W,350W,400W,500W,600W,800W,1000W,1200W,1500W,3000W.
>Output voltage:5V,9V,12V,15V,24V,36V,48V.
>Frequency:47-63Hz

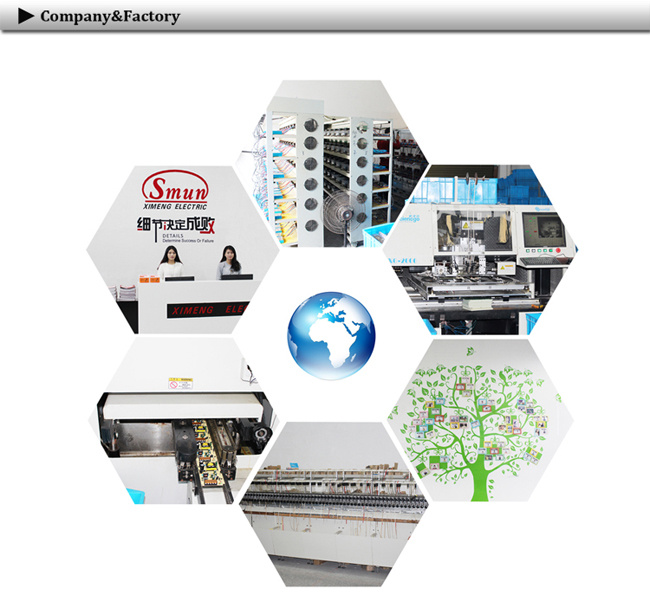

Zhejiang Ximeng Electronic Technology Co., Ltd. specialized in designing R&D production and sale. We have Independent import and export rights. The main products are switching power supply, LED driver power supply, AC/DC adapter, Electrical plug&sockets, Indicator lamp, terminal blocks, cable glands and related wiring accessories, Push button switches, and so on. All products are exported by our company YUEQING XIMENG IMP&EXP. Co., Ltd.
