| Prod Model: |
s-1200-24 |
| Power: |
1200W |
| Output: |
24VDC 50A |
| Input: |
85-132/170-264VAC |
| Weight: |
2.5kg/PCS |
| Package: |
4PCS/10kg |
| Size: |
291*132*68mm |
| Efficiency: |
84% |
| Protection: |
Overload,Over Temp,Over Voltage and Short Circut |
| Working Temperature: |
-10~+60 Degree C |
| OEM: |
Available |
| Output Type: |
Single |
| Warranty: |
2 Years |
| Output Power: |
>500W |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Self-excited Switching Power Supply |
| Voltage Regulating Mode: |
Width Modulation Type |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
CB |
| Input Voltage: |
100-120VAC or 200-240VAC |
| Brand: |
Smun |
Product Description
High Efficiency, High Reliability, Low Cost
AC Input Range: 90~132V/176~264VAC Selected by Switch
100% Full Load Burn-In Test
Protections: Short Circuit / Over Load/Over Voltage
LED Indicator For Power On
Cooling By Free Air Convection
Approvals: CE RoHS
1 Year Warranty
Dimensions: 291*132*68mm

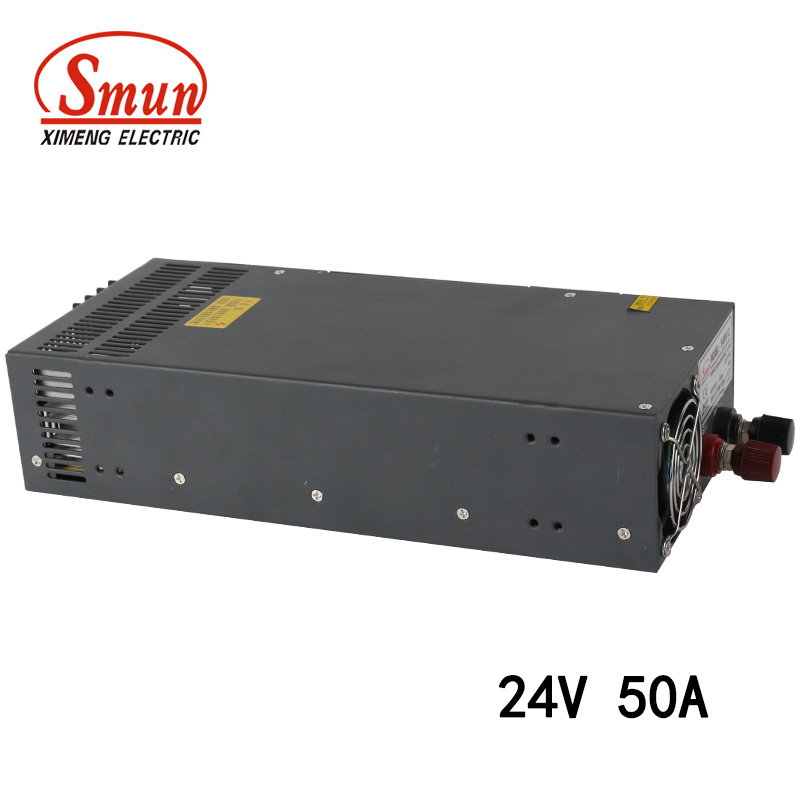

High switching power supply 24V 50A Features:
1) High efficiency, low operation temperature
2) Built-in EMI filter
High switching power supply 24V 50A as one kind of the switching power supply, is more and more popular
Inner composition:
High switching power supply 24V 50A composition: Composed by main circuit, power supply control circuit, test circuit, auxiliary power
High switching power supply 24V 50A working condition:
1. Switch: Electric power and electronic component working at on/off state not linear state
2. High frequency: Electric power and electronic component working at high frequency not the low frequency near to power frequency
3. DC: Power supply output DC not AC voltage
High switching power supply 24V 50A working characteristic:
1. Small volume, low weight: It's only 20~30% of linear power supply becuase without the power frequency transformer
2. Small wattage, high efficiency: Power transistor working at on/off state, so the power waste of transistor is small, conversion efficiency is high, usually 60~70%, but the linear power supply is only 30~40%
All the above is the details about XIMENG ELECTRIC products high switching power supply 24V 50A , if you have any query pls do feel free to contact us.
| MODEL |
|
| S-1200-12 | S-1200-15 | S-1200-24 | S-1200-48 |
| OUTPUT | DC VOLTAGE |
|
| 12V | 15V | 24V | 48V |
| VOLTAGE TOLERANCE |
|
| ± 1% | ± 1% | ± 1% | ± 1% |
| RATED CURRENT |
|
| 100A | 80A | 50A | 25A |
| CURRENT RANGE |
|
| 0-10A | 0-8A | 0-5A | 0-2.5A |
| RATED POWER | 1200W | 1200W | 1200W | 1200W | 1200W | 1200W |
| RIPPLE & NOISE(MAX) | 80mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p |
DC VOLTAGE
ADJUSTMENT RANGE | ± 10% | ± 10% | ± 10% | ± 10% | ± 10% | ± 10% |
| SETUP, RISE, HOLD UP TIME | 200ms, 100ms, 20ms |
| INPUT | VOLTAGE RANGE | 85~132/170~264VAC Selected by Switch, 47~63Hz |
| AC CURRENT | 3.2A/115 V 1.6A/ 230 V |
| EFFICIENCY | 78% | 80% | 82% | 82% | 84% | 84% |
| INRUSH CURRENT | Cold start 17A/115V 35A/230V |
| LEAKAGE CURRENT | < 1 mA/240VAC |
| PROTECTION | OVERLOAD PROTECTION | 135%~165% Shut down O/P voltage, re-power on to recover |
| OVER-VOLTAGE PROTECTION | ^ ^ |
| HIGH TEMPERATURE PROTECTON | ^ ^ |
| ENVIRONMENT | WORKING TEMP. & HUMIDITY | -10º C~+50º C; 20%~90 %RH |
| STORAGE TEMP. & HUMIDITY | -20º C~+85º C; 10%~95 %RH |
| VIBRATION | 10~500Hz, 2G 10min. /1 cycle, period for 60min, each along X. Y. Z axes |
| SAFETY | WITHSTAND VOLTAGE | I/P-O/P: 1.5KVACI/P-FG: 1.5KVACO/P-FG: 0.5KVAC |
| ISOLATION RESISTANGE | I/P-O/P, I/P-FG, O/P-FG: 500VDC/100MΩ |
| STANDARDS | SAFETY STANDARDS | Design refer to UL1012 |
| EMC STANDARDS | Design refer to EN55022, EN55024, EN61000 |
| OTHERS | WEIGHT | 2.5Kg |
| PACKING | 4pcs/ 12Kg |
| NOTE | 1. Tolerance: Includes set up tolerance, line regulation and load regulation.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire teminated with a 0.1μ f & 47μ f parallel capacitor. |
