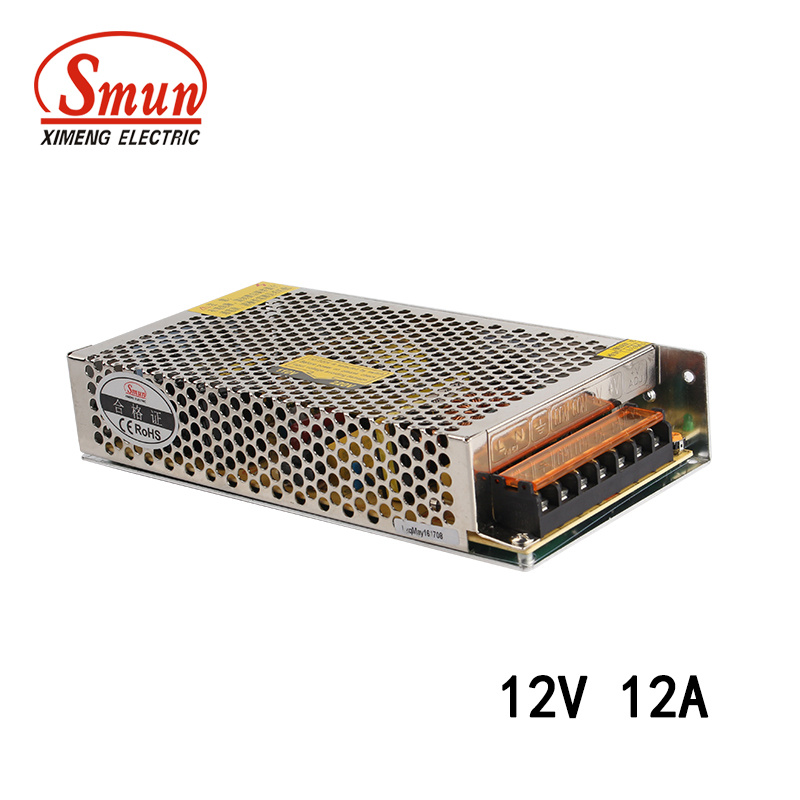

| Prod Model: |
S-145-12 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
S-145-12 |
| Power: |
145W |
| Input: |
85-132VAC 170-264VAC 47-63Hz |
| Input 2: |
240-370VDC |
| Output: |
12V12A |
| Size: |
199*98*38mm |
| Weight: |
0.7kg |
| Package: |
30PCS/21kg |
| Approve: |
Ce RoHS SA ISO9001 |
| OEM: |
Available |
| Output Type: |
Single |
| Warranty: |
2 Years |
| Output Power: |
101 - 200W |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Self-excited Switching Power Supply |
| Voltage Regulating Mode: |
Frequency Modulation Type |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
RoHS |
| Input Voltage: |
110VAC/220VAC |
| Brand: |
Smun |
Product Description
Our company is a high-tech company specialized in designing. R&D. Production and sale,
The products"Switching Power Supply" are with the characteristics of the low price,
High efficiency, high reliability, long lifetime and so on. Our products are widely used
In industrial automation field, indoor and outdoor LED lighting, LED lighting projects,
Communication, instrumentation, etc. Our Switching Power Supply is the ideal upgraded
Product to replace traditional controlling transformer.
The design of this series of products is in accordance with such international standards
As American UL1012, German TUVEN60950, IEC950, UL1950 and EC EMCLVD.
Our Switching Supply have many series:
Single output Switching Power Power Supply
Dual output Switching Power Supply
Triple output Switching Power Supply
Quad output Switching Power Supply
DIN-rail Switching Power Supply
LED driver Switching Power Supply
DC Power Supply Series
Also we can design and produce according to your need.
Welcome to contact us anytime.
| MODEL | S-145-5 | S-145-7.5 | S-145-12 | S-145-15 | S-145-24 | S-145-48 |
| OUTPUT | DC VOLTAGE | 5V | 7.5V | 12V | 15V | 24V | 48V |
| VOLTAGE TOLERANCE | ± 2% | ± 1% | ± 1% | ± 1% | ± 1% | ± 1% |
| RATED CURRENT | 25A | 19A | 12A | 9.6A | 6A | 3A |
| CURRENT RANGE | 0-25A | 0-19A | 0-12A | 0-9.6A | 0-6A | 0-3A |
| RATED POWER | 125W | 144W | 145W | 145W | 146W | 145W |
| RIPPLE & NOISE(MAX) | 80mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 120mVp-p |
DC VOLTAGE
ADJUSTMENT RANGE | ± 10% | ± 10% | ± 10% | ± 10% | ± 10% | ± 10% |
| SETUP, RISE, HOLD UP TIME | 200ms, 100ms, 20ms |
| INPUT | VOLTAGE RANGE | 85~132/170~264VAC Selected by Switch, 47~63Hz |
| AC CURRENT | 3.2A/115 V 1.6A/ 230 V |
| EFFICIENCY | 78% | 80% | 82% | 82% | 83% | 84% |
| INRUSH CURRENT | Cold start 18A/115V 35A/230V |
| LEAKAGE CURRENT | < 1 mA/240VAC |
| PROTECTION | OVERLOAD PROTECTION | 135%~165% Shut down O/P voltage, re-power on to recover |
| OVER-VOLTAGE PROTECTION | 135%~165% Shut down O/P voltage, re-power on to recover |
| HIGH TEMPERATURE PROTECTON | 135%~165% Shut down O/P voltage, re-power on to recover |
| ENVIRONMENT | WORKING TEMP. & HUMIDITY | -10º C~+50º C; 20%~90 %RH |
| STORAGE TEMP. & HUMIDITY | -20º C~+85º C; 10%~95 %RH |
| VIBRATION | 10~500Hz, 2G 10min. /1 cycle, period for 60min, each along X. Y. Z axes |
| SAFETY | WITHSTAND VOLTAGE | I/P-O/P: 1.5KVACI/P-FG: 1.5KVACO/P-FG: 0.5KVAC |
| ISOLATION RESISTANGE | I/P-O/P, I/P-FG, O/P-FG: 500VDC/100MΩ |
| STANDARDS | SAFETY STANDARDS | Design refer to UL1012 |
| EMC STANDARDS | Design refer to EN55022, EN55024, EN61000 |
| OTHERS | WEIGHT | 0.71Kg |
| PACKING | 30pcs/ 21.3Kg |
| NOTE | 1. Tolerance: Includes set up tolerance, line regulation and load regulation.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire teminated with a 0.1μ f & 47μ f parallel capacitor. |
