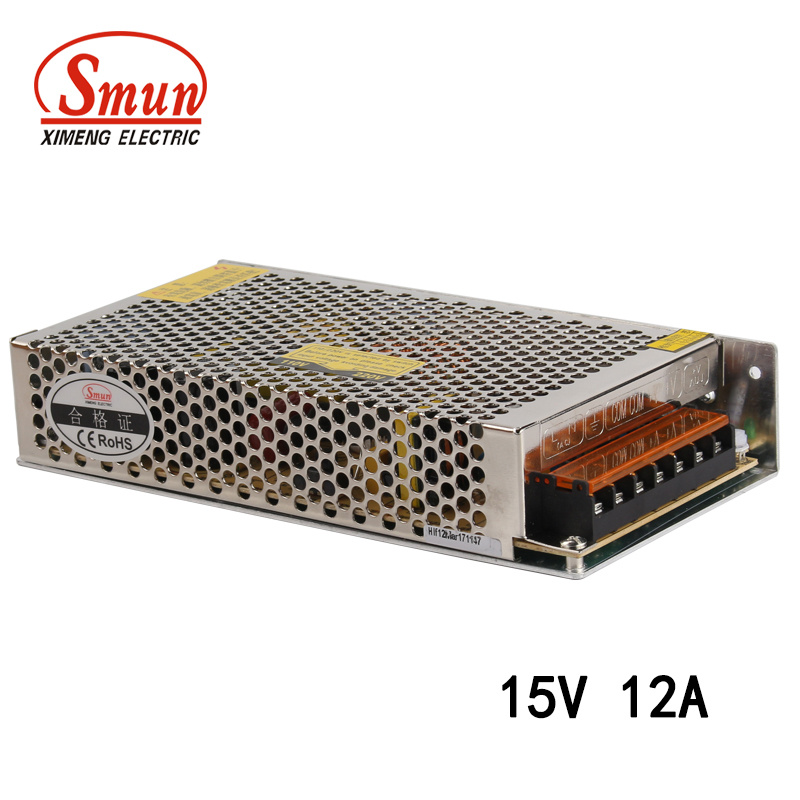

| Prod Model: |
S-180-15 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| S-180-15: |
180W 15VDC 12A |
| Input: |
85-132VAC 170-264VAC 47-63Hz |
| Input2: |
240-370VDC |
| Size: |
199*98*38mm |
| Weight: |
0.8kg |
| Package: |
30PCS/24kg |
| Power: |
180W |
| Working Temperature: |
-20~+60 Degree C,20%~90%Rh |
| DC Adjustable: |
10% |
| Tolerance: |
1% |
| Output Type: |
Single |
| Warranty: |
2 Years |
| Output Power: |
101 - 200W |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Self-excited Switching Power Supply |
| Voltage Regulating Mode: |
Frequency Modulation Type |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Input Voltage: |
85-132VAC/170-264VAC/47-63Hz/240-370VDC |
| Certification: |
CE CCC RoHS |
Product Description
1.code
SIZE:199*98*38mm
S-145-5:5V 0-25A 145W Single output constant voltage switching power supply
S-145-12:12V 0-12A 145W Single output constant voltage switching power supply
S-600-15:15v,0-9.7a 145W Single output constant voltage switching power supply
S-600-24:24v 0-6a 145 W Single output constant voltage switching power supply
S-600-48:48v 0-3 145 W Single output constant voltage switching power supply
2.specification
1)AC input voltage range: 85-132vac/170-264vac 47-63hz 240-370vdc
2)input current: 3.2a/115v1.6a/230v
3: AC inrush current:35A/115V60a/230v
4: Leakage current: <3.5mA/240VAC
5: DC adjustable range: ± 10% rated output voltage
6: Over load protection: 105-150%cut down output, auto-recovery
7: Over-voltage protection: 115-135%
8: Set uo, rise, hold up time: 100ms, 50ms 20ms
9: Withstand voltage: I/P-O/P: 1.5KVAC 1Minutes
I/P-FG: 1.5KVAC 1MInutes
O/P-FG: 0.5VAC 1minutes
10: Working temperature: -10~+60° C, 20-90%RH
11: Weight/packing: 0.7kg, 30pcs/21kg
3.products
4. certificate :
CE , ISO9001, ROHS
Model |
| S-180-5 | S-180-12 | S-180-15 | S-180-24 | S-180-48 |
| Output | DC output Voltage | 5V | 12V | 15V | 24V | 48V |
| Voltage tolerance | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% |
| Rated Current | 30A | 15A | 12A | 7.5A | 3.5A |
| Related Power | 180w | 180w | 180w | 180w | 180w |
| Wave&Noise | 120mVp-p | 120mVp-p | 120mVp-p | 120mVp-p | 120mVp-p |
| Adjustable range for DC Voltage | ±10% | ±10% | ±10% | ±10% | ±10% |
| Set up,rise,hold up time | 200ms 100ms 20ms |
| Input | Voltage Range | 85 ~132VAC 170-264VAC 47-63HZ 240-370VDC |
| Input Current | 3.2A/115VAC 1.6A/230VAC |
| Efficiency | 77% | 77% | 80% | 83%% | 83% |
| AC inrush current | Cold start current 30A/115V 60A/230VAC |
| Leakage current | <0.5mA/240VAC |
| Protection | Overload | Related output power 105-150% start overload protection |
| Protection type: cutoff output, recovery after restart power |
| Over voltage | 5.75V-6.75V | 13.8V-16.2V | 17.2V-20.2V | 27.6V-32.4V | 55V-64.8V |
| Hiccup mode,recovers automatically after fault condition |
| Environment | Working temp humidity | -10~+60°C 20%~90%RH |
| Stor temp, humidity | -20~+85°C 20%~90%RH Non-condensing |
| Safety | Withstand voltage | I/P-O/P:1.5KVAC 1min |
| I/P-FG:1.5KVAC 1min |
| O/P-FG:0.5KVAC 1min |
| Standard | Safety standard | Fit UL1012 |
| Refer | Design refer to GB4943,UL60950,EN60950 |
| EMC standard | Design refer to GB9254,EN55022 Class A |
| Size | size | L199*W98*H38mm |
| Package | 0.8kg, 30pcs/24kg |
Zhejiang Ximeng Electronic Technology Co., Ltd. specialized in designing R&D production and sale. We have Independent import and export rights. The main products are switching power supply, LED driver power supply, AC/DC adapter, Electrical plug&sockets, Indicator lamp, terminal blocks, cable glands and related wiring accessories, Push button switches, and so on. All products are exported by our company YUEQING XIMENG IMP&EXP. Co., Ltd.
Our company is a high-tech company specialized in designing. R&D. Production and sale, the products Switching Power Supply are with the characteristics of the low price, high efficiency, high reliability, long lifetime and so on. Our products are widely used in industrial automation field, indoor and outdoor LED lighting, LED lighting projects, communication, instrumentation, etc. Our Switching Power Supply is the ideal upgraded product to replace traditional controlling transformer. The design of this series of products is in accordance with such international standards as American UL1012, German TUVEN60950, IEC950, UL1950 and EC EMCLVD. Relying on high-quality imported components, advanced production techniques and perfect testing equipment, we create high-quality XIMENG products. XIMENG products sell well in domestic markets and in Europe and Southeast Asia. Our company focuses on innovating science and technology, wining a reputation with quality, and pursuing development with sincerity. We always update our equipment and create new products constantly, striving to follow the core mind of Science and Technology to improve life and supply wide customers with sincerity, high-quality products and highly efficient service. In order to thanks to the long-term support and the cooperation of customers at home and abroad, as well as develop new business field, our company warmly welcomes all the customers to come for instruction and discuss cooperation. Let us develop together and create our prosperous future!
