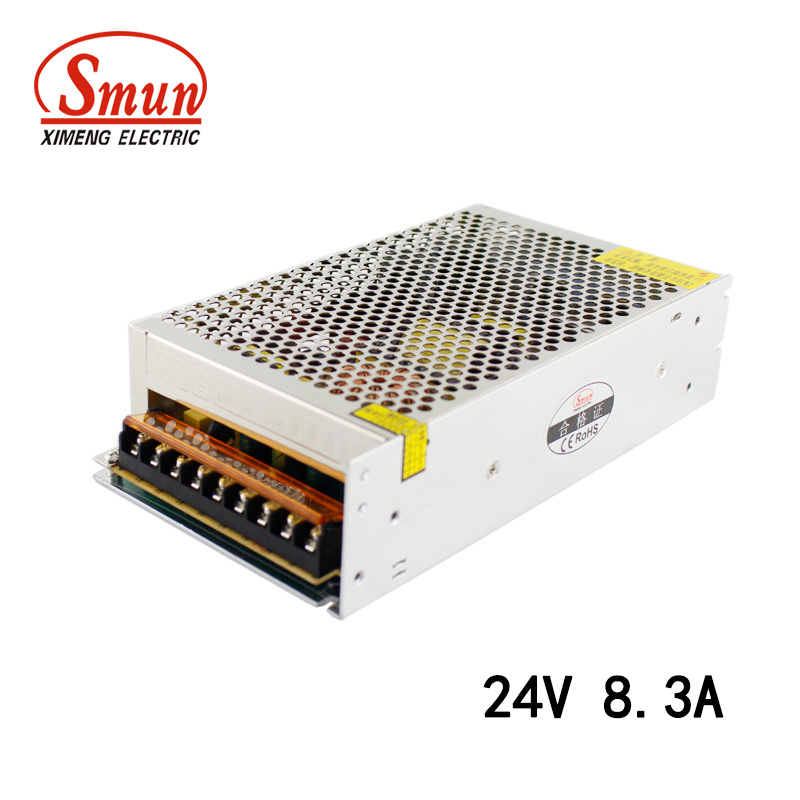

| Prod Model: |
S-200-24 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power: |
200W |
| Input: |
170-264VAC 47-63Hz 240-370VDC |
| Output: |
24VDC 8.3A |
| Size: |
199*110*50mm |
| Weight: |
0.85kg |
| Package: |
20PCS/17kg |
| Working Temperature: |
-10~+60 Degree C,20%~90%Rh |
| DC Adjustable: |
10% |
| Safety Standard: |
En60950 UL60950 GB4943 |
| Customized: |
Available |
| Output Type: |
Single |
| Warranty: |
2 Years |
| Output Power: |
101 - 200W |
| Input Voltage: |
220V |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Self-excited Switching Power Supply |
| Voltage Regulating Mode: |
Width Modulation Type |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
RoHS |
| Brand: |
Smun |
Product Description
Specifications
Features:
1) High efficiency, low operation temperature
2) Built-in EMI filter
3) 100% full load burn-in test
4) Protect
Features:
1) High efficiency, low operation temperature
2) Built-in EMI filter
3) 100% full load burn-in test
4) Protection: Overload, short circuit
5) Competitive price, high reliability
6) Output: D120U1, D120U2, D120U4
7) Input: 110/220VAC/Full range
8) Storage temperature / humidity: 0 - 50° C / 100%, -10° C / 80%, 60° C / 60%, 20% - 90% RH
9) Dimensions: 84 x 57 x 37.5mm
10) CE, RoHS certified
| Model |
| S-200-5 | S-200-12 | S-200-15 | S-200-24 | S-200-48 |
| Output | DC output Voltage | 5V | 12V | 15V | 24V | 48V |
| Voltage tolerance | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% |
| Rated Current | 40A | 16.7A | 13.3A | 8.3A | 4.2A |
| Related Power | 200w | 200w | 200w | 200w | 200w |
| Wave&Noise | 180mVp-p | 180mVp-p | 180mVp-p | 240mVp-p | 240mVp-p |
| Adjustable range for DC Voltage | ±10% | ±10% | ±10% | ±10% | ±10% |
| Set up,rise,hold up time | 200ms 100ms 20ms |
| Input | Voltage Range | 85 ~132VAC 170-264VAC 47-63HZ 240-370VDC |
| Input Current | 2.4A/115VAC 1.2A/230VAC |
| Efficiency | 82% | 82% | 84% | 85%% | 87% |
| AC inrush current | Cold start current 30A/115V 60A/230VAC |
| Leakage current | <0.5mA/240VAC |
| Protection | Overload | Related output power 105-150% start overload protection |
| Protection type: cutoff output, recovery after restart power |
| Over voltage | 5.75V-6.75V | 13.8V-16.2V | 17.2V-20.2V | 27.6V-32.4V | 55V-64.8V |
| Hiccup mode,recovers automatically after fault condition |
| Environment | Working temp humidity | -10~+60°C 20%~90%RH |
| Stor temp, humidity | -20~+85°C 20%~90%RH Non-condensing |
| Safety | Withstand voltage | I/P-O/P:1.5KVAC 1min |
| I/P-FG:1.5KVAC 1min |
| O/P-FG:0.5KVAC 1min |
| Standard | Safety standard | Fit UL1012 |
| Refer | Design refer to GB4943,UL60950,EN60950 |
| EMC standard | Design refer to GB9254,EN55022 Class A |
| Size | size | L199*W110*H50mm |
| Package | 0.85kg, 20pcs/17kg |
