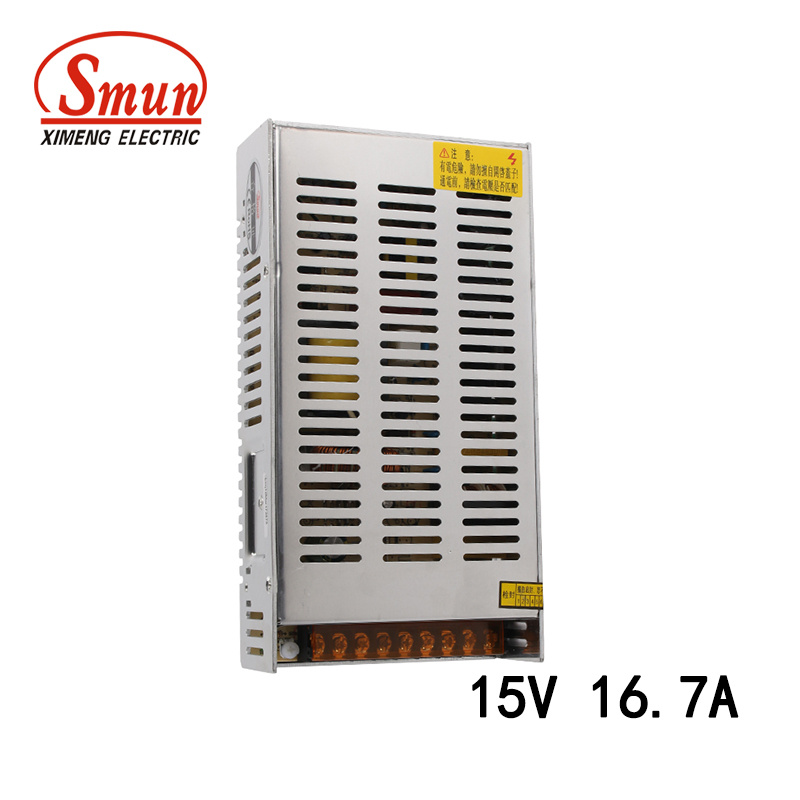

| Prod Model: |
S-250-15 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
S-250-15 |
| Power: |
250W |
| Output: |
15VDC 16.7A |
| Input: |
85-264VAC 240-370VDC |
| Size: |
215*115*50mm |
| Weight: |
0.95kg |
| Package: |
16PCS/16kg |
| DC Adjustable: |
10% |
| Safety Stadard: |
En60950 UL60950 GB4943 |
| Customized: |
Available |
| Output Type: |
Single |
| Warranty: |
2 Years |
| Output Power: |
201 - 300W |
| Input Voltage: |
220V |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Separate-excited Switching Power Supply |
| Voltage Regulating Mode: |
Frequency Modulation Type |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
CE CCC RoHS |
| Brand: |
Smun |
Product Description
1. Code
SIZE: 215*115*50MM
S-250-12: 12V 0-20A 250W Single output constant voltage switching power supply
S-250-15: 15v, 0-15a2500W Single output constant voltage switching power supply
S-250-24: 24v 0-10a 250 W Single output constant voltage switching power supply
S-250-48: 48v 0-5a 250 W Single output constant voltage switching power supply
2. Specification
1)AC input voltage range: 85-132vac/170-264vac 47-63hz 240-370vdc
2)input current: 5A/230V2.5a/230v
3: AC inrush current: 25A/115V50A/230V
4: Leakage current: <3.5mA/240VAC
5: DC adjustable range: ± 10% rated output voltage
6: Over load protection: 105-150%cut down output, auto-recovery
7: Over-voltage protection: 115-135%
8: Set uo, rise, hold up time: 200ms, 100ms 30ms
9: Withstand voltage: I/P-O/P: 1.5KVAC 1Minutes
I/P-FG: 1.5KVAC 1MInutes
O/P-FG: 0.5VAC 1minutes
10: Working temperature: -10~+60° C, 20-90%RH
11: Weight/packing: 0.95kg, 16pcs/15.2kg
| Model |
| S-250-12 | S-250-15 | S-250-24 | S-250-48 |
| Output | DC output Voltage | 12V | 15V | 24V | 48V |
| Voltage tolerance | ±1.0% | ±1.0% | ±1.0% | ±1.0% |
| Rated Current | 20A | 15A | 10A | 5.2A |
| Related Power | 250w | 250w | 250w | 250w |
| Wave&Noise | 120mVp-p | 120mVp-p | 120mVp-p | 200mVp-p |
| Adjustable range for DC Voltage | ±10% | ±10% | ±10% | ±10% |
| Set up,rise,hold up time | 200ms 100ms 30ms |
| Input | Voltage Range | 85 ~132VAC 170-264VAC 47-63HZ 240-370VDC |
| Input Current | 4A/115VAC 2A/230VAC |
| Efficiency | 79% | 80% | 81% | 82% |
| AC inrush current | Cold start current 15A/115V 30A /230VAC |
| Leakage current | <0.5mA/240VAC |
| Protection | Overload | Related output power 105-150% start overload protection |
| Protection type: cutoff output, recovery after restart power |
| Over voltage | 13.8V-16.2V | 17.2V-20.2V | 27.6V-32.4V | 55V-64.8V |
| Hiccup mode,recovers automatically after fault condition |
| Environment | Working temp humidity | -10~+60°C 20%~90%RH |
| Stor temp, humidity | -20~+85°C 20%~90%RH Non-condensing |
| Safety | Withstand voltage | I/P-O/P:1.5KVAC 1min |
| I/P-FG:1.5KVAC 1min |
| O/P-FG:0.5KVAC 1min |
| Standard | Safety standard | Fit UL1012 |
| Refer | Design refer to GB4943,UL60950,EN60950 |
| EMC standard | Design refer to GB9254,EN55022 Class A |
| Size | size | L215*W115*H50mm |
| Package | 0.95kg, 16pcs/16kg |
