Zhejiang Ximeng Electronic Technology Co., Ltd. >> Smun S-350-5 250W 5V 50A AC-DC Power Supply SMPS

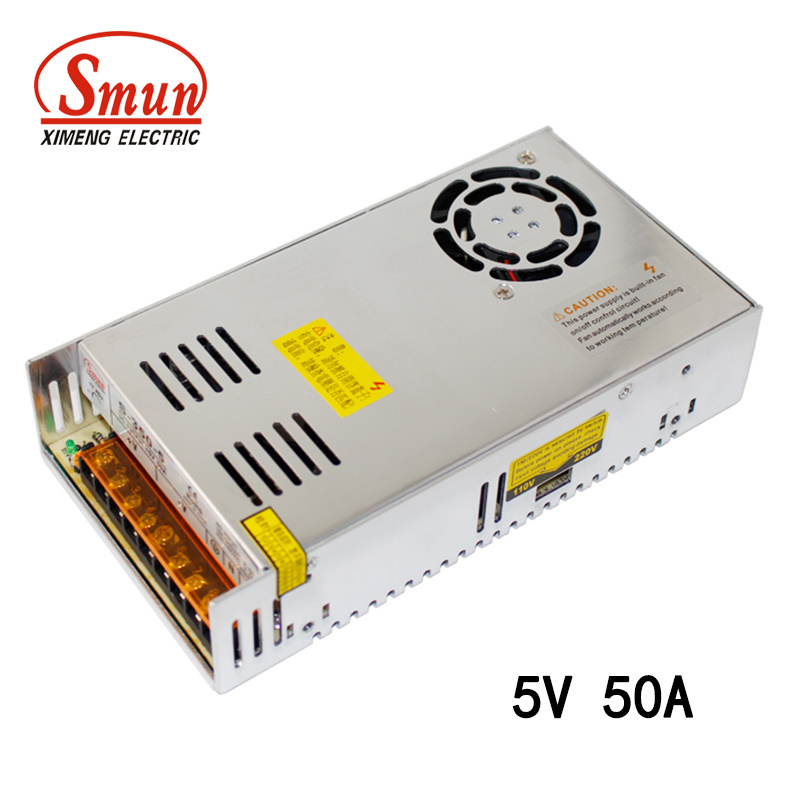

Smun S-350-5 250W 5V 50A AC-DC Power Supply SMPS

Smun S-350-5 250W 5V 50A AC-DC Power Supply SMPS
Price: US $ 10.8-16.5/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: S-350-5
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Name: 250W 5VDC 50A Switch Power Supply
Power: 250W
Output: 5VDC 50A
Input: 90-260VAC 240-370VDC
Size: 215*115*50mm
Weight: 1.0kg
Package: 16PCS/18kg
Material: PCB+ Steel Box
Sample: Available
Customized: Available
Output Type: Single
Warranty: 2 Years
Output Power: 301 - 400W
Connection Mode: Parallel Switching Power Supply
Starting Mode: Self-excited Switching Power Supply
Voltage Regulating Mode: Width Modulation Type
Power Supplying System: Terminal Power Distribution Equipment
Certification: CCC
Input Voltage: 110VAC/220VAC
Brand: Smun

Product Description

250W 5VDC 50A Switch Power Supply/SMPS (S-350-5)
Note:We are factory,customized is available.



S-350W Single output switching power supply

Model NO.

OUTPUT

Tolerance

range

efficiency
S-350-55V,0-70A±2%150mV73%
S-350-1212V,0-29A±1%150mV74%
S-350-1515V,0-27A±1%150mV78%
S-350-2424V,0-23A±1%150mV81%
S-350-4848V,0-7.3A±1%240mV83%
AC input voltage range85-132VAC/170-264vac 47-63hz 240-370VDC
input current6.5A/110V 4A/230V
AC inrush current25A/115V 50A/230V
Leakage current<3.5mA/240VAC
DC adjustable range±10% rated output voltage
over load protection105-150%cut down output, auto-recovery
over-voltage protection115-135%
set up, rise,hold up time: 2000ms,50ms 20ms
withstand voltage: I/P-O/P:1.5KVAC 1Minutes
I/P-FG:1.5KVAC 1MInutes
O/P-FG:0.5VAC 1minutes
working temperature-10~+60°C,20-90%RH
weight/packing: 1.15kg,16pcs/21kg
Size215*115*50MM
certificateCE  ISO9000 ROHS
Warranty year1 year
ProtectionsShort circuit / Over load / Over voltage
Zhejiang Ximeng Electronic Technology Co., Ltd. specialized in designing R&D production and sale. We have Independent import and export rights. The main products are switching power supply, LED driver power supply, AC/DC adapter, Electrical plug&sockets, Indicator lamp, terminal blocks, cable glands and related wiring accessories, Push button switches, and so on. All products are exported by our company YUEQING XIMENG IMP&EXP. Co., Ltd.

Our company is a high-tech company specialized in designing. R&D. Production and sale, the products Switching Power Supply are with the characteristics of the low price, high efficiency, high reliability, long lifetime and so on. Our products are widely used in industrial automation field, indoor and outdoor LED lighting, LED lighting projects, communication, instrumentation, etc. Our Switching Power Supply is the ideal upgraded product to replace traditional controlling transformer. The design of this series of products is in accordance with such international standards as American UL1012, German TUVEN60950, IEC950, UL1950 and EC EMCLVD. Relying on high-quality imported components, advanced production techniques and perfect testing equipment, we create high-quality XIMENG products. XIMENG products sell well in domestic markets and in Europe and Southeast Asia. Our company focuses on innovating science and technology, wining a reputation with quality, and pursuing development with sincerity. We always update our equipment and create new products constantly, striving to follow the core mind of Science and Technology to improve life and supply wide customers with sincerity, high-quality products and highly efficient service. In order to thanks to the long-term support and the cooperation of customers at home and abroad, as well as develop new business field, our company warmly welcomes all the customers to come for instruction and discuss cooperation. Let us develop together and create our prosperous future!
